DataGrid Properties

Enables you to control accessibility behavior and alternative text for the widget.

For more information on using accessibility features in your app, refer the Accessibility appendix in the Quantum Application Design Guidelines Guide.

Syntax

accessibilityConfig

Type

JSON Object

Read/Write

Read + Write

Remarks

• The accessibilityConfig property is enabled for all the widgets which are supported under the Flex Layout.

NOTE: From Quantum Visualizer V9 SP2 GA version, you can provide i18n keys as values to all the attributes used inside the accessibilityConfig property. Values provided in the i18n keys take precedence over values provided in a11yLabel, a11yValue, and a11yHint fields.

The accessibilityConfig property is a JavaScript object which can contain the following key-value pairs.

Accessibility in Components

• In a FlexForm containing direct widgets and components, while providing values to the aria-labelledby and the aria-describedby properties for widgets directly inside the FlexForm, you must not provide the Id of the widgets inside the components.
• In a component containing direct widgets and child components, while providing values to the aria-labelledby and the aria-describedby properties for widgets directly inside the component, you must not provide the Id of the widgets inside the child components.

Android limitations

• If the results of the concatenation of a11y fields result in an empty string, then accessibilityConfig is ignored and the text that is on widget is read out.
• The soft keypad does not gain accessibility focus during the right/left swipe gesture when the keypad appears.
• The i18n key support in accessibilityConfig property depends on the languages supported by the TTS(Text-To-Speech) engine of the mobile device. If the TTS engine of the mobile device does not support a language, the text provided in the accessibilityConfig property is not read by the TTS engine.

Accessibility in Desktop Web Platform

• To use the accessibilityConfig property on the Desktop Web platform, ensure that you disable the Legacy JS Mode in the Project Settings > Responsive Web section.
• When accessibilityConfig property is configured for any widget, the tabIndex attribute is added automatically to the accessibilityConfig property.
• The behavior of accessibility depends on the Web browser, Web browser version, Voice Over Assistant, and Voice Over Assistant version.
• Currently Desktop web applications support only a few ARIA tags. To achieve more accessibility features, use the attribute a11yARIA. The tags added to a11yARIA will be added to the DOM.

• The tagName attribute supports the following tags in the Label Segment, FlexContainer, and FlexScrollContainer widgets:

  Widget Name	Supported tags	Example	Remarks
  Label	label(default) div span h1, h2, h3, h4, h5, h6	The following example shows how to assign the tags to the Label widget. /*Sample code to assign the span tag to the Label widget*/ "accessibilityConfig": { "tagName": "span" }
  Segment	ul(default) ol div table dl	The following example uses the role and tagName attributes to modify the HTML tag of Segment widget. /*Sample code to assign the div tag to the Segment widget*/ "accessibilityConfig": { "a11yARIA": { "role": "grid" }, "tagName": "div" }	You can assign values to the role attribute inside the a11yARIA only when you modify the tag to div. You can only assign the following values to the role attribute of a Segment widget: grid table and button.
  FlexContainer	div (default) th td tr dt dd	The following example uses the role and tagName attributes to modify the HTML tag of a FlexContainer widget. /*Sample code to assign the td tag to a FlexContainer widget*/ var flx = new kony.ui.FlexContainer({ "accessibilityConfig": { "tagName": "td" } });	This is a read-only property. When you specify the value as tr for the tagName property of a FlexContainer widget, ensure that you use the Flex Horizontal Layout Type. The height of the FlexContainer widget is inherited from the height of the child widgets present inside it.
  FlexScrollContainer	div (default) th td dt dd	The following example uses the role and tagName attributes to modify the HTML tag of a FlexScrollContainer widget. /*Sample code to assign the td tag to a FlexScrollContainer widget*/ var flx = new kony.ui.FlexScrollContainer({ "accessibilityConfig": { "tagName": "td" } });	This is a read-only property.

Example 1

This example uses the Login scenario to explain how to provide accessibility to the usernameText TextBox widget inside the frmLogin Form. The frmLogin form also contains the usernameLbl Label widget (with the text Username) and rulesLbl Label widget(that contains the username policies).

//This is a generic property that is applicable for various widgets.
/*Here, we have shown how to use the accessibilityConfig Property for a TextBox widget.You need to make a corresponding use of the accessibilityConfig property for other applicable widgets.*/
frmLogin.usernameText.accessibilityConfig = {
  "a11yLabel": "Label",
  "a11yValue": "Value",
  "a11yHint": "Hint",
  "a11yARIA": {
    "tabindex" /* Integer with no floating/decimal numbers*/: 1,
    "role" /*Prescribed string value as per wcag guidelines*/: "main",
    "aria-labelledby": "usernameLbl"
    "aria-describedby": "rulesLbl"
  }
};

Example 2

This example creates a Label widget (lblSpan) inside the frmSample FlexForm. This sample code uses the tagName property to change the HTML tag of the lblSpan Label from label tag to span tag.

/*Here, we have shown how to use the accessibilityConfig Property for a Label widget. You need to make a corresponding use of the accessibilityConfig property for in Segment widget as well.*/
var lblspan = new kony.ui.Label({
  "accessibilityConfig": {
    "tagName": "span"
  },
  "id": "lblspan",
  "isVisible": true,
  "left": "460dp",
  "skin": "CopyslLabel0b3521e51e03b44",
  "text": "span tag",
  "top": "92dp",
  "width": kony.flex.USE_PREFFERED_SIZE,
  "zIndex": 1
}, {
  "contentAlignment": constants.CONTENT_ALIGN_MIDDLE_LEFT,
  "padding": [0, 0, 0, 0],
  "paddingInPixel": false
}, {});

frmSample.add(lblspan);

Example 3

This example uses the button widget to implement internationalization in accessibilityConfig property, but the principle remains the same for all widgets.

/*Sample code to implement internationalization in accessibilityConfig property in Native platform.*/

Form1.myButton.accessibilityConfig = {
    "a11yLabel": kony.i18n.getLocalizedString("key1")
};
/*Sample code to implement internationalization in accessibilityConfig property in Desktop Web platform.*/

Form1.myButton.accessibilityConfig = {
    "a11yLabel": "kony.i18n.getLocalizedString(\"key3\")"
};

Platform Availability

• Available in the IDE
• iOS
• Android
• Desktop Web

Specifies the look and feel of a widget when the widget is in focus.
When the activeStateSkin property is configured for a widget, the activeStateSkin is applied to the widget when a user focuses on the widget (either by using the TAB key, mouse-click, or by using the setActive API programmatically).

Syntax

activeStateSkin

Type

String

Read/Write

Read + Write

Remarks

If a widget has the activeStateSkin, focusSkin, and the hoverSkin properties configured, the skins are applied based on the mouse-action performed on the widget:

• The focusSkin is applied on the mouse-down action on the widget.
• The hoverSkin is applied on the mouse-over action on the widget.
• The activeStateSkin is applied on the mouse-release action on the widget.

Example

Setting the activeStateSkin property on an existing widget

//The Active State Skin is a skin created under the Skins tab

frmButton.myButton.activeStateSkin= 'btnActiveStateSkin';

Platform Availability

• Available in the IDE
• Available on the Responsive Web platform

Specifies the anchor point of the widget bounds rectangle using the widget's coordinate space.

Syntax

anchorPoint

Type

JSObject

Read/Write

Read + Write

Remarks

• The value for this property is a JavaScript dictionary object with the keys "x" and "y". The values for the "x" and "y" keys are floating-point numbers ranging from 0 to 1. All geometric manipulations to the widget occur about the specified point. For example, applying a rotation transform to a widget with the default anchor point causes the widget to rotate around its center.
• The default value for this property is center ( {"x":0.5, "y":0.5} ), that represents the center of the widgets bounds rectangle. The behavior is undefined if the values are outside the range zero (0) to one (1).

Example

Form1.widget1.anchorPoint = {
    "x": 0.5,
    "y": 0.5
};

Platform Availability

• iOS
• Android

This property determines the bottom edge of the widget and is measured from the bottom bounds of the parent container.

The bottom property determines the position of the bottom edge of the widget’s bounding box. The value may be set using DP (Device Independent Pixels), Percentage, or Pixels. In freeform layout, the distance is measured from the bottom edge of the parent container. In flow-vertical layout, the value is ignored. In flow-horizontal layout, the value is ignored.

The bottom property is used only if the Height property is not provided.

Syntax

bottom

Type

String

Read/Write

Read + Write

Remarks

• The property determines the bottom edge of the widget and is measured from the bottom bounds of the parent container.
• If the layoutType is set as kony.flex.FLOW_VERTICAL, the bottom property is measured from the top edge of bottom sibling widget. The vertical space between two widgets is measured from bottom of the top sibling widget and the top of the bottom sibling widget.

Example

//Sample code to set the bottom property for widgets by using DP, Percentage and Pixels.
frmHome.widgetID.bottom = "50dp";

frmHome.widgetID.bottom = "10%";

frmHome.widgetID.bottom = "10px";

Platform Availability

• Available in the IDE
• iOS
• Android
• Desktop Web

This property determines the center of a widget measured from the left bounds of the parent container.

The centerX property determines the horizontal center of the widget’s bounding box. The value may be set using DP (Device Independent Pixels), Percentage, or Pixels. In freeform layout, the distance is measured from the left edge of the parent container. In flow-vertical layout, the distance is measured from the left edge of the parent container. In flow-horizontal layout, the distance is measured from the right edge of the previous sibling widget in the hierarchy.

Syntax

centerX

Type

String

Read/Write

Read + Write

Remarks

If the layoutType is set as kony.flex.FLOW_HORIZONTAL, the centerX property is measured from right edge of the left sibling widget.

Example

//Sample code to set the centerX property for widgets by using DP, Percentage and Pixels.
frmHome.widgetID.centerX = "50dp";

frmHome.widgetID.centerX = "10%";

frmHome.widgetID.centerX = "10px";

Platform Availability

• Available in the IDE
• iOS
• Android
• Desktop Web

This property determines the center of a widget measured from the top bounds of the parent container.

The centerY property determines the vertical center of the widget’s bounding box. The value may be set using DP (Device Independent Pixels), Percentage, or Pixels. In freeform layout, the distance is measured from the top edge of the parent container. In flow-horizontal layout, the distance is measured from the top edge of the parent container. In flow-vertical layout, the distance is measured from the bottom edge of the previous sibling widget in the hierarchy.

Syntax

centerY

Type

String

Read/Write

Read + Write

Remarks

If the layoutType is set as kony.flex.FLOW_VERTICAL, the centerY property is measured from bottom edge of the top sibling widget.

Example

//Sample code to set the centerY property for widgets by using DP, Percentage and Pixels.
frmHome.widgetID.centerY = "50dp";

frmHome.widgetID.centerY = "10%";

frmHome.widgetID.centerY = "10px";

Platform Availability

• Available in the IDE
• iOS
• Android
• Desktop Web

It is a property to define the number of columns and the type of each column and their meta properties. The number of elements in the Array defines the number of columns.

Syntax

columnHeadersConfig

Type

Array of Objects

Read/Write

No

Remarks

The column JSObject must contain the properties from following column details properties.

• columnID [Mandatory] - A unique string identifier to represent a column.
• columnType[Mandatory] - Specifies the type of the column. Following are the available options:




  • DATAGRID_COLUMN_TYPE_TEXT (default)
  • DATAGRID_COLUMN_TYPE_IMAGE
  • DATAGRID_COLUMN_TYPE_TEMPLATE (supported on desktop web only)
• columnHeaderText [Mandatory] - The text string that is displayed as header of column.
• columnHeaderTemplate [Mandatory] - The template box reference (a composition of widgets in a HBox or VBox) to be set as header. This property overrides columnHeaderText (supported on desktop web only.)
• columnDataTemplate [Mandatory]- The template box reference to be used to create a row cell for this column (supported on desktop web only.)
• columnWidthInPercentage [Mandatory] - The amount of width in percentage to be occupied from the widget space. The sum of all the values in each column should be exactly 100% otherwise the behavior is undefined.
• isColumnSortable [Optional]- A Boolean property to specify whether the column must be sorted. If set to true, the rows are reordered as per the sorting order.
• columnOnClick [Optional]- The event callback is invoked by the platform when a column is clicked.
• columnContentAlignment [Optional]- Specifies the alignment of the text or image within a column.

  The available options are:
  • CONTENT_ALIGN_TOP_LEFT
  • CONTENT_ALIGN_TOP_CENTER
  • CONTENT_ALIGN_TOP_RIGHT
  • CONTENT_ALIGN_MIDDLE_LEFT
  • CONTENT_ALIGN_CENTER (default)
  • CONTENT_ALIGN_MIDDLE_RIGHT
  • CONTENT_ALIGN_BOTTOM_LEFT
  • CONTENT_ALIGN_BOTTOM_CENTER
  • CONTENT_ALIGN_BOTTOM_RIGHT

Example

//Sample code to set the columnHeadersConfig property for a DataGrid widget.

var dgridBasic = {
    id: "dgrid",
    info: {
        key: "This is datagrid"
    },
    isVisible: true,
    headerSkin: "hSkin",
    rowNormalSkin: "rNSkin",
    rowFocusSkin: "rFSkin",
    rowAlternateSkin: "rASkin",
    showColumnHeaders: true,
    columnHeadersConfig: [{
        columnID: "col1",
        columnType: constants.DATAGRID_COLUMN_TYPE_TEXT,
        columnHeaderText: "Account Type",
        columnWidthInPercentage: 40
    }, {
        columnID: "col2",
        columnType: constants.DATAGRID_COLUMN_TYPE_TEXT,
        columnHeaderText: "Account Number",
        columnWidthInPercentage: 30
    }, {
        columnID: "col3",
        columnType: constants.DATAGRID_COLUMN_TYPE_TEXT,
        columnHeaderText: "Balance",
        columnWidthInPercentage: 30
    }],
    isMultiSelect: true,
    data: [{
        col1: "Checking",
        col2: "490",
        col3: "$400",
        metainfo: {
            skin: "rowskin1",
            col1_skin: "colskin1"
        }
    }, {
        col1: "Checking",
        col2: "494",
        col3: "$2000.34"
    }, {
        col1: "Savings",
        col2: "567",
        col3: "$4000"
    }]
};

var dgridLayout = {
    widgetAlignment: constants.WIDGET_ALIGN_TOP_LEFT,
    contentAlignment: constants.CONTENT_ALIGN_CENTER,
    containerWeight: 99,
    padding: [5, 5, 5, 5],
    margin: [5, 5, 5, 5]
};

var dgridPSP = {};

//Creating the dataGrid.
var dgrid = new kony.ui.DataGrid(dgridBasic, dgridLayout, dgridPSP);

Platform Availability

• Available in the IDE.
• Available on all platforms.

Specifies the container height of the datagrid in percentage (%). Height is calculated with respect to the width of the datagrid.

Syntax

containerHeight

Type

Number

Read/Write

Read only

Example

//Sample code to read the containerHeight property for a DataGrid Widget.
var contHeight=frmDataGrid.myDataGrid.containerHeight;
kony.print("The height of the container of the DataGrid widget is:"+contHeight);

Platform Availability

• Available in the IDE.
• This property is available on Desktop Web.

Specifies the container height of the datagrid in pixels.

Syntax

containerHeightInPixel

Type

Number

Read/Write

Read only

Example

//Sample code to read the containerHeightInPixel eight property for a DataGrid Widget.
var contHeight = frmDataGrid.myDataGrid.containerHeightInPixel;
kony.print("The height of the container in Pixels of the DataGrid widget is:" + contHeight);

Platform Availability

• Available in the IDE.
• This property is available on Desktop Web.

In Desktop Web applications, when you hover the mouse over any widget, a mouse pointer appears. Using the cursorType property in Visualizer, you can specify the type of the mouse pointer.

Syntax

cursorType

Type

String.

You must provide valid CSS cursor value such as wait, grab, help, etc. to the cursorType property.

Read/Write

Read + Write

Remarks

To add the cursorType property using Quantum Visualizer in a Desktop Web application, follow these steps.

1. In Quantum Visualizer, open the Desktop Web application. From the Project explorer, expand Responsive Web/ Desktop> Forms and select the form to which you need to make the changes.
2. On the canvas, select the widget for which you want to specify the cursor type. For example, button.
3. From the Properties panel, navigate to the Skin tab > Hover Skin tab.
   You will find that the details of the hover skin is not enabled here.
4. Check the Enable option to add a hover skin to your widget.
   The details and configurations of the hover skin is enabled.
5. Under the General section, for the Platform option, click the ellipsis icon.
   The Fork Skin window appears.
6. In the Fork Skin window, for Desktop, check under HTML5 SPA.
7. Click Ok. You have successfully forked your hover skin for Desktop Web application.
   You can see that the Cursor Type property has been added under the General section.
8. Select a value from the drop-down list to set the Cursor Type for the widget.

Example



//This is a generic property and is applicable for many widgets.

/*The example provided is for the Button widget. Make the required changes in the example while using other widgets.*/

frmButton.myButton.cursorType = "wait";

Platform Availability

• Available in IDE
• Desktop Web

Array of JSObjects which represents the actual data to be rendered in each row. Each element in array represents one row data.

Syntax

data

Type

Array

Read/Write

Read + Write

Remarks

The row data should be represented as a pair of "columnID" defined from columnHeaderConfig and its value as per the type of the column.

• If column type is DATAGRID_COLUMN_TYPE_TEXT, the value should be of String datatype.
• If column type is DATAGRID_COLUMN_TYPE_IMAGE, the value should be of String datatype representing the image filename or url.
• If column type is DATAGRID_COLUMN_TYPE_TEMPLATE, the value should be a JSObject with values assigning to each widgetid.

/*Example data for three column datagrid with 3 columns as
columnid1 (TEXT type), columnid2(IMAGE type), columnid3(TEXT type): */
data = [{
    columnid1: "mytext",
    columnid2: "myimage.png",
    columnid3: "row one"
}, {
    columnid1: "mytext2",
    columnid2: "myimage2.png",
    columnid3: "row two"
}, {
    columnid1: "mytext3",
    columnid2: "myimage.png",
    columnid3: "row three"
}];
//adding 3 rows
}

/*Example for column with type template:
columnid1 (TEXT type), columnid2(IMAGE type), columnid3(TEMPLATE type)
Assuming the template has one label widget with id "labelwidgetid"
and one image widget with id "imagewidgetid",
the data construct should be as follows:*/
data = [{
    columnid1: "mytext",
    columnid2: "myimage.png",
    columnid3: {
        labelwidgetid: {
            text: "labeltext",
            skin: "blueskin"
        },
        imagewidgetid: {
            src: "image.png"
        }
    }
}, {
    columnid1: "mytext2",
    columnid2: "myimage2.png",
    columnid3: {
        labelwidgetid: {
            text: "labeltext",
            skin: "blueskin"
        },
        imagewidgetid: {
            src: "image.png"
        }
    }
}]; //adding 2 rows

NOTE: DATAGRID_COLUMN_TYPE_TEMPLATE is supported only in desktop web.

To specify the data within the columns and rows,

1. Click the Ellipsis () button against the Master Data property.The Data Grid Editor window appears.

   NOTE: You cannot specify data in the Rows tab unless you specify the data in the Column tab.

2. In the Column tab you can specify the following for each column:


   1. ID: This is the unique identifier of a column.
   2. Header Type: Specifies the header type as grid template or text for a column.
   3. Header: Specifies the template name for a column
   4. Header Data: Specifies the property values for the widgets defined in the template. For example, if your template has a Label widget and an Image widget, then you can update Text and Text i18n Key properties for Label widget and Source property for Image Widget.
   5. Column Type: Specifies the column to display a template or text.
   6. Column: Specifies the template name for a column.
   7. Width in percentage: Specifies the width of the column in percentage.
   8. Sort: Specifies if sorting is allowed for the column.
   9. Column alignment: Specifies the alignment of the content in each column. The content can be aligned as, top-left, top-center, top-right, middle-left, middle-center, middle-right, bottom-left, bottom-center, or bottom-right.
   10. OnClick event: Specifies the event that takes place when you click on the header of a column. To specify an Onclick event for a column, click the ellipses button for that subsequent column.
3. In the Rows tab, all the column headers that you specify in the Column tab appear as the headers for rows. You can enter the required data for each row.


NOTE: After specifying the columns and rows, you can alternatively choose to specify the data from the code using the DataGrid Methods instead of the data property.

Example

//Sample code to set the data property for a DataGrid widget.

frmDataGrid.myDataGrid.data = [{
 col1: "Checking",
 col2: "490",
 col3: "$400",
 metainfo: {
  skin: "rowskin1",
  col1_skin: "colskin1"
 }
}, {
 col1: "Checking",
 col2: "494",
 col3: "$2000.34"
}, {
 col1: "Savings",
 col2: "567",
 col3: "$4000"
}];

Platform Availability

• Available in the IDE.
• Available on all platforms

Specifies if headers are to be docked in the datagrid.

Syntax

dockingHeader

Type

Boolean

Read/Write

Read only

Remarks

The default for this property is false. If set to true, the headers are docked in the datagrid. If set to false, the headers are not docked in the datagrid.

Example

//Sample code to set the dockingHeader property for a DataGrid Widget.
 frmDataGrid.myDataGrid.dockingHeader=true;

Platform Availability

• Available in the IDE.
• This property is available on Desktop Web.

The enable property is used to control the actionability of the widgets. In a scenario where you want to display a widget but not invoke any action on the widget, configure the enable property to false to achieve it.

This is a constructor level property and applicable for all widgets in Quantum Visualizer.

Syntax

enable

Type

Boolean

Read/Write

Read + Write

Remarks

The default value of this property is true.

• When enable property is configured to true, the action associated with a widget can be invoked by the user in the application.
• When enable property is configured to false, the action associated with a widget cannot be invoked by the user in the application.

Example

//This is a generic property and is applicable for many widgets.

/*The example provided is for the Button widget. Make the changes required in the example while using other widgets.*/

frmButton.myBtn.enable= true;

Platform Availability

• Android
• iOS
• Desktop web

The property enables you to improve the performance of Positional Dimension Animations.

Syntax

enableCache

Type

Boolean

Read/Write

Read + Write

Remarks

The default value for this property is true.

NOTE: When the property is used, application consumes more memory. The usage of the property enables tradeoff between performance and visual quality of the content. Use the property cautiously.

Example

Form1.widgetID.enableCache = true;

Platform Availability

• Available in the IDE.
• Windows

Specifies if the scrollbars on the datagrid is to be displayed vertically or the default option is to be retained.

Syntax

enableScrollBar

Type

Number

Read/Write

Read only

Remarks

The available options are:

• DATAGRID_SCROLLBAR_NONE:  This is the default option. It specifies that no scrollbars are to be applied to datagrid.
• DATAGRID_SCROLLBAR_VERTICAL: Specifies that the scrollbars are to be displayed vertically.

Example

//Sample code to set the enableScrollBar property for a DataGrid Widget.
 frmDataGrid.myDataGrid.enableScrollBar=constants.DATAGRID_SCROLLBAR_VERTICAL;

Platform Availability

• Available in the IDE.
• This property is available on Desktop Web.

Specifies the height of the DataGrid based in percentage or in pixel. The percentage is calculated based on the height of the form.

Syntax

gridHeight

Type

Number

Read/Write

No

Remarks

There is not default value for this property.

Example

//Sample code to set the gridHeight property for a DataGrid Widget as eight.
 frmDataGrid.myDataGrid.gridHeight=8;

Platform Availability

• Not available in the IDE.
• Available on Desktop Web platform only.

Specifies the color of the grid line of the DataGrid. The color should be specified in the format of "RGBA" in hex. For example "FF224400".

Syntax

gridlineColor

Type

String

Read/Write

Write only

Remarks

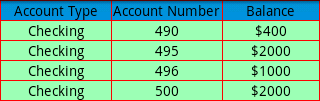

The following image illustrates the Gridline color applied to the DataGrid:

Example

//Sample code to set the gridlineColor property for a DataGrid Widget to Red.
 frmDataGrid.myDataGrid.gridlineColor="FF0044";

Platform Availability

• Available in the IDE.
• Android

This is a skin property. This property specifies the skin that must be applied to the Header row.

Syntax

headerSkin

Type

String

Read/Write

Read + Write

Example

//Sample code to set the headerSkin property for a DataGrid Widget.
 frmDataGrid.myDataGrid.headerSkin="hSkin";

Platform Availability

• Available in the IDE.
• Available on all platforms.

It determines the height of the widget and measured along the y-axis.

The height property determines the height of the widget’s bounding box. The value may be set using DP (Device Independent Pixels), Percentage, or Pixels. For supported widgets, the height may be derived from either the widget or container’s contents by setting the height to “preferred”.

Syntax

height

Type

Number, String, and Constant

Read/Write

Read + Write

Remarks

Following are the available measurement options:

• %: Specifies the values in percentage relative to the parent dimensions.
• px: Specifies the values in terms of device hardware pixels.
• dp: Specifies the values in terms of device independent pixels.
• default: Specifies the default value of the widget.
• kony.flex.USE_PREFERED_SIZE: When this option is specified, the layout uses preferred height of the widget as height and preferred size of the widget is determined by the widget and may varies between platforms.

Example

/*Sample code to set the height property for a datagrid widget by using DP, Percentage and Pixels.*/
frmHome.datagrid1.height="50dp";

frmHome.datagrid1. height="10%";

frmHome.datagrid1. height="10px";

Platform Availability

• Available in the IDE
• iOS
• Android

Specifies the look and feel of a widget when the cursor hovers on the widget.

Syntax

hoverSkin

Type

String

Read/Write

Read + Write

Example

//Sample code to set the hoverSkin property for a DataGrid Widget.
 frmDataGrid.myDataGrid.hoverSkin="hoSkin";

Platform Availability

• Available in the IDE.

id is a unique identifier of a DataGrid consisting of alpha numeric characters. Every DataGrid widget should have a unique id within a Form.

Syntax

id

Type

String - [Mandatory]

Read/Write

Read only

Example

//Defining the properties for dataGrid with ID :"dgrid".
var dgridBasic = {
    id: "dgrid",
    info: {
        key: "This is datagrid"
    },
    isVisible: true,
    headerSkin: "hSkin",
    rowNormalSkin: "rNSkin",
    rowFocusSkin: "rFSkin",
    rowAlternateSkin: "rASkin",
    showColumnHeaders: true,
    columnHeadersConfig: [{
        columnID: "col1",
        columnType: constants.DATAGRID_COLUMN_TYPE_TEXT,
        columnHeaderText: "Account Type",
        columnWidthInPercentage: 40
    }, {
        columnID: "col2",
        columnType: constants.DATAGRID_COLUMN_TYPE_TEXT,
        columnHeaderText: "Account Number",
        columnWidthInPercentage: 30
    }, {
        columnID: "col3",
        columnType: constants.DATAGRID_COLUMN_TYPE_TEXT,
        columnHeaderText: "Balance",
        columnWidthInPercentage: 30
    }],
    isMultiSelect: true,
    data: [{
        col1: "Checking",
        col2: "490",
        col3: "$400",
        metainfo: {
            skin: "rowskin1",
            col1_skin: "colskin1"
        }
    }, {
        col1: "Checking",
        col2: "494",
        col3: "$2000.34"
    }, {
        col1: "Savings",
        col2: "567",
        col3: "$4000"
    }]
};

var dgridLayout = {
    widgetAlignment: constants.WIDGET_ALIGN_TOP_LEFT,
    contentAlignment: constants.CONTENT_ALIGN_CENTER,
    containerWeight: 99,
    padding: [5, 5, 5, 5],
    margin: [5, 5, 5, 5]
};

var dgridPSP = {};

//Creating the dataGrid.
var dgrid = new kony.ui.DataGrid(dgridBasic, dgridLayout, dgridPSP);

Platform Availability

• Available in the IDE.
• Available on all platforms.

A custom JSObject with the key value pairs that a developer can use to store the context with the widget. This will help in avoiding the globals to most part of the programming.

Syntax

info

Type

JSObject

Read/Write

Read + Write

Remarks

This is a non-Constructor property. You cannot set this property through widget constructor. But you can read and write data to it.

Info property can hold any JSObject. After assigning the JSObject to info property, the JSObject should not be modified. For example,

var inf = {
    a: 'hello'
};
widget.info = inf; //works
widget.info.a = 'hello world';
/*This will not update the widget info a property to Hello world.
widget.info.a will have old value as hello.*/

Example

//Sample code to set info property for a DataGrid widget.

frmDataGrid.myDataGrid.info = {
    key: "This is datagrid"
};

//Reading the info of the Camera widget.
kony.print("DataGrid widget info ::" +frmDataGrid.myDataGrid.info);

Platform Availability

• Not available in the IDE.
• Available on all platforms.

An option to make the datagrid as multi selectable row. The selected rows are indicated by highlighting the rows by focus skin.

Syntax

isMultiSelect

Type

Boolean

Read/Write

Read + Write

Remarks

The default value for this property is false. If set to true, multiple rows are selected. If set to false, multiple rows are not selected.

NOTE: Ensure to specify rowFocusSkin, otherwise the user won't be able to visually identify the selected rows.

Example

//Sample code to enable isMultiSelect property for a DataGrid Widget.
 frmDataGrid.myDataGrid.isMultiSelect=true;

Platform Availability

• Available in the IDE.
• Available on all platforms.

This property controls the visibility of a widget on the form.

Syntax

isVisible

Type

Boolean

Read/Write

Read + Write

Remarks

The default value for this property is true. If set to false, the widget is not displayed. If set to true, the widget is displayed.

NOTE: You can set the visibility of a widget dynamically from code using the setVisibility method.

Example

//Sample code to enable isVisible property for a DataGrid Widget.
 frmDataGrid.myDataGrid.isVisible=true;

Platform Availability

• Available in the IDE.
• Available on all platforms.

This property determines the lower left corner edge of the widget and is measured from the left bounds of the parent container.

The left property determines the position of the left edge of the widget’s bounding box. The value may be set using DP (Device Independent Pixels), Percentage, or Pixels. In freeform layout, the distance is measured from the left edge of the parent container. In flow-vertical layout, the distance is measured from the left edge of the parent container. In flow-horizontal layout, the distance is measured from the right edge of the previous sibling widget in the hierarchy.

Syntax

left

Type

String

Read/Write

Read + Write

Remarks

If the layoutType is set as kony.flex.FLOW_HORIZONTAL, the left property is measured from right edge of the left sibling widget.

Example

//Sample code to set the left property for widgets by using DP, Percentage and Pixels.
frmHome.widgetID.left = "50dp";

frmHome.widgetID.left = "10%";

frmHome.widgetID.left = "10px";

Platform Availability

• Available in the IDE
• iOS
• Android
• Desktop Web

This property specifies the maximum height of the widget and is applicable only when the height property is not specified.

The maxHeight property determines the maximum height of the widget’s bounding box. The value may be set using DP (Device Independent Pixels), Percentage, or Pixels. The maxHeight value overrides the preferred, or “autogrow” height, if the maxHeight is less than the derived content height of the widget.

Syntax

maxHeight

Type

Number

Read/Write

Read + Write

Example

//Sample code to set the maxHeight property for widgets by using DP, Percentage and Pixels.
frmHome.widgetID.maxHeight = "50dp";

frmHome.widgetID.maxHeight = "10%";

frmHome.widgetID.maxHeight = "10px";

Platform Availability

• Available in the IDE
• iOS
• Android
• Desktop Web

This property specifies the maximum width of the widget and is applicable only when the width property is not specified.

The Width property determines the maximum width of the widget’s bounding box. The value may be set using DP (Device Independent Pixels), Percentage, or Pixels. The maxWidth value overrides the preferred, or “autogrow” width, if the maxWidth is less than the derived content width of the widget.

Syntax

maxWidth

Type

Number

Read/Write

Read + Write

Example

//Sample code to set the maxWidth property for widgets by using DP, Percentage and Pixels.
frmHome.widgetID.maxWidth = "50dp";

frmHome.widgetID.maxWidth = "10%";

frmHome.widgetID.maxWidth = "10px";

Platform Availability

• Available in the IDE
• iOS
• Android
• Desktop Web

This property specifies the minimum height of the widget and is applicable only when the height property is not specified.

The minHeight property determines the minimum height of the widget’s bounding box. The value may be set using DP (Device Independent Pixels), Percentage, or Pixels. The minHeight value overrides the preferred, or “autogrow” height, if the minHeight is larger than the derived content height of the widget.

Syntax

minHeight

Type

Number

Read/Write

Read + Write

Example

//Sample code to set the minHeight property for widgets by using DP, Percentage and Pixels.
frmHome.widgetID.minHeight = "50dp";

frmHome.widgetID.minHeight = "10%";

frmHome.widgetID.minHeight = "10px";

Platform Availability

• Available in the IDE
• iOS
• Android
• Desktop Web

This property specifies the minimum width of the widget and is applicable only when the width property is not specified.

The minWidth property determines the minimum width of the widget’s bounding box. The value may be set using DP (Device Independent Pixels), Percentage, or Pixels. The minWidth value overrides the preferred, or “autogrow” width, if the minWidth is larger than the derived content width of the widget.

Syntax

minWidth

Type

Number

Read/Write

Read only

Example

//Sample code to set the minWidth property for widgets by using DP, Percentage and Pixels.
frmHome.widgetID.minWidth = "50dp";

frmHome.widgetID.minWidth = "10%";

frmHome.widgetID.minWidth = "10px";

Platform Availability

• Available in the IDE
• iOS
• Android
• Desktop Web

Specifies the opacity of the widget. The value of this property must be in the range 0.0 (transparent) to 1.0 (opaque). Any values outside this range are fixed to the nearest minimum or maximum value.

Specifies the opacity of the widget. Valid opacity values range from 0.0 (transparent), to 1.0 (opaque). Values set to less than zero will default to zero. Values more than 1.0 will default to 1. Interaction events set on a transparent widget will still be fired. To disable the events, also set the “isVisible” property to “false”.

Syntax

opacity

Type

Number

Read/Write

Read + Write

Remarks

• This property has more priority compared to the values coming from the configured skin.

Example

//Sample code to make the widget transparent by using the opacity property.
frmHome.widgetID.opacity = 0;

//Sample code to make the widget opaque by using the opacity property.
frmHome.widgetID.opacity = 1;

Platform Availability

• Not available in the IDE.
• iOS
• Android
• Desktop Web

Helps you access the parent of the widget. If the widget is not part of the widget hierarchy, the parent property returns null.

Syntax

parent

Read/Write

Read only

Remarks

• The property works for all the widgets inside a FlexForm, FlexContainer or FlexScrollContainer.

Example

function func() {

    kony.print("The parent of the widget" + JSON.stringify(Form1.widgetID.parent));

}

Platform Availability

• Not available in the IDE
• iOS
• Android
• Desktop Web

This property is used to retain the content alignment property value, as it was defined.

NOTE: Locale-level configurations take priority when invalid values are given to this property, or if it is not defined.

The mirroring widget layout properties should be defined as follows.

function getIsFlexPositionalShouldMirror(widgetRetainFlexPositionPropertiesValue) {
    return (isI18nLayoutConfigEnabled &&
    localeLayoutConfig[defaultLocale]
    ["mirrorFlexPositionalProperties"] == true &&
    !widgetRetainFlexPositionPropertiesValue);
}

The following table illustrates how widgets consider Local flag and Widget flag values.

Syntax

retainContentAlignment

Type

Boolean

Read/Write

No (only during widget-construction time)

Example

//This is a generic property that is applicable for various widgets.


//Here, we have shown how to use the retainContentAlignment property for Button widget.
/*You need to make a corresponding use of the
retainContentAlignment property for other applicable widgets.*/
var btn = new kony.ui.Button({
    "focusSkin": "defBtnFocus",
    "height": "50dp",
    "id": "myButton",
    "isVisible": true,
    "left": "0dp",
    "skin": "defBtnNormal",
    "text": "text always from top left",
    "top": "0dp",
    "width": "260dp",
    "zIndex": 1
}, {
    "contentAlignment": constants.CONTENT_ALIGN_TOP_LEFT,
    "displayText": true,
    "padding": [0, 0, 0, 0],
    "paddingInPixel": false,
    "retainFlexPositionProperties": false,
    "retainContentAlignment": true
}, {});

Platform Availability

• Available in IDE
• iOS
• Android

This property is used to retain flex positional property values as they were defined. The flex positional properties are left, right, and padding.

NOTE: Locale-level configurations take priority when invalid values are given to this property, or if it is not defined.

The mirroring widget layout properties should be defined as follows.

function getIsFlexPositionalShouldMirror(widgetRetainFlexPositionPropertiesValue) {
    return (isI18nLayoutConfigEnabled &&
    localeLayoutConfig[defaultLocale]
    ["mirrorFlexPositionalProperties"] == true &&
    !widgetRetainFlexPositionPropertiesValue);
}

The following table illustrates how widgets consider Local flag and Widget flag values.

Syntax

retainFlexPositionProperties

Type

Boolean

Read/Write

No (only during widget-construction time)

Example

//This is a generic property that is applicable for various widgets.


//Here, we have shown how to use the retainFlexPositionProperties property for the Button widget.
/*You need to make a corresponding use of the
retainFlexPositionProperties property for other applicable widgets.*/
var btn = new kony.ui.Button({
    "focusSkin": "defBtnFocus",
    "height": "50dp",
    "id": "myButton",
    "isVisible": true,
    "left": "0dp",
    "skin": "defBtnNormal",
    "text": "always left",
    "top": "0dp",
    "width": "260dp",
    "zIndex": 1
}, {
    "contentAlignment": constants.CONTENT_ALIGN_CENTER,
    "displayText": true,
    "padding": [0, 0, 0, 0],
    "paddingInPixel": false,
    "retainFlexPositionProperties": true,
    "retainContentAlignment": false
}, {});

Platform Availability

• Available in IDE
• iOS
• Android

This property is used to convert Flow Horizontal Left to Flow Horizontal Right.

NOTE: Locale-level configurations take priority when invalid values are given to this property, or if it is not defined.

The mirroring widget layout properties should be defined as follows.

function getIsFlexPositionalShouldMirror(widgetRetainFlexPositionPropertiesValue){

    return (isI18nLayoutConfigEnabled &&
    localeLayoutConfig[defaultLocale]
    ["mirrorFlexPositionalProperties"] == true &&
    !widgetRetainFlexPositionPropertiesValue);
}

The following table illustrates how widgets consider Local flag and Widget flag values.

Syntax

retainFlowHorizontalAlignment

Type

Boolean

Read/Write

No (only during widget-construction time)

Example

//This is a generic property that is applicable for various widgets.


//Here, we have shown how to use the retainFlowHorizontalAlignment property for Button widget.
/*You need to make a corresponding use of the
retainFlowHorizontalAlignment property for other applicable widgets. */
var btn = new kony.ui.Button({
 "focusSkin": "defBtnFocus",
 "height": "50dp",
 "id": "myButton",
 "isVisible": true,
 "left": "0dp",
 "skin": "defBtnNormal",
 "text": "always left",
 "top": "0dp",
 "width": "260dp",
 "zIndex": 1
}, {
 "contentAlignment": constants.CONTENT_ALIGN_CENTER,
 "displayText": true,
 "padding": [0, 0, 0, 0],
 "paddingInPixel": false,
 "retainFlexPositionProperties": true,
 "retainContentAlignment": false,
 "retainFlowHorizontalAlignment ": false
}, {});

Platform Availability

• Available in IDE
• iOS
• Android

This property determines the lower right corner of the widget and is measured from the right bounds of the parent container.

The right property determines the position of the right edge of the widget’s bounding box. The value may be set using DP (Device Independent Pixels), Percentage, or Pixels. In freeform layout, the distance is measured from the left edge of the parent container. In flow-vertical layout, value is ignored. In flow-horizontal layout, the value is ignored.

The right property is used only if the width property is not provided.

Syntax

right

Type

String

Read/Write

Read + Write

Remarks

If the layoutType is set as kony.flex.FLOW_HORIZONTAL, the right property is measured from left edge of the right sibling widget. The horizontal space between two widgets is measured from right of the left sibling widget and left of the right sibling widget.

Example

//Sample code to set the right property for widgets by using DP, Percentage and Pixels.
frmHome.widgetID.right = "50dp";

frmHome.widgetID.right = "10%";

frmHome.widgetID.right = "10px";

Platform Availability

• Available in the IDE
• iOS
• Android
• Desktop Web

The row normal skin which is applied to the alternate rows.

Syntax

rowAlternateSkin

Type

String

Read/Write

Read + Write

Example

//Sample code to set rowAlternateSkin property for a DataGrid Widget as rASkin.
 frmDataGrid.myDataGrid.rowAlternateSkin="rASkin";

Platform Availability

• Available in the IDE.
• Available on all platforms

Returns the number of rows in the DataGrid.

Syntax

rowCount

Type

Number

Read/Write

Read only

Example

//Sample code to read the rowCount property for a DataGrid Widget as rASkin.
 var rowNumber=frmDataGrid.myDataGrid.rowCount;
kony.print("The number of rows in myDataGrid DataGrid widget is:"+rowNumber);

Platform Availability

• Not available in the IDE.
• Available on all platforms.

This is a skin property. This property specifies the skin that must be applied when the row is in focus.

Syntax

rowFocusSkin

Type

String

Read/Write

Read + Write

Example

//Sample code to set rowFocusSkin property for a DataGrid Widget as rFSkin.
 frmDataGrid.myDataGrid.rowAlternateSkin="rFSkin";

Platform Availability

• Available in the IDE
• Available on all platforms

This is a skin property. This property specifies the skin that must be applied when the row is not in focus.

Syntax

rowNormalSkin

Type

String

Read/Write

Read + Write

Example

//Sample code to set rowNormalSkin property for a DataGrid Widget as rNSkin.
 frmDataGrid.myDataGrid.rowNormalSkin="rNSkin";

Platform Availability

• Available in the IDE.
• Available on all platforms.

Specifies if the DataGrid must have scrollbars.

Syntax

scrollable

Type

Boolean

Read/Write

No

Remarks

The default value for this property is false. If set to true, the scrollbars are displayed. If set to false, the scrollbars are not displayed.

Example

//Defining the properties for dataGrid with scrollable:true
var dgridBasic = {
    id: "dgrid",
    info: {
        key: "This is datagrid"
    },
    isVisible: true,
    scrollable: true,
    rowNormalSkin: "rNSkin",
    rowFocusSkin: "rFSkin",
    rowAlternateSkin: "rASkin",
    showColumnHeaders: true,
    columnHeadersConfig: [{
        columnID: "col1",
        columnType: constants.DATAGRID_COLUMN_TYPE_TEXT,
        columnHeaderText: "Account Type",
        columnWidthInPercentage: 40
    }, {
        columnID: "col2",
        columnType: constants.DATAGRID_COLUMN_TYPE_TEXT,
        columnHeaderText: "Account Number",
        columnWidthInPercentage: 30
    }, {
        columnID: "col3",
        columnType: constants.DATAGRID_COLUMN_TYPE_TEXT,
        columnHeaderText: "Balance",
        columnWidthInPercentage: 30
    }],
    isMultiSelect: true,
    data: [{
        col1: "Checking",
        col2: "490",
        col3: "$400",
        metainfo: {
            skin: "rowskin1",
            col1_skin: "colskin1"
        }
    }, {
        col1: "Checking",
        col2: "494",
        col3: "$2000.34"
    }, {
        col1: "Savings",
        col2: "567",
        col3: "$4000"
    }]
};

var dgridLayout = {
    widgetAlignment: constants.WIDGET_ALIGN_TOP_LEFT,
    contentAlignment: constants.CONTENT_ALIGN_CENTER,
    containerWeight: 99,
    padding: [5, 5, 5, 5],
    margin: [5, 5, 5, 5]
};

var dgridPSP = {};

//Creating the dataGrid.
var dgrid = new kony.ui.DataGrid(dgridBasic, dgridLayout, dgridPSP);

Platform Availability

• Not available in the IDE.
• Available on Desktop Web platform only.

This property returns the user selected row index.

Syntax

selectedIndex

Type

Number

Read/Write

Read only

Remarks

This property is applicable only if the isMultiSelect property is set to false.

Example

//Sample code to read selectedIndex property for a DataGrid Widget.
 var sIndex=frmDataGrid.myDataGrid.selectedIndex;
kony.print("The index of the selected Item is:"+sIndex);

Platform Availability

• Not available in the IDE.
• Available on all platforms.

This property returns the list of user selected row object indexes. If "isMultiSelect" is set to false, the list will contain only one entry.

Syntax

selectedIndices

Type

Array of Numbers

Read/Write

Read only

Remarks

This property is applicable only if the isMultiSelect property is set to true.

Example

//Sample code to read selectedIndices property for a DataGrid Widget.
 var sIndices=frmDataGrid.myDataGrid.selectedIndices;
kony.print("The indices of the selected Items are:"+sIndices);

Platform Availability

• Not available in the IDE.
• Available on all platforms.

Returns the data in the selected rows of the DataGrid.

Syntax

selectedItem

Type

JSObject

Read/Write

Read only

Remarks

This property is applicable only if the isMultiSelect property is set to false.

Example

//Sample code to read selectedItem property for a DataGrid Widget.
 var sItem=frmDataGrid.myDataGrid.selectedItem;
kony.print("The selected Item is:"+sItem);

Platform Availability

• Not available in the IDE.
• Available on all platforms.

This property returns the list of user selected row objects. If "isMultiSelect" is set to false, the list will contain only one entry.

Syntax

selectedItems

Type

JSObject

Read/Write

Read only

Remarks

This property is applicable only if the isMultiSelect property is set to true.

Example

//Sample code to read selectedItems property for a DataGrid Widget.
 var sItems=frmDataGrid.myDataGrid.selectedItems;
kony.print("The selected Items are:"+sItems);

Platform Availability

• Not available in the IDE.
• Available on all platforms.

This property controls the visibility of the column headers of the DataGrid.

Syntax

showColumnHeaders

Type

Boolean

Read/Write

Read + Write

Remarks

The default value for this option is true. If set to false, the column headers are not displayed. If set to true, the column headers are displayed.

Example

//Sample code to enable showColumnHeaders property for a DataGrid Widget.
 frmDataGrid.myDataGrid.showColumnHeaders=true;

Platform Availability

• Available in the IDE.
• Available on all platforms.

This property determines the top edge of the widget and measured from the top bounds of the parent container.

The top property determines the position of the top edge of the widget’s bounding box. The value may be set using DP (Device Independent Pixels), Percentage, or Pixels. In freeform layout, the distance is measured from the top edge of the parent container. In flow-vertical layout, the distance is measured from the bottom edge of the previous sibling widget in the hierarchy. In flow-horizontal layout, the distance is measured from the left edge of the parent container.

Syntax

top

Type

String

Read/Write

Read + Write

Remarks

If the layoutType is set as kony.flex.FLOW_VERTICAL, the top property is measured from the bottom edge of the top sibling widget. The vertical space between two widgets is measured from bottom of the top sibling widget and top of the bottom sibling widget.

Example

//Sample code to set the top property for widgets by using DP, Percentage and Pixels.
frmHome.widgetID.top = "50dp";

frmHome.widgetID.top = "10%";

frmHome.widgetID.top = "10px";

Platform Availability

• Available in the IDE
• iOS
• Android
• Desktop Web

Contains an animation transformation that can be used to animate the widget.

Syntax

transform

Type

JSObject

Read/Write

Read + Write

Remarks

This property is set to the identify transform by default. Any transformations applied to the widget occur relative to the widget's anchor point. The transformation contained in this property must be created using the kony.ui.makeAffineTransform function.

Example

This example uses the button widget, but the principle remains the same for all widgets that have a transform property.

//Animation sample
var newTransform = kony.ui.makeAffineTransform();
newTransform.translate3D(223, 12, 56);

//translates by 223 xAxis,12 in yAxis,56 in zAxis
widget.transform = newTransform;

Platform Availability

• iOS
• Android

This property is used to enable and configure left or right swipe actions for a widget. The widgetSwipeMove Property can be used for all widgets . The most common use case is for implementing swipe action for individual rows in Segment.

Syntax

widgetSwipeMove

Type

String

Read/Write

Read + Write

Input Parameters

The following table consists of the parameters of the callback parameter:

Remarks

• For a Segment, the widgetSwipeMove Property is configured while setting the data of the Segment.

NOTE: It is not recommended to assign the widgetSwipeMove property on a top Flex container of the segment template widget.

Limitations

• When a translation animation is applied to the same widget that has widgetSwipeMove already configured, the action which has been performed last takes precedence. For example, if you have set a translation animation on a FlexContainer and then set the widgetSwipeMove property, the actions set in widgetSwipeMove take precedence over the translation animation.
• The state of the swipe transition of the widget is not retained.
• In a Segment, the widgetSwipeMove Property must be configured for the rows so that they reset to the previous position.

• If the widgetSwipeMove property is configured on a top level Flex container of a segment template, the onRowClick event will not be triggered. - Applicable on iOS and Android.
• Android limitation: On Android devices, when the user lifts their finger, the transition occurs immediately.

Example

Following is a code snippet for a mail app. Here we have used a Segment for listing the mail and the widgetSwipeMove Property has been configured for the SwipeFlex FlexContainer.

//This is a generic property that is applicable for various widgets.
//Here, we have shown how to use the widetSwipeMove property for Button widget.
/*You need to make a corresponding use of the
widgetSwipeMove property for other applicable widgets.*/
//Example of a swipe move configuration.
var swipeMoveConfig = {
 "translate": true,
 "Xboundaries": ["-60%", "60%"],
 "swipeLeft": [{
  "translateRange": ["-60%", "0%"],
  "callback": null,
  "translatePos": "-60%",
  "translate": true
 }, {
  "translateRange": ["0%", "60%"],
  "callback": null,
  "translatePos": "0%",
  "translate": true
 }],
 "swipeRight": [{
  "translateRange": ["-60%", "0%"],
  "callback": null,
  "translatePos": "0%",
  "translate": true
 }, {
  "translateRange": ["0%", "60%"],
  "callback": this.onCallback1,
  "translatePos": "60%",
  "translate": true
 }]
};

this.view.myButton.widgetSwipeMove=swipeMoveConfig;

Platform Availability

• iOS
• Android

This property determines the width of the widget and is measured along the x-axis.

The width property determines the width of the widget’s bounding box. The value may be set using DP (Device Independent Pixels), Percentage, or Pixels. For supported widgets, the width may be derived from either the widget or container’s contents by setting the width to “preferred”.

Syntax

width

Type

Number, String, and Constant

Read/Write

Read + Write

Remarks

Following are the options that can be used as units of width:

• %: Specifies the values in percentage relative to the parent dimensions.
• px: Specifies the values in terms of device hardware pixels.
• dp: Specifies the values in terms of device independent pixels.
• default: Specifies the default value of the widget.
• kony.flex.USE_PREFERED_SIZE: When this option is specified, the layout uses preferred width of the widget as width and preferred size of the widget is determined by the widget and may varies between platforms.

Example

//Sample code to set the width property for widgets by using DP, Percentage and Pixels.
frmHome.widgetID.width = "50dp";

frmHome.widgetID.width = "10%";

frmHome.widgetID.width = "10px";

Platform Availability

• Available in the IDE
• iOS
• Android
• Desktop Web

This property specifies the stack order of a widget. A widget with a higher zIndex is always in front of a widget with a lower zIndex.

The zIndex property is used to set the stack, or layer order of a widget. Widgets with higher values will appear “over”, or “on top of” widgets with lower values. Widgets layered over other widgets will override any interaction events tied to widgets beneath. Modifying the zIndex does not modify the order of the widgets in the Quantum Visualizer hierarchy, inside of a flexContainer or form. The zIndex property accepts only positive values.

Syntax

zIndex

Type

Number

Read/Write

Read + Write

Remarks

The default value for this property is 1.

NOTE: Modifying the zIndex does not modify the order of the widgets inside the FlexContainer. If zIndex is same for group of overlapping widgets then widget order decides the order of overlapping. The last added widget is displayed on top.

From Quantum Visualizer V9 SP2 FP7, developers can configure the Z Index value for a Responsive Web app as Auto or Custom. When the selected Z Index value is Auto, the default Z Index value of 1 is applied. When the selected Z Index value is Custom, developers can specify a desired numeric value.

Prior to the V9 SP2 FP7 release, the default value for the Z Index was 1. When developers imported any third-party libraries with the Z index set as Auto, content overflow was disabled as the value of Auto is less than 1.

NOTE: The Z Index value Auto is supported only when the Enable JS Library mode is configured as unchecked.

For existing components, the value of the Z Index is configured as 1 for the Native channel. For the Responsive Web channel, the Z Index will be set as Custom with 1 as the value.

For new components, the value of the Z Index is configured as 1 for the Native channel. For the Responsive Web channel, the Z Index will be set as Auto or 1 based on the project level settings.

NOTE: If ModalContainer property is set to true in any of the FlexContainer widget, the Z Index value of that container and all of its parent containers should be set to Custom.

kony.flex.ZINDEX_AUTO : Constant to configure the Z Index value as auto programmatically.

//Sample code to set the ZIndex value to Auto
 var flx = new kony.ui.FlexContainer({
  "id": "flx"
  "zIndex": kony.flex.ZINDEX_AUTO
});

//Sample code to set the ZIndex value to Auto
flx.zIndex = kony.flex.ZINDEX_AUTO;

Example

//Sample code to set the zIndex property for widgets.
frmHome.widgetID.zIndex = 300;

Platform Availability

• Available in the IDE
• iOS
• Android
• Desktop Web
