Flex Container Pseudocode Examples

Below are some of the Pseudocode examples and their images:

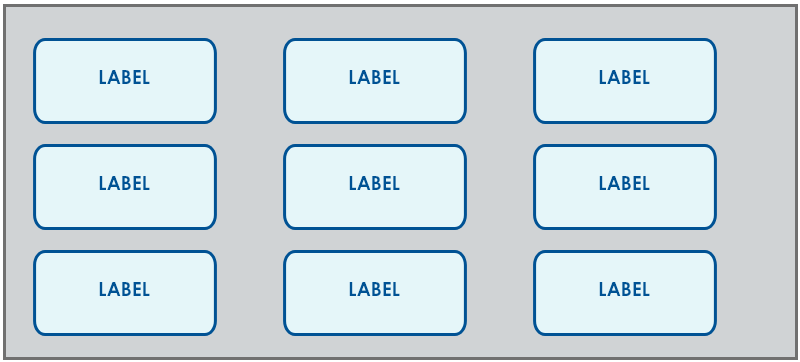

Building a grid of widgets

//Sample code to build a grid of widgets.
var c = new kony.ui.FlexContainer();
c.setDefaultUnit(dp);
c.width =  170;
c.height = 170;

wWidth = 30;
wHeight = 20;
wSpacing = 20;

for (int I = 0; I < 3;  I++ )
{
	for (int J = 0; J < 3 ; J++)
	{
		var label = new Label(“id”, “Label”);

		label.width = wWidth;
		label.height = wHeight;
		label.top =  (I + 1)* spacing  + I* wHeight;
		label.left = (J + 1)* spacing  +  J * wWidth;
		c.add(label);
	}
}

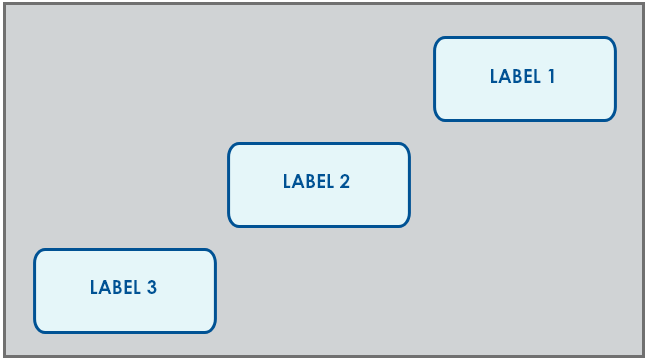

Position the widgets diagonally

//Sample code to position the widgets diagonally.
var c = new kony.ui.FlexContainer();
c.setDefaultUnit(dp);

var label1 = new Label(“id”,“Label1”)
c.add(label1);
var label2 = new Label(“id”,“Label2”)
c.add(label2);
var label3 = new Label(“id”, “Label3”)
c.add(label3);

c.doLayout = function()
{
  wWidth = 30;
  wHeight = 20;
  wSpacing = 20;

  label1.width = label2.width = label3.width = wWidth;
  label1.height = label2.height = label3.height = wHeight;
  label1.right =  20;
  label1.top = 20;

  label2.left = c.frame.width/2 - wWidth/2;
  label2.top = c.frame.height/2 - wHeight/2;

  label3.left = 20;
  label3.bottom = 20;
}

Position the widgets relative to siblings

//Sample code to position the widgets relative to siblings
var c = new kony.ui.FlexContainer();

var label1 = new Label(“Hi”);
c.add(label1);

var label2 = new Label(“Hi”);
c.add(label2);

label1.left = 20;
label1.top = 30;
label1.width = kony.flex.USE_PREFERRED_SIZE;
label1.height = 40;

label1.doLayout = function(){

  var lab = this.parent.label2;  // accessing the child’s through parent

  lab.left = 20 + label1.frame.width /2;
  lab.left.top = 30;

  label2.width   = label1.frame.width /2;
  label2. height = 40;

}

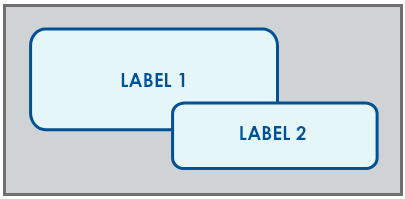

Overlapping the widgets using zIndex

//Sample code to overlap the widgets using zIndex
var label1 = new Label("id", "Label1");
label1.zIndex = 1;
c.add(label1);

var label2 = new Label("id", "Label2")
label1.zIndex = 2;
c.add(label2);

label1.left = 20;
label1.top = 30;

label1.width   = 60;
label1. height = 50;

label1.doLayout = function(){

  label2.left = 20 + label1.frame.width /2;
  label2.top = 30 + label1.frame.height/2;

  label2.width   = 80;
  label2. height = 25;

}

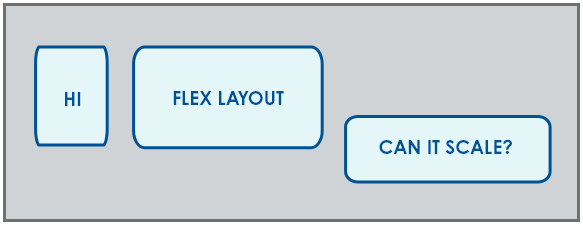

Positioning the widgets horizontally

//Sample code to position the widgets horizontally
var c = new kony.ui.FlexContainer();
//set the container layout type as  Kony.Flex.FLOW_HORIZONTAL

var label1 = new Label("id", "Hi");
c.add(label1);

var label2 = new Label("id", "Kony’s Flex Layout");
c.add(label2);

var label3 = new Label("id", "Can it scale ?");
c.add(label3);

label1.top = label2.top = 20;
label3.top = 30;

label1.left = label2.left = label3.left = 5;

label1.width = label2.width = label3.width = kony.flex.USE_PREFERRED_SIZE;

label1.height = label2.height = label3.height = 50;

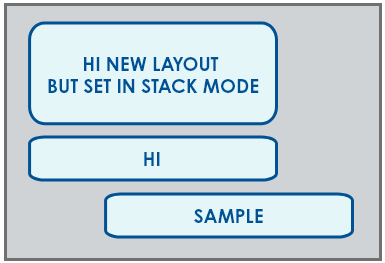

Stacking the widgets vertically

//Sample code to stack the widgets vertically
var c = new kony.ui.FlexContainer();
//set the container layout type as  Kony.Flex.FLOW_VERTICAL

var label1 = new Label(“id”, “Hi Kony’s new layout but set in stack mode”);
c.add(label1);

var label2 = new Label(“id”, “Hi”);
c.add(label2);

var label3 = new Label(“id”, “Sample”);
c.add(label2);

label1.left = label2.left = 30;
label3.left = 40;

label1.top = label2.top = label3.top = 5;

label1.width = label2.width = label3.width = 60;

label1.height = label2.height = label3.height = kony.flex.USE_PREFERRED_SIZE;

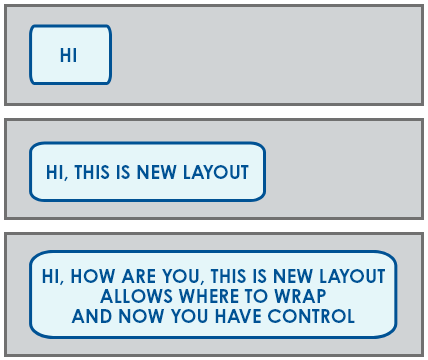

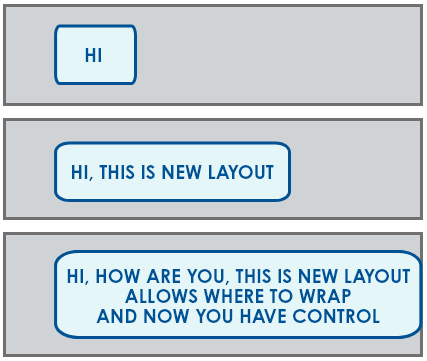

Wrapping the text when it reaches the specified width

//Sample code to wrap the text when it reaches the specified width
var c = new kony.ui.FlexContainer();

var label1 = new Label("id", "text");
c.add(label1);

label1.text = // Data is fed from net work

label1.left = 20;
label1.top = 20;
label1.maxWidth = 80;
label1.height = kony.flex.USE_PREFERRED_SIZE;

Wrapping the text when it reaches the parent boundaries

//Sample code to wrap the text when it reaches the parent boundaries
var c = new kony.ui.FlexContainer();

var label1 = new Label(“id”, “text”);
c.add(label1);

label1.text = // Data is fed from net work

c.doLayout = function()
{
  label1.left = 20;
  label1.top = 20;
  label1.maxWidth =  c.frame.width - 20 ;
  label1.height = kony.fLex.USE_PREFERRED_SIZE;
}

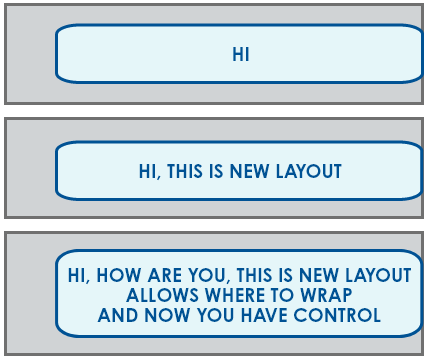

Widget occupying the available horizontal space

//Sample code of widget occupying the available horizontal space
var c = new kony.ui.FlexContainer();

var label1 = new Label("id", "text");
c.add(label1);

label1.text = // Data is fed from net work

label1.left = 20;
label1.top = 20;
label1.right = 0;
label1.height = kony.flex.USE_PREFERRED_SIZE;

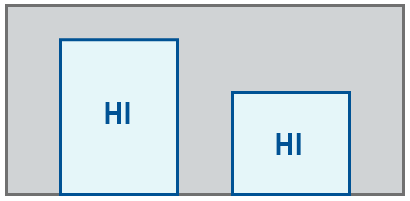

Widget occupying the available vertical space

//Sample code of widget occupying the available vertical space
var c = new kony.ui.FlexContainer();

var label1 = new Label("id", "Hi");
c.add(label1);

var label2 = new Label("id", "Hi");
c.add(label2);

label1.left = 20;
label1.top = 20;

label2.right = 30;
label2.top = 50;

label1.bottom = 0;
label1.width = 50;

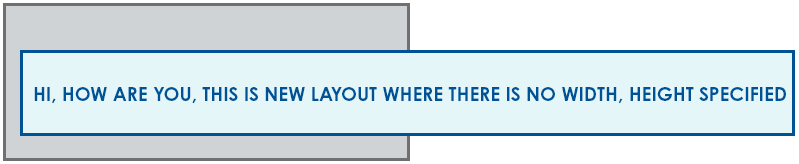

Widget to occupy its preferred size without any given height or width

//Sample code of a widget to occupy its preferred size without any given height or width
var c = new kony.ui.FlexContainer();
c.clipBounds = false;

var label1 = new Label(“id”, “text”);
c.add(label1);

label1.text = // Data is fed from net work

label1.left = 20;
label1.top = 20;

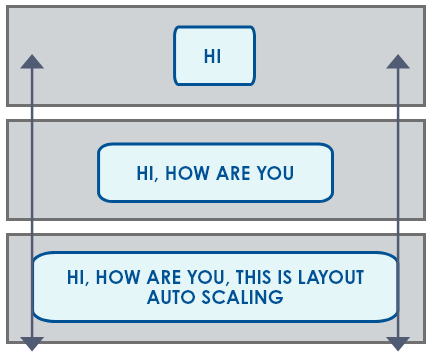

Widget position in center and offset from left and right boundaries

/*Sample code of widget position in center with width to grow maximum and with a minimum
offset from left and right boundaries.*/
var c = new kony.ui.FlexContainer();

var label1 = new Label("id", "text");
c.add(label1);

label1.text = // Data is fed from net work
label1.minWidth = 20;
label1.maxWidth = 80;
label1.height = kony.flex.USE_PREFERRED_SIZE;

label1.center = {80,80};
