Kony Management User Guide: Device Enrollment > Device Initiated Enrollment > iOS Device initiated Enrollment

iOS Device initiated Registration

The entire process is driven on the device and the user need not leave the Enterprise Store. If registration is successful, the device should be registered and its status should change to Registered.

The generic process to register a device is as follows:

Note: In EMM 2.5 onwards, while registering iOS devices, all CSR requests from iOS devices are routed through EMM server to SCEP server.

Note: For iOS devices, enterprise store on a deactivated device from a previous enrollment, a user can enroll the device through enterprise store.

Authentication

To download the enterprise store from the Kony Enterprise App Store, the user must provide the following credentials:
1. Company Name (optional)
2. User name
3. Password
You can download an Enterprise store through two ways of authentication:
- Using Kony Management suite user login credentials
- Using Kony Fabric Identity Service OAuth 2.0 user login credentials
Important: Ensure that pop-ups are enabled in your web browsers. If pop-ups are not enabled, you may not see the log in page.

Server Side Authentication and Verification

The details provided by the User are authenticated.
The EMM Server ensures that the device is not registered, not associated with any other user and allowed to enroll. Once this is ascertained, the server signals the agent to proceed with the enrollment.

Terms Acceptance

Once the authentication and verification is successful, the Terms and Conditions (T&C) are shown to the user.
The User must accept the terms specified. If the User does not accept the Terms, the registration process is aborted and the Device goes into the Terms Not Accepted state.

To perform iOS Device initiated Registration, follow these steps:

Enter application URL in the device based browser.

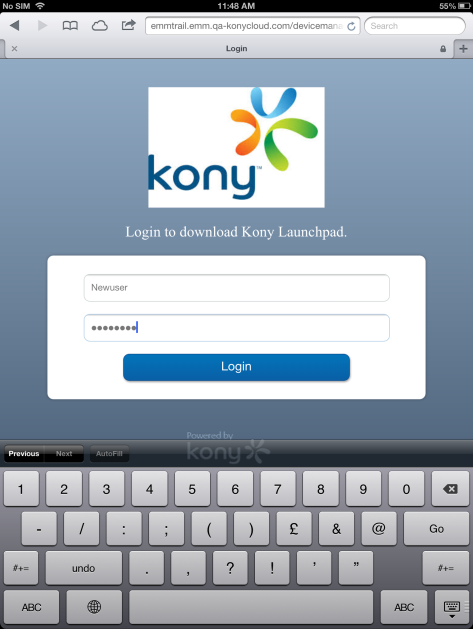

The Log-in page appears.
If JavaScript is turned off, the app logo image is not visible in the container download page in Safari browser.
Enter your log-in credentials. These details are sent to the Server along with the device information.
Important: Based on users’ existence in multiple ADs and sources, users need to provide domain and source details for authentication. For more details, refer to Login > Authentication Scenarios
After verifying the credentials the system displays the confirmation message. Click the Install button. The installation starts.

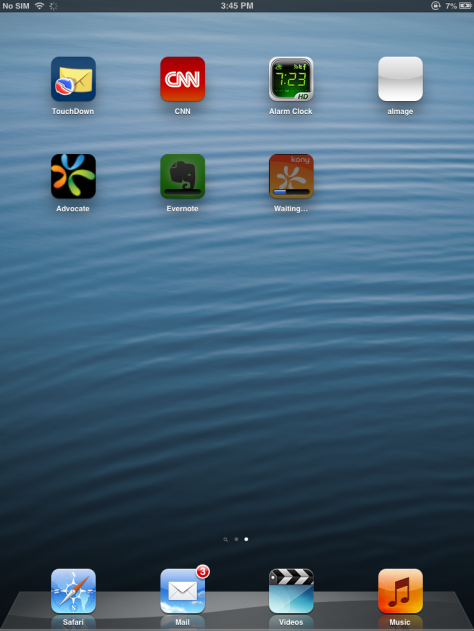

The above image indicates that installation process is in progress.

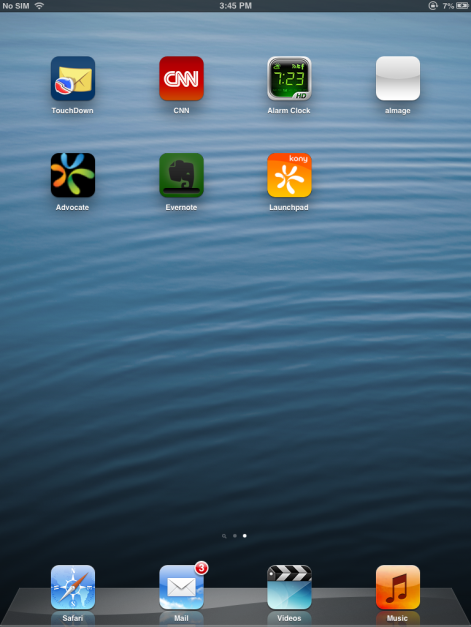

The enterprise store is installed on device.
Important: From iOS 9 onwards, a pop-up appears to trust the app profile. Navigate to Settings > General > Profile > {Select Profile} >and the click on Trust {Profile Name}.

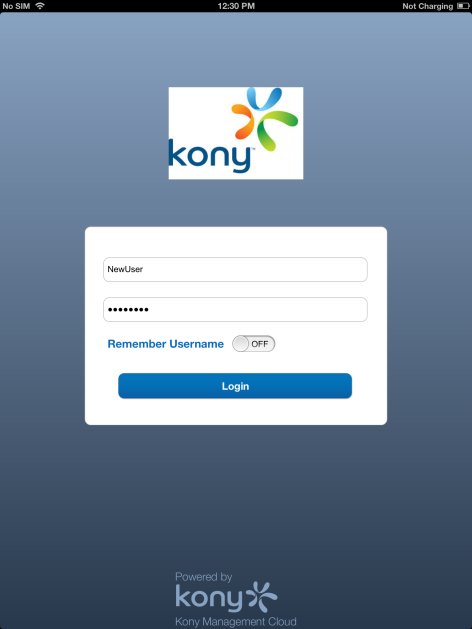

Kony EMM Login page appears.
Enter your User Id and the Password.
Note: The Device Users is required to Authenticate themselves by providing User Name and Password. These details are sent to the Server along with the device information. The details provided by the User are authenticated. The EMM Server ensures that the device is not registered, not associated with any other user and allowed to register. Once this is ascertained, the server signals the agent to proceed with registration. If Verification fails, The Device goes into the status based on type of verification failure.

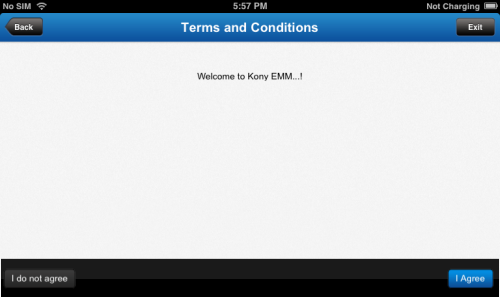

The system verifies the credentials. Once the authentication and verification is successful, system displays the Terms and Conditions.
You must accept that you have read and agree to the terms specified. Click the I Agree button. If you do not accept the terms, theregistration process is aborted and the device goes into terms not accepted state. This marks the completion of the device registration.
The system displays the confirmation message. Click OK to proceed.
