Upgrade Quantum Fabric on Amazon EKS

The Configuration and Setup section specified the process by which the Fabric Environment is set up and deployed. In addition to the YAML configuration files that are generated in the artifacts folder, an upgrade.properties file is also generated. The upgrade.properties file contains keys for the authService, accounts, and workspace components. During the upgrade process, you need to provide the location of the upgrade.properties file.

To upgrade the deployed instance of Quantum Fabric, follow these steps.

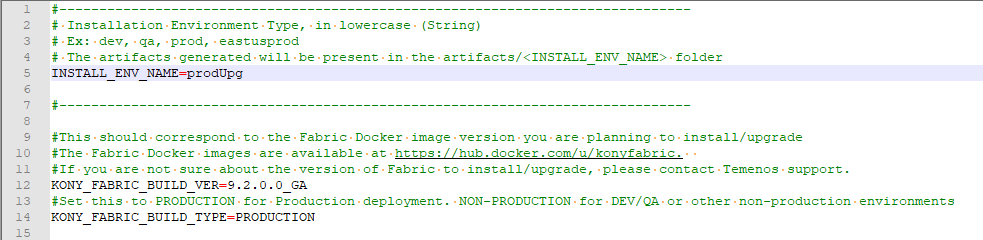

  1. In the config.properties file, provide values for the following properties:
    • INSTALL_ENV_NAME: Specifies the environment name for the upgraded version of Quantum Fabric.
      To avoid overwriting the YAML files that were generated during the installation process, make sure that the environment name is different than the name of the earlier environment.
      For example: If the name of the earlier environment was prod, you can name this environment prodUpgrade.
    • KONY_FABRIC_BUILD_VER: Specifies the build version of Fabric to which you want to upgrade.

  2. Upgrading Fabric also requires upgrading the existing database schema. Make sure that you point to the same database server that was used during installation. Also make sure that the DB_PREFIX and DB_SUFFIX properties contain the same values that were used during the installation.
  3. Provide values for the following properties:
    • USE_EXISTING_DB: Specifies whether the upgrade process must use an existing database.
      The value must be set to Y.
    • PREVIOUS_INSTALL_LOCATION: Specifies the location of the upgrade.properties file that was generated during the installation.
  4. Generate the database and app YAML files by executing the following command.
    ./generate-kube-artifacts.sh config.properties
  5. Similar to the install process, apply the generated YAML files by executing the following commands.


kubectl apply -f ./artifacts/<INSTALL_ENV_NAME>/fabric-db.yml


kubectl apply -f ./artifacts/<INSTALL_ENV_NAME>/fabric-app.yml

After the fabric-db.yml and fabric-app.yml files are applied, you may need to wait for a few minutes while EKS starts the new deployments and deletes the older deployments. After the process is completed, you can sign-in to the Fabric Console by using the same URL and credentials that were created during the installation.
