Service Reconfiguration
In an Enterprise, as a best practice, the development enterprise backend systems are maintained separately from the production enterprise backend systems. Fabric supports the ability to follow the best practice by providing DEV, QA and PROD environments. DEV and QA environments are typically configured to communicate with development enterprise backend and PROD is configured to communicate with Production enterprise backend.
Service Reconfiguration lets you use the same service against different environments by providing the ability to change the connection parameters to a backend while publishing an app to an environment.
IMPORTANT: Full publish method is selected by default, you can switch to Incremental publish to reduce publish duration. Refer to Publish > Delta Publish.
Use Case
You can use service reconfiguration based on the following scenarios:
A developer can use an app configuration in the current workspace and publish the reconfigured app to another environment. A developer can reconfigure only a few entities (such as base URL, User ID, and password).
For example, currently, an endpoint URL of an integration service of the app is configured as https://qa.sample.com
, which is a QA environment. But after an app is published in a PROD environment, a developer wants the integration service to communicate to a production endpoint - for example, https://sample.com
. In such cases, a developer can reconfigure the endpoint URL from http://sample.test.com to https://sample.com, and publish the app to a PROD environment.
Reconfiguring a Service
To reconfigure a service from the Publish tab, do the following:
- From the Services and Web Client tab, select the required environment.
- Click Configure and Publish. The Configuration page is displayed.
- Select the required service type from the list. You can also configure the app related information from here. The service types available in the list are as follows:
- Identity Services
- Integration Services
- Object Service
- The app displays the selected service details with default connection parameters and configurable connection parameters.
The list of the configurable connection parameters vary for each service type. Following is the list of configurable connection parameters with respect to each service type and adapter.
Identity Service Provider | Properties |
---|---|
Okta Login |
|
OAuth Services (Out of the box OAuth connectors like Microsoft, Linkedin) |
|
Custom Identity Service | Custom Identity Service Endpoint |
SAP Service |
|
Salesforce |
OAuth 2.0 and Username/Password:
|
Microsoft Active Directory |
SAML:
LDAP/LDAPS:
Azure Active Directory (SAML):
|
SAML | Metadata URL (in case Metadata Mode = URL) |
Open LDAP |
|
Adapter type | Properties |
---|---|
XML |
|
JSON |
|
SOAP |
|
SAP |
|
Salesforce |
|
Java |
None |
JavaScript | None |
APIProxy | None |
Relational Database |
|
MongoDB |
|
RAML |
|
OpenAPI (Swagger) |
NOTE:
|
Salesforce |
|
IBM MQ |
|
NOTE: Throttling details for all integration services are displayed under Publish > Configure & Publish > Integration Service Configuration. |
Adapter type | Properties |
---|---|
SAP |
|
Salesforce |
|
Relational Database |
|
MongoDB |
|
RAML |
|
Integration/Orchestration |
|
Storage |
|
NOTE: Throttling details for all object services are displayed under Publish > Configure & Publish > Object Service Configuration. |
The service details page displays the following fields:
Number | Section | Description |
---|---|---|
1 | Identity Service Configuration | Displays the Identity Services configuration details for app reconfiguration. |
1. a | Work area |
Displays the configurable properties of all the services such as Client ID, Client Secret and Domain Name. You can edit the values of the properties and click Save. An undo icon appears next to the value field until you publish the app. You can reset the new value to default value by selecting one of the options in the Reset to Default Values drop-down list. NOTE: Based on a combination of selected conditions in the View By and Show Content sections, the system displays services, entities for all services, and edited values. |
1. b | View By |
Displays services based on conditions such as service name or service type.
|
1. c | Show Content |
Displays content in services based on conditions such as all values or edited values.
|
1. d | Sort By | Sorts the services in the work area in A to Z or Z or A order. |
1. e | Search by Service Name | Filters the services based on service name. |
1. f | Configurations | Compares the reconfigured services. |
1. g |
Reset to Default Values
|
Resets the values of reconfigured services. |
2 | SAVE & PUBLISH | Saves and publishes the reconfigured app to an environment. |
You can do the following from the service details page to configure the connection parameters:
- In View By, you can select the required option to change the order in which you view the services. The options available are as follows:
- Service Name: Click Service Name if you want to view the services in an alphabetical order based on the service names. The system displays all the details of each service in this view.
NOTE: By default, the list view is set to View By as Service Name and Show Content as All Values.

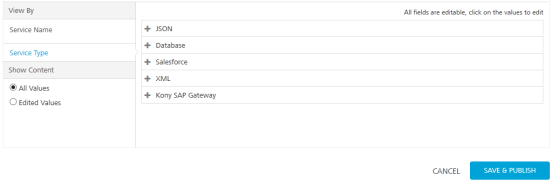

- Service Type: Click Service Type if you want to group the services based on the service type. To view details in each service type, click the Plus icon and expand the service.
- Service Name: Click Service Name if you want to view the services in an alphabetical order based on the service names. The system displays all the details of each service in this view.
- In Show Content, you can select the required option to change the view of the content within the service based on their values. The options available are as follows:
- All Values: Click All Values if you want to view all values including reconfigured values for the selected filter in the View By section.
For example, if you change User ID and Password for Salesforce service, shown below. - Edited Values: Click Edited Values if you want to view only the reconfigured values for the selected filter in the View By section.
For example, if you change User ID and Password for Salesforce service, shown below.
- All Values: Click All Values if you want to view all values including reconfigured values for the selected filter in the View By section.
- In the work area, follow these steps to reconfigure values in the services:
- To change any value, click the value. For example, to change the base URL, click it.
The system displays the value in the text box, and the save and cancel buttons next to the text box.
- Edit the value in the text box . For example, change
com
tonet
.IMPORTANT: When you reconfigure a value, click the save button to save the changes. If you click anywhere else on the page, the changes will be lost, and you will get only the previous data.
- Click save. The system adds an undo button next to each reconfigured values.
- To change any value, click the value. For example, to change the base URL, click it.
- Click SAVE & PUBLISH to start the publishing.
You can also do the following tasks from the service details page:
Reconfigure the Schema Name in Relational Database Connectors
In Integration Service Configuration, you can reconfigure the schema name in Relational Database Connectors using JSON. To reconfigure the schema name, follow these steps:
- Under Schema Mapping JSON, click against the service to enter the schema name.
For example, To change the schema name from dev to QA, enter the JSON value and click Save.
test_abc
- Schema on which operations are selected.test_123
- Schema on which run time operations must be performed.
- Click Save and Publish to start the publishing.
The system adds an undo button next to each reconfigured value.
Compare Reconfigured Services
In the service details page, after you reconfigure values of services, you can compare the details of all services. You cannot edit any fields in the compare dialog.
- In the App configuration page, click Configurations on the required service configuration row.
The system displays the Current Environment Configuration Vs Definition Values dialog box.
- Service Name: Displays the service name.
- Parameter: Displays the field name that is reconfigurable.
- Default Value: Displays the value configured in the design time.
- Current Env. Value:Displays reconfigured value in the current environment.
- Edited Value: Displays the edited value for the selected environment.
IMPORTANT: In the Current Environment Configuration Vs Definition Values dialog box, the values in the Current Env. Value and Edited Value fields are updated to an environment only when you click SAVE & PUBLISH.
- Click the Close button at the top-right corner to exit the dialog.
Reset Values for Reconfigured Services
In the service details page, after you reconfigure values of services, you can reset the values to the default configuration or to the current environment configuration.
IMPORTANT: When you modify a field and save the service, the system overrides old values with the new values in the current environment clipboard.
To reset to default values, follow these steps:
- Reset to Default Value: After you reconfigure a value in the work area, and when you choose Reset to Default Value, the system resets the reconfigured values to the default values that are configured in the current workspace - for example, Developer environment.
- Reset to Current Environment Config: Contains last saved values. After you reconfigure a value in the work area, when you choose Reset to Current Environment Config, the system resets all values to the current environment (last saved values).
