Testing an App - TestNG

TestNG is a testing framework that can be used for unit testing and integration testing. With the TestNG framework, App Factory uses Appium to run test cases on the Native platform, and Selenium to run test cases on the Desktop Web platform. For more information, refer to the following sections.

Prerequisites

Building and running a test

To build and run a test, follow these steps:

1. From the Visualizer folder of your project, navigate to the Tests sub-folder.
2. For the runTest job, click the Build with Parameters icon on the right side of the row.
   Alternatively, select the runTest job, and then from the left panel of the details page, select Build with Parameters.
3. Configure the build parameters for the runTest job. For more information about the parameters, refer to the following sections.

   Source Control

   Parameter	Description
   PROJECT_SOURCE_CODE_BRANCH	Specifies the branch, release tag, or the commit ID of the repository that contains the test files. The tests must be placed at the following location: <Repository-Root>/<Project-Root>/test/testNG/ The <Repository_Root> must be configured in the Project Settings. The <Project-Root>is the name of the project that is configured while creating the Visualizer project in App Factory.

   Testing

   Parameter	Description
   TEST_FRAMEWORK	Specifies the framework that you want to use for testing the app. The test framework can be TestNG or Jasmine.
   RUN_NATIVE_TESTS	Specifies whether App Factory must run tests for the Native platform. If you enable this parameter, the console displays additional parameters for Native tests. For more information, refer to Native build parameters.
   RUN_DESKTOPWEB_TESTS	Specifies whether App Factory must run tests for the Desktop Web platform. If you enable this parameter, the console displays additional parameters for Desktop Web tests. For more information, refer to Desktop Web build parameters.

   Native build parameters

   Parameter	Description
   ANDROID_UNIVERSAL_NATIVE_BINARY_URL	Specifies the URL of the Android universal binaries that are generated by a build job or generated locally.
   ANDROID_MOBILE_NATIVE_BINARY_URL	Specifies the URL of the Android Mobile binary that is generated by a build job or generated locally.
   ANDROID_TABLET_NATIVE_BINARY_URL	Specifies the URL of the Android Tablet binary that is generated by a build job or generated locally.
   IOS_UNIVERSAL_NATIVE_BINARY_URL	Specifies the URL of the iOS universal binaries that are generated by a build job or generated locally.
   IOS_MOBILE_NATIVE_BINARY_URL	Specifies the URL of the iPhone binary that is generated by a build job or generated locally.
   IOS_TABLET_NATIVE_BINARY_URL	Specifies the URL of the iPad binary that is generated by a build job or generated locally.
   NATIVE_TESTS_URL	Specifies the URL of the binaries for the compiled test project. If you provide Git parameters, you can skip this parameter.
   TEST_ENVIRONMENT	Specifies the environment on which the Device Farm runs the test. You can select a Standard Test Environment, or select a Custom Test Environment. For more information, refer to Native Testing Environments. If you select a Custom Test Environment, the console displays additional parameters. For more information, refer to Custom Test Environment parameters.
   AVAILABLE_TEST_POOLS	Specifies the device pool that must be used for the tests. If a device pool is empty, the build fails. For more information, refer to Configuring Device Pools.

   Custom Test Environment parameters

   Parameter	Description
   APPIUM_VERSION	Specifies the Appium version that is used to run the tests. For information about the artifacts that are available in the notification mail for AWS Custom Environment Run, refer to Building an App in AWS Custom Environment.
   TESTNG_FILES	Specifies the relative path of the TestNG.xml file in the test jar file, for example: appfactory/Testng.xml. If the path is not specified, the root of the test jar file is taken as the default path. You can specify multiple file paths by using comma separated path values. For example: kony/Testng.xml,kony/appfactory/Testng.xml,testng.xml NOTE: If the specified TestNG file is not found in the source, the tests run independently similar to Standard Test Environment.

   Desktop Web build parameters

   Parameter	Description
   FABRIC_APP_URL	Specifies the URL of the Fabric app with which the Desktop Web WAR file is published.
   DESKTOPWEB_TESTS_URL	Specifies the URL of the Desktop Web binary that is generated by a build job or generated locally.
   AVAILABLE_BROWSERS	Specifies the browser on which you want to run the Desktop Web tests.
   SCREEN_RESOLUTIONS	Specifies the resolution at which the browser must launch and run the tests.
   RUN_DESKTOPWEB_TESTS_ARGUMENTS	Specifies additional arguments (parameters) that must be passed in the Maven command for the Desktop Web tests. For Example: If you pass -Dsurefire.suiteXmlFiles=resources/Testng.xml, the argument triggers the tests from the resources/Testng.xml file. If you do not pass the argument, Testng.xml is selected as a default file.

   Custom Hooks

   Parameter	Description
   RUN_CUSTOM_HOOKS	Specifies whether Custom Hooks must be run in the after the tests are executed (the Post-Test stage). For more information, refer to Custom Hooks.

Native Test Environments

App Factory uses the AWS Device farm to run test cases on specific devices. The Device Farm offers two types of environments to run the tests.

• Standard Test Environment
  In a standard test environment, the Device Farm provides the logs and reports for every test case that available in the test suite. You can use the logs to locate and fix issues in your app. The tests are run on Appium version 1.9.1, and a new instance of the application is built for every test case. The test cases are implemented based on the sequence that is provided in the test package. The reports are gathered for every minor detail of the tests, therefore, running the tests takes time. For more information, refer to Standard Test Environment.

  NOTE: TestNG annotations and TestNG XML files are not supported in a Standard Testing Environment.

• CustomTest Environment
  In a Custom Test Environment, you can use the TestNG annotations to group, exclude, and include the test cases that you want to run, and also generate the logs and reports. You can use a TestNG XML file to determine the order in which the test runs. You can provide the required Appium version and the device farm downloads and installs the version to run the tests on it. All the test cases run on a single instance of the app, which makes the test execution faster in this environment. However, the speed of the test execution depends on the logic and flow of the test cases. For more information, refer to Custom Test Environment.

NOTE: For information about the difference between Standard and Custom Test Environments, refer to Standard and Custom test Environments.

Standard Test Environment Run

The test run process consists of the following steps:

1. Checkout of test project if GIT_BRANCH and GIT_CREDENTIALS are selected.
2. Build the test project
3. Publish test binaries at S3 based on the <S3 bucket>/<project name>/Tests/runTests/<build number>/<app-name>.zip. For example: https://s3-eu-west-1.amazonaws.com/ konydemo/KitchenSinkApp/Tests/runTests/4/KitchenSinkApp_TestApp.zip
4. Fetch binaries to run them in AWS Device Farm
5. Create a project in AWS Device Farm
6. Create a device pool at AWS Device Farm, taking a device list selected from the configuration
7. Upload test binaries to the Device Farm
8. Upload application binaries to the Device Farm and schedule a run.
9. Retrieve the test results.

Usually, the test run process takes around 20 minutes per each device in the device pool. Only the devices that are available in the Device Farm are used for testing. All unknown devices are skipped. If a particular application binary is missing, the devices for that channel are skipped from the test run.

Custom Test Environment Run (Raw Mode)

When you customize the test environment, you can specify the commands that must be run on the Device Farm to execute your tests. Running a test on a Custom Test Environment ensures that the tests on Device Farm run similar to the tests that run on your local machine. A Custom Test Environment does not generate granular reports for every test case.

In a Custom test environment, you can select the Appium version on which the test must be run. All the TestNG annotations, such as grouping and parallel tests/methods, are supported.

NOTE: Make sure that you provide an appropriate Appium version. For more information, refer to AWS Device Farm.

Including a testng.xml File in the tests.jar File for Device Farm

In a Custom Test Environment, TestNG XML is used to run the tests in the project test code. The testng.xml file must be present in the Testing jar file that is created as part of the test code compilation.

You can configure the Maven build to package the testng.xml with the Testing jar file as part of the maven build.

To apply the testng.xml file to the Appium TestNG test package for AWS Device Farm, you must add the testng.xml file to the root of the *-tests.jar file. To achieve this, do the following:

1. Place your test code in the root test folder that is available at the following locations:
   • For SP4 and higher versions, <project_root>/testresources/TestNG/.
   • For lower versions, <project_root>/test/TestNG.

   NOTE: Ensure that pom.xml is present in the required directory.

2. Write the required TestNG XML and place it at <root_test_folder>/src/test/resources location.

3. To explicitly reference a directory, include the testresources tags in the pom.xml.

   <testResources>
        <testResource>
           <directory>${project.basedir}/<root_test_folder>/src/test/resources</directory>
        </testResource>
   </testResources>


4. To reference the TestNG XML file for local executions, modify the pom.xml to include the surefire plugin.


   <plugin>
       <groupId>org.apache.maven.plugins</groupId>
       <artifactId>maven-surefire-plugin</artifactId>
       <version>2.12.4</version>
       <configuration>
          <suiteXmlFiles> <suiteXmlFile>src/test/resources/testng.xml</suiteXmlFile></suiteXmlFiles>
       </configuration>
   </plugin>


   NOTE: For more than one TestNG XML, use multiple <suiteXmlFile> tags.

5. To verify the package, you can build the test code to create a dependencies zip that contains the Testing JAR. This zip with the dependencies will be present inside <root_test_folder>/ target directory. Package the tests using maven clean and package commands at the test root folder. The -DskipTests=true option specifies that the build should not run the unit tests.

mvn clean package -DskipTests=true

6. Extract the zip folder. To verify whether the TestNG XML file is present at the desired location (root, by default), extract the jar using xf command.

   jar xf nameOfTheProjectFromPom-1.0-SNAPSHOT-tests.jar

   Alternatively, you can use the unzip command to extract the contents of the jar.

   unzip nameOfTheProjectFromPom-1.0-SNAPSHOT-tests.jar -d sampletestsjarcontents

If the XML is in the correct location, remove the target folder and check-in the code into a branch in Git. Now, you can run your tests on App Factory in the Custom Test Environment. For more information, please refer to AWS Documentation.

For information on test results, refer to Test Results.

NOTE: Steps 3 and 4 are only for verification purpose. Tests will be compiled by App Factory during runtime unless the zip with dependencies is directly provided via build parameters.

IMPORTANT: You can use the universal application binary and run the tests on both mobile and tablet devices based on the availability in the device pool.
You can trigger a run test job either with universal binary or with individual mobile/tablet.

Running Tests from buildVisualizerApp job

You can also trigger the tests from the buildVisualizerApp job available at Project Name > Visualizer > Builds folder. It is the simplest way to validate your code by launching tests right after Building the application. There is no need to specify all parameters as they are provided while running the tests manually. The results can be viewed in line to the Test Results of Manual Tests. For more information, refer to Building a Visualizer App.

Test Results

Native Test Results

When the project test build is complete and the test results are published at S3, e-mail notifications are sent to recipients:

On unsuccessful build for the tests run, the following e-mail is sent to the recipients:

In the final stage, the consolidated test run status is notified via e-mail. Refer the following screenshots for the sample email for consolidated status.

Sample email for Native tests

To download test data fetched from AWS Device Farm, click Download File link. Data is stored at S3 and available for review without time limitations.

Desktop Web Test Results

When the project test build is complete and the test results are published at S3, e-mail notifications are sent to recipients:

On unsuccessful build for the tests run, the following e-mail is sent to the recipients:

In the final stage, the consolidated test run status is notified via e-mail. Refer the following screenshots for the sample email for consolidated status.

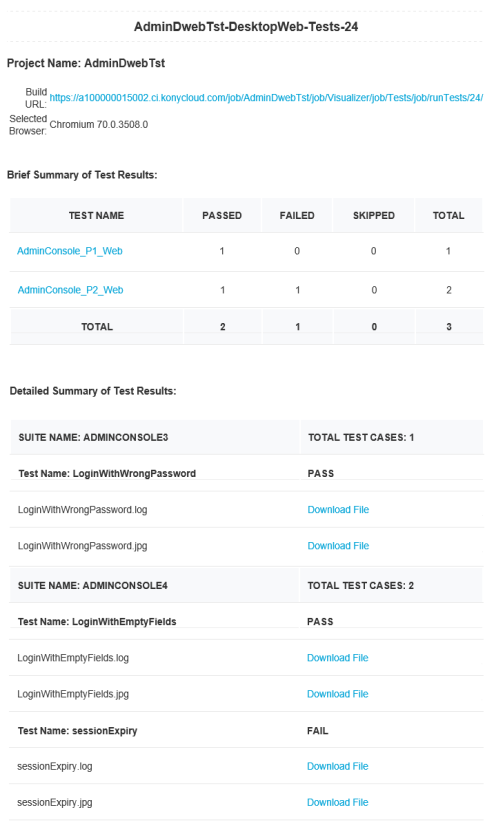

Sample email for DesktopWeb tests

The summary of the test results are shown based on the tests executed on specified browser that includes passed, failed, skipped. Usually the tests are skipped when the driver initialization fails.

You can click the respective links in Brief Summary table to view the test summary.

To download the log files for each test case, click the respective Download File link. If you have any test failures, you can use these files to debug them.

Test Status

Test Status is available in the test result email which is sent to the recipient after you execute the test cases. Following are different statuses in the test result email:

PASSED: The status of the test result is PASSED when the test case is run without any issues, and when the assertion is successful.

FAILED: The status of the test result is FAILED when the expected result does not match with the actual result of the test case, the assertion will fail and hence the test case status will be set to FAILED.

SKIPPED: Following are the scenarios where a test case can be skipped while testing, and the status of the test result can be SKIPPED.

• AWS Issue: AWS skips the test cases yet to run when the duration of the test run exceeds 150 minutes (AWS Device Farm default time limit) resulting in the SKIPPED status. This is applicable only for Native test results.
• TestNG issue: There are various scenarios where TestNG can skip the test cases during a test run. The most common scenario is, if a parent test case fails for any reason, TestNG will skip all the related child test cases, and the status of the test result is SKIPPED.

WARNED: The status of the test result is WARNED when the device farm returns any warning due to the issues from AWS.

STOPPED: The status of the test result is STOPPED when you abort the test case forcefully.

ERRORED: The status of the test result is ERRORED when the device farm returns any error due to the technical issue on AWS.

NOTE: WARNED, STOPPED, and ERRORED statuses are not applicable for DesktopWeb tests.

Troubleshooting Issues

The following errors can help you during troubleshooting if the runTest job fails:

• Error: Jasmine Tests can only be executed when the app is built in Debug mode.

  Solution: Make sure that you have selected the build mode as debug when the app is built before running the tests.
• Error: Please provide pool to test on.

  Solution: Make sure that you provide a value to AVAILABLE_TEST_POOLS parameter to run the native tests.
• Error: Sorry, You can't run test for Android Universal binary along with Android Mobile/Tablet.

  Solution: The universal binary tests both the Mobile and Tablet binaries are based on the availability of the devices in the device pool. So it is not required to provide mobile/tablet binary when you give universal binary.
• Error: Build parameter <parameter name> value is not valid URL!

  Solution: Make sure that the URL you provide for the following parameters is valid:
  • ANDROID_MOBILE_NATIVE_BINARY_URL
  • ANDROID_TABLET_NATIVE_BINARY_URL
  • IOS_MOBILE_NATIVE_BINARY_URL
  • IOS_TABLET_NATIVE_BINARY_URL

  • NATIVE_TESTS_URL

  • ANDROID_UNIVERSAL_NATIVE_BINARY_URL

  • DESKTOPWEB_TESTS_URL

  • IOS_UNIVERSAL_NATIVE_BINARY_URL

The builds that failed during the test can be tracked for the issues that caused the failure. For example, consider build #4 from the following screenshots of runTests job. To troubleshoot the issue, follow these steps.

1. From your project folder, navigate to Visualizer > Tests.



2. Select the runTests job, and then find the failed build.

   For example, find and click the link for build #4.



3. From the details page of the failed build, select the Console Output on the left panel. The Console Output Log opens in the right pane.



4. Scroll to find errors in the log that caused the build to fail. For example, you can trace an error that is related to invalid Android Tablet URL.



5. Check if the ANDROID_TABLET_NATIVE_BINARY_URL parameter is valid.

Alternatively you can troubleshoot the issue from the stages of Manual Testing.

To troubleshoot the issue from the Stage View, follow these steps:

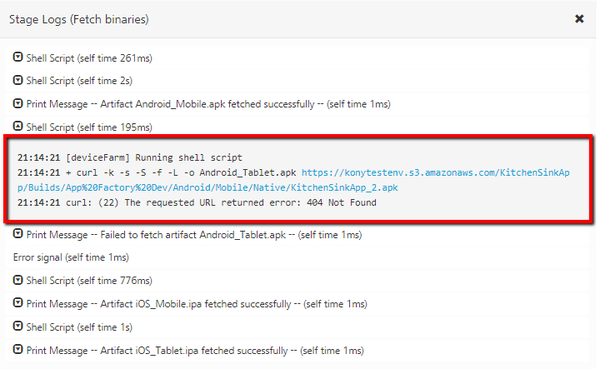

1. From the Stage View, point to the failed stage, and then click Logs.


2. From log messages in the Stage Logs window, identify the error message that corresponds to the failure of the build.

   For example, you can trace an error that is related to invalid Android Tablet URL.



3. Check whether the ANDROID_TABLET_NATIVE_BINARY_URL parameter is valid.

Auto Triggering Tests

Currently, there are two types of auto-triggered test jobs: scm-triggered (Watchers) and cron-triggered (Schedulers). Every project structure has folder called "Tests" in "Visualizer" sub-folder, that contains job for creation of auto-triggered jobs (createTrigger) and two sub-folders where created jobs are stored.

To setup auto-triggered job, perform the following steps:

1. Go to Tests folder under project's root folder.
2. Click on createTest job.



3. Provide all required parameters (they are the same as in "Facade" job).

IMPORTANT: Please note, that there is one additional parameter, which is called "CRON_SCHEDULE". If "CRON_SCHEDULE" parameter is given, then a cron-triggered job is created and stored in "Schedulers" sub-folder. If the parameter is not provided, a scm-triggered job is created and stored in "Watchers" sub-folder.



4. Check that the createTest job is complete.



IMPORTANT: Every Scheduler that is created, will have cron string in job's name to simplify the job search. Refer the image below.



IMPORTANT: Every Watcher that is created contains the branch name in the job name to simplify job search.
