Running Flyway jobs

To run the Flyway job for the first time, follow these steps:

  1. From the folder of your App Factory project, navigate to Database → Flyway.
  2. Select the Flyway job, and then select Build with parameters option from the menu on the left side. Alternatively, you can run the build with parameters by following either of these steps.
    • On the right-side of the job row, select the icon that represents Build with Parameters
    • Open the drop-down list (context-menu) for the Flyway job, and then select Build with Parameters

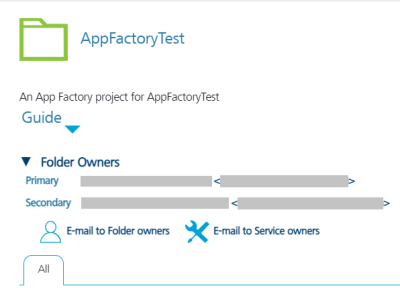

    NOTE: If you do not see the option, you might not have ownership permissions to the project. You can verify whether your name is listed in the Folder Owners section of the project. The Primary owner of the project can add users as secondary owners to grant permissions to the builds.

  3. Configure the build parameters for the job. For more information about the parameters, refer to the following sections.
    ParameterDescription

    SCM_URL

    Specifies the URL of the source control repository that contains the Flyway scripts. The URL can be an HTTPS URL or an SSH URL and must be accessible by App Factory.

    The format for an HTTPS URL is

    https://git-vendor.com/username/reponame.git

    The format for SSH URL is
    git@git-vendor.com:username/reponame.git

    Typically, a repository URL can be found by clicking a Code or Clone button.

    IMPORTANT:

    If you are using Azure DevOps as your Git vendor, the format of the Repository URL must adhere to the following syntax.

    • HTTPS URL syntax:
      https://dev.azure.com/organization-name/project-name/_git/repo-name
    • SSH URL syntax:
      git@ssh.dev.azure.com:v3/organization-name/project-name/repo-name

    SCM_BRANCH

    Specifies the branch of the source control repository that contains the specific version of the Flyway scripts that you want to use.

    SCM_CREDENTIALS

    Specifies the credentials that are used to access the source control repository.

    For more information, refer to Adding New Source Code Repository Credentials.

    ParameterDescription
    MIGRATION_TYPE

    Specifies the type of migration in the Flyway job. Based on the selection, refer to either of the following tables:

    DB_CREDENTIALS

    Specifies the credentials that are used to access the database and run the Flyway scripts.

    For more information, refer to Adding New Database Credentials.

    SQL SCRIPTS

    ParameterDescription

    LOCATION

    Specifies a comma-separated list of paths that contain the Flyway scripts, relative to the root of the source control repository.

    FLYWAY_COMMAND

    Specifies the commands that are run as part of the Flyway job. For example: migrate, info, or validate

    For more information, refer to Commands in the Flyway documentation.

    DB_CREDENTIALS

    Specifies the credentials that are used to access the database and run the Flyway scripts.

    For more information, refer to Adding New Database Credentials.

    OPTIONS

    Specifies command line options that are used with the Flyway command. For example: -schemas=dbpdblocal

    For more information, refer to Command-line in the Flyway documentation.

    JAR-BASED

    ParameterDescription

    MVN_GOALS_AND_OPTIONS

    Specifies the Maven goals and other command line options for the mvn command.

    JAR_ARGUMENTS

    Specifies the list of mandatory arguments (as a string; separated by spaces) that are passed to the JAR file. For example : -Ddb.name=dbxdb

    NOTE: Database user, password, host, port, and type will be fetched automatically from the fields provided inside DB_CREDENTIALS.

    MVN_PROJECT_LOCATION

    Specifies the location of the Maven POM file(excluding the name pom.xml). The path is relative to the root level of the repository. For example: If the root of the repository contains two directories, dir1 and dir2, and pom.xml is situated in the java folder inside dir1, then the path is dir1/java/.

    JAR_LOCATION

    Specifies the path to the JAR file(including the name of the JAR). For example: If the root of the repository contains two directories, dir1 and dir2, and example.jar is situated in the javaTarget folder inside dir1, then the path is dir1/javaTarget/example.jar.

    ParameterDescription

    RECIPIENTS_LIST

    Specifies a comma-separated list of the e-mail addresses that must receive notifications on the results of this job.

  4. After you configure all the parameters, click BUILD.

After a Build is successfully triggered, you can check the status of the build in the Build History panel. The following screenshot displays a build that is in progress (#4965) with the progress indicator icon.

You can click the icon to see the detailed output of the current build or click the progress bar to open the build page of the job. From the build page, you can click Console Output to display the detailed output of the running build.
