Configure Style Constants in Quantum Visualizer

From Quantum Visualizer V9 SP3 GA, the Skins tab in the project explorer has been renamed as the Themes tab. In the Themes tab, you can configure new Style Constants for Colors, Borders, Fonts, and Numeric in addition to the existing Skin functionalities. By using the Style Constants feature, you can create and apply pre-defined styles for colors, fonts, borders, and numeric for use throughout the project. Using a Style Constant for Color, you can define the values for the type, color, and opacity for a background. Using the Style Constant for Font, you can define the values the for color, type, opacity, family, weight, style, and size for a font. Using a Style Constant for Border, you can define the values for the size, color type (Single Color), color, opacity, and style for a border. Using the Style Constant for Numeric, you can define the numeric values within border and font constant (border size and font size).

NOTE: Starting with 202601 version, Style Constant support is added for Border and Numeric settings.

NOTE: From the V9 Service Pack 5 release, support to define Style Constants for Color with the Two Step Gradient and Multi Step Gradient Color Types has been added in Quantum Visualizer. For more information on how to configure the background type, refer Set the Skin Background.

For instance, the Infinity Retail Banking application is used as the base app on which customizations are made based on customer requirements. When a new prospect arrives, using the Style Constants feature, you can change the generic branding of the Retail Banking application with a branding that is specific to the prospective customer. Alternatively, an existing customer can use this feature to change their branding, if there have been any changes to their corporate branding. For example, a change in the logo or corporate branding colors, etc.

NOTE: If you delete a Style Constant that is applied in the project, the configuration remains as is, and the style constant is renamed as the Default style constant.

The following topics describe how to work with style constants and apply styles on skins:

Create a New Style Constant for Color

Using the Style Constant for Color feature, you can create a style constant based on the values of the Color, Type, and Opacity of the Background. Using these style constants, developers can instantly update the Skins present in a project. You can create multiple style constants for colors in a project.

To create a new style constant for color, follow these steps:

  1. From the Project Explorer, navigate to the Themes tab.
  2. Expand the Style Constants node.

  3. Right-click Color, and select Add New from the context menu.

    A new Style Constant for Color is added in the Color section with a default name, color1 .

Configure a Style Constant for Color

You can configure the Type, Color, and Opacity of a Style Constant for Color. The configuration changes made to the style constants are applied instantly in the project.

To configure the style constant for color, follow these steps:

  1. From the Project Explorer, navigate to the Themes tab.
  2. Expand the Style Constants node.

  3. Expand the Color node, and select the style that you want to configure.

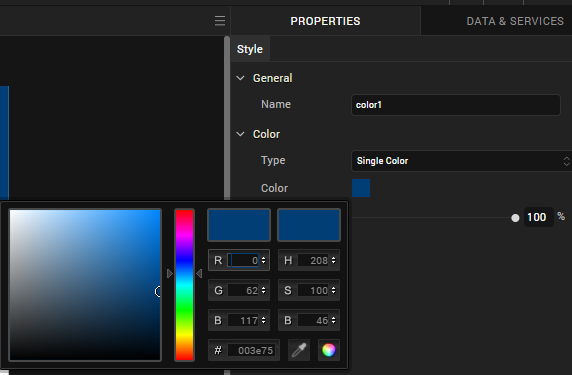

  4. From the Properties panel, in the Color section, configure the following fields:

    • Select the background type from the Type list, and configure the background Color.

      For more information on how to configure the background type and color, refer Set the Skin Background.

    • Select the Opacity for the background color.

    The Style Constant for Color is updated.

Create a New Style Constant for Font

Using the Style Constant for Font feature, you can create or define style constants for fonts based on the values of the Font Color, Opacity, Size, Font Family, Weight, and Font Style. Using these style constants, developers can instantly update the Skins present in a project. You can create multiple style constants for fonts in the project.

To create a new style constant for fonts, follow these steps:

  1. From the Project Explorer, navigate to the Themes tab.
  2. Expand the Style Constants node.

  3. Right-click Font, and select Add New from the context menu.

    A new style constant for font is added in the font section with a default name, font1 .

Configure a Style Constant for Font

Using the Style Constant for Fonts, you can configure the Color, Opacity, Size, Font Family, Weight, and Style for a font. The changes made to the style constants are applied instantly in the project.

To configure the style constant for font, follow these steps:

  1. From the Project Explorer, navigate to the Themes tab.
  2. Expand the Style Constants node.

  3. Expand the Font node, and select the style that you want to configure.

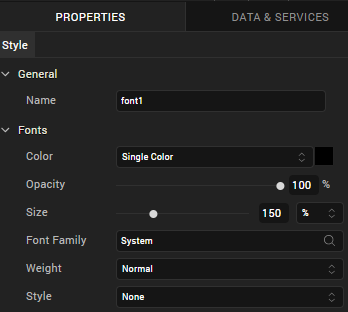

  4. From the Properties panel, in the Fonts section, configure the following fields:

    • From the Color list, select the desired font color.
    • Configure the font size from the Size field.
    • Select the font type from the Font Family list.
    • Select the weight for the font from the Weight list.
    • Select the style for font from the Style list.
  5. The Style Constant for Font is updated.

Create a New Style Constant for Border

Using the Style Constant for Border feature, you can create a style constant based on the values of the Size, Color, Type, Opacity, and Style of the Border. Using these style constants, developers can instantly update the Skins present in a project. You can create multiple style constants for borders in a project.

To create a new style constant for border, follow these steps:

  1. From the Project Explorer, navigate to the Themes tab.
  2. Expand the Style Constants node.

  3. Right-click Border, and then select Add New from the context menu.

    A new style constant for border is added in the Border section with a default name, border1 .

Configure a Style Constant for Border

You can configure the Size, Type, Color, Opacity, and Style of a Style Constant for Border. The configuration changes made to the style constants are applied instantly in the project.

To configure the style constant for border, follow these steps:

  1. From the Project Explorer, navigate to the Themes tab.
  2. Expand the Style Constants node.
  3. Expand the Border node, and then select the style that you want to configure.

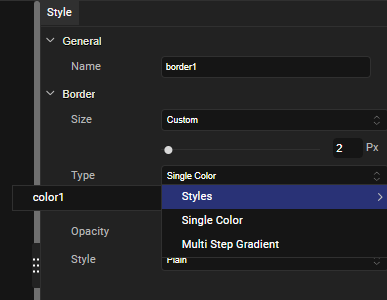

  4. From the Properties panel, in the Border section, configure the following fields:

    • Configure the border size from the Size field.
      • You also have an option to use Numeric constant to configure the Size of the border.
    • Select the border type from the Type list, and configure the border Color.

      For more information on how to configure the color, refer Set the Skin Background.
    • Configure the Opacity for the border color.
    • Select the style for border from the Style list.

    The Style Constant for Border is updated.

Create a New Numeric Style Constant

Using the Style Constant for Numeric, you can define the numeric values within border and font constant (border size and font size).

To create a new Numeric style constant, follow these steps:

  1. From the Project Explorer, navigate to the Themes tab.
  2. Expand the Style Constants node.

  3. Right-click Numeric, and then select Add New from the context menu.

    A new style constant for Numeric is added in the Numeric section with a default name, numeric1 .

Configure a Numeric Style Constant

You can configure a numeric value of a Style Constant. The configuration changes made to the style constants are applied instantly in the project.

To configure the Numeric style constant, follow these steps:

  1. From the Project Explorer, navigate to the Themes tab.
  2. Expand the Style Constants node.

  3. Expand the Numeric node, and then select the style that you want to configure.

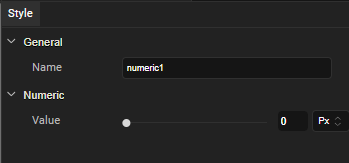

  4. From the Properties panel, in the Numeric section, adjust the Value slider for a desired numeric value.

    The Style Constant for Numeric is updated.

Apply Style Constants to Skins

By using the Style Constants feature, you can apply pre-defined styles for colors and fonts in Skins. When you configure a Style Constant for Color or Style Constant for Font, the style appears in the Style Constants section of the Color and Font Family lists in the Properties panel respectively. To apply a particular style to the Skin, you can select the style constant from the Styles list with a single click. Based on the style constants that you select, Quantum Visualizer updates the Skin accordingly. You can modify an existing style constant to instantly update the Skin or rebrand the app.

To apply the styles for skins, follow these steps:

  1. From the Project Explorer, navigate to the Themes tab.
  2. Expand the Skins node.

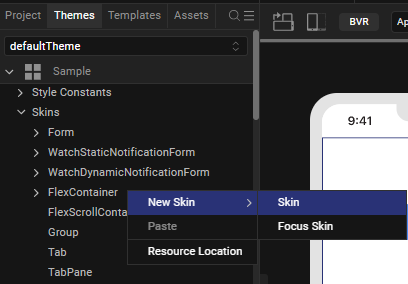

  3. Right-click the Widget for which you want to configure the skin style, and then select New Skin > Skin.

  4. From the Properties panel, in the Background section, select the type of background from the Type list.

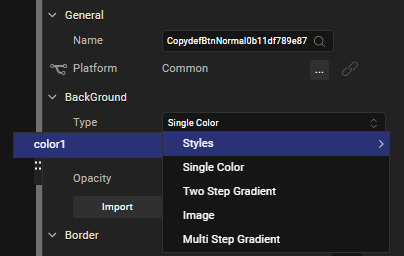

    You can also choose to apply a Style Constant for Color that is available in the project. To do so, click Styles, and then select a Style for Color from the list of existing styles that appears.

    Quantum Visualizer applies the background type, color, and opacity based on the style that you select.

  5. From the Properties panel, in the Fonts section, select a font from the Font Family list.

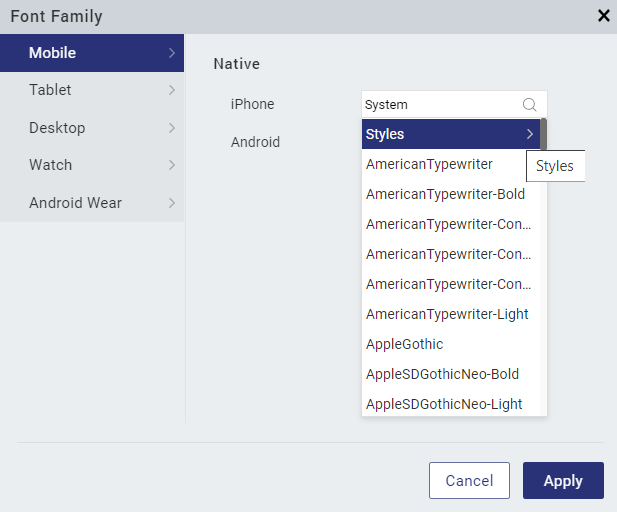

    You can also choose to apply a Style Constant for Font that is available in the project. To do so, click Edit for the Font Family, and then select a Style Constant for Font for each platform individually.

    Quantum Visualizer applies the Font Color, Opacity, Size, Font Family, Weight, and Font Style based on the style constant that you select.

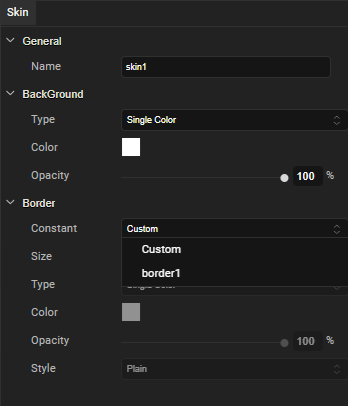

  6. From the properties panel, in the Border section, select Constant drop down. You can select from the list of Border constants defined or opt for a custom border definition at the skin level.

NOTE: Alternatively, you can select a Style Constant from the Token field of the Background, Fonts, and Border section of the Skin tab in the Properties panel.

NOTE: Numeric constants are a special type of constants that are not applied at skin level. These are applied only under Border constants (Border size) and Font constants (Font size).

Rename a Style Constant

When you create a new style constant, Quantum Visualizer generates a unique name for it. Temenos recommends that you rename the style constant as you might find it more useful and easily recognizable if you rename it.

To rename a style constant, follow these steps:

  1. From the Project Explorer, navigate to the Themes tab.
  2. Expand the Style Constants node.

  3. Right-click the Style Constant that you want to rename, and then select Rename from the context menu.

  4. Type a new name for the style constant, and then press Enter.

    The Style Constant is renamed, and the new name appears in the Style Constants section.

Importing Style Constants

If you have exported Style Constants from another Quantum Visualizer project, you can import them into the current project.

To import a style constant, follow these steps:

  1. From the Project Explorer, navigate to the Themes tab.
  2. Right-click the Style Constants node.
  3. From the context menu that appears, click Import.

    The Import dialog box appears.
  4. Locate the file that you want to import, select it, and then click Open.
    The style constants are imported into the current project.

NOTE: If a Style Constant with the same name already exists in the project, Quantum Visualizer appends a number to the name of the imported Style Constant.

Exporting Style Constants

You can export the Style Constants present in a project to import them for use in a different Quantum Visualizer project.

To export a style constant, follow these steps:

  1. From the Project Explorer, navigate to the Themes tab.
  2. Right-click the Style Constants node.
  3. From the context menu that appears, click Export.

    The Save As dialog box appears.
  4. Navigate to the folder where you want to save the exported Style Constants, and then click Save.

Quantum Visualizer exports all the Style Constants for Color and Font (along with the resources, if there are any) that are part of the project in a .zip file.
