Appendices

Prerequisite Packages

White-list the https://packages.microsoft.com/repos/azure-cli/ URL to allow the Quantum Fabric Containers on Azure Solution to download Azure CLI.

Network Settings - Accessing Azure SQL Database

Communication from the Temenos License servers originates from the following IP address, which must be white-listed in an organization's firewall configuration:

115.113.211.130

White-listing the Temenos IP address enables access to the Azure SQL Database.

Configuring NAT Gateway

A network address translation (NAT) gateway is used to enable instances in a private subnet to connect to the internet or other AWS services, but prevent the internet from initiating a connection with those instances. For more information about NAT, see NAT.

From V8 SP4 onwards, Quantum Fabric on Azure will support the routing of private subnets through a NAT instance.

To enable NAT Gateway:

  • Set the AZURE_FIREWALL_ENABLED flag in properties file to true.

Azure Firewall acts as NAT Gateway. All the internet traffic from Kubernetes nodes(VMs) is routed through the NAT Gateway. Deployment of Azure Firewall will increase the overall cost. The cost for Firewall in the east US region is $1.25/hour in Azure. On a monthly basis, the cost of azure firewall deployment costs around 900$. If you do not want to configure the NAT Gateway, disable the firewall deployment by setting the AZURE_FIREWALL_ENABLED flag to false.

Hosting your domain with Azure DNS

The Domain Name System, or DNS, is responsible for translating (or resolving) a website or service name to its IP address. Azure DNS is a hosting service for DNS domains, providing name resolution using Microsoft Azure infrastructure. By hosting your domains in Azure, you can manage your DNS records using the same credentials, APIs, tools, and billing as your other Azure services.

Follow these steps to create your first DNS zone and record using the Azure Portal:

  1. Create a DNS Zone
    1. Sign in to the Azure portal.
    2. On the Hub menu, click Create a resource > Networking > and then click DNS zone to open the Create DNS zone page.
    3. On the Create DNS zone page enter the following values, then click Create:
      4. Setting Value Details
      Name customdomainname.com The name of the DNS zone
      Subscription [Your subscription] Select a subscription to create the DNS zone in.
      Resource group Create new: testresourcegroup Create a resource group. The resource group name must be unique within the subscription you selected.
      Location West US



      NOTE: The resource group refers to the location of the resource group, and has no impact on the DNS zone. The DNS zone location is always global, and is not shown.

  2. Create a DNS Record
    1. Go to DNS Zones in the Azure portal and select customdomainname.com DNS zone in the list.
    2. At the top of the DNS zone page, select + Record set to open the Add record set page.
    3. On the Add record set page, enter the following values, and click OK. In this example, you are creating a CNAME record.

      4. Setting Value Details
      Name www Name of the record.
      Type CNAME Type of DNS record you want to create. Acceptable values are A, AAAA, CNAME, MX, NS, SRV, TXT, and PTR. For more information about record types, visit Overview of DNS zones and records.
      TTL 1 Time-to-live of the DNS request.
      TTL unit Hours

      Measurement of time for TTL value.
      IP Address Alias value

      This value is the Alias that the DNS record resolves.

  3. Update Name Servers
    Once you are satisfied that your DNS zone and records have been set up correctly, you need to configure your domain name to use the Azure DNS name servers. This enables other users on the Internet to find your DNS records. The name servers for your zone are given in the Azure portal:

    These name servers should be configured with the domain name registrar (where you purchased the domain name). Your registrar offers the option to set up the name servers for the domain. For more information, refer Delegate your domain to Azure DNS.

NOTE: Currently, Azure DNS does not support purchasing of domain names. If you want to purchase domains, you need to use a third-party domain name registrar. The domains can then be hosted in Azure DNS for management of DNS records.

Generating a PFX file from PEM

Different platforms and devices require SSL certificates to be converted to different formats. Use the following command to generate the .pfx file from a .pem file:



$ openssl pkcs12 -inkey private.pem -in public.pem -export -out certificate.pfx -passout
 pass:xxxxxxxx -certfile more.crt

Breaking down the command:

  • openssl – Is the command for executing OpenSSL
  • pkcs12 – Is the file utility for PKCS#12 files in OpenSSL
  • -export -out certificate.pfx – Helps export and save the PFX file as certificate.pfx
  • -inkey privateKey.key – Uses the private key file privateKey.pem as the private key to combine with the certificate.
  • -in infile - Is this parameter for input filename
  • -passout p - Is the output file to pass phrase source. Should be passed as pass:<password>
  • -certfile more.crt – This is optional, this is if you have any additional certificates you would like to include in the PFX file.

Extracting Logs from your Application

If you want to extract logs from a container, execute the following commands from your terminal:

COMMAND LOG

$ kubectl config current-context

 Display the current-context

$ kubectl config use-context <cluster-name>

 Set the default context to the cluster-name if the current context does not point to the Quantum Fabric cluster.
$ kubectl get pods Lists all the pods
$ kubectl logs -f <pod-name> To tail logs from a specific pod
$ kubectl logs pod-name > logs.txt To extract the logs of a specific pod to local file

Connecting to AKS nodes through Jumpbox

  1. Get the Public IP of the Jumpbox from the Azure Portal.

  2. Use the following SSH command to connect to the Jumpbox:

    $ ssh username@publicip

    The default username is devops and password is Devops@12345.

  3. To log in to Azure Kubernetes node from Jumpbox, you need to get the Private IP of the node from the Azure Portal.

  4. Use the private key of the public key you have provided during Quantum Fabric installation. Copy the private key to Jumpbox. Make sure you delete the key during logout.

  5. Execute the following command to login to AKS node:

    $ ssh -i key.pem username@privateIpOfNode

    The default username is azureuser.

Log Analytics

Microsoft Azure provides OMS (Operation Management Suite) Log Analytics solution to view the application logs. If you enable the flag for installation of log analytics solution (AZURE_LOG_ANALYTICS_ENABLED) in the properties file, then the Operations Management Workspace is created in the Azure Resource Group.

Follow these steps to view the application specific logs:

  1. Navigate to http://portal.azure.com/.

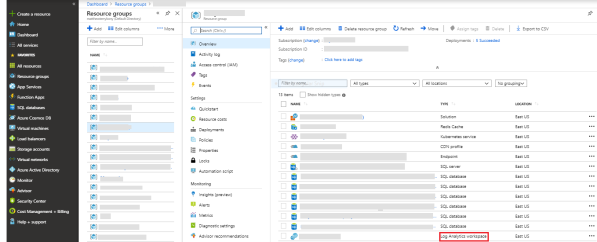

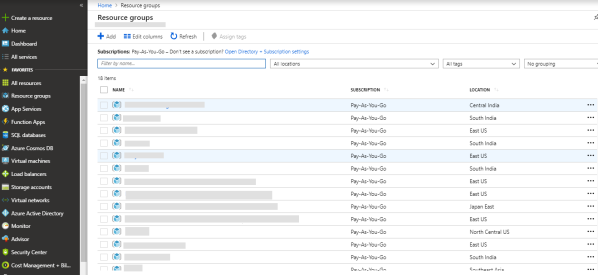

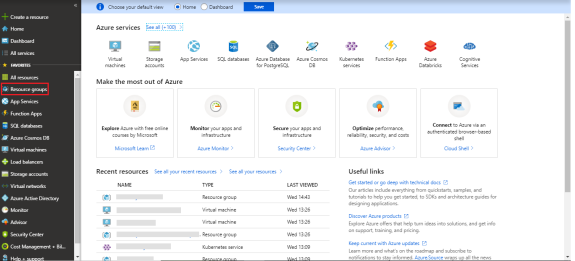

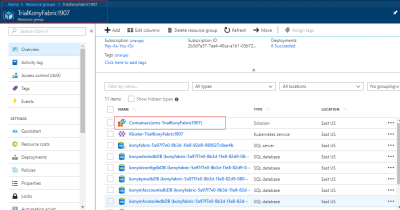

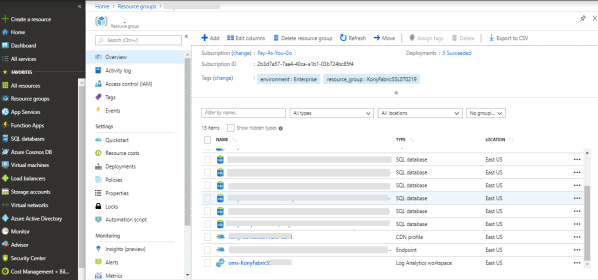

  2. On the home page, select the resource group in which the AKS cluster is created. You can find the resource group (AZURE_RESOURCE_GROUP) in the properties file which was used in the Quantum Fabric installation.

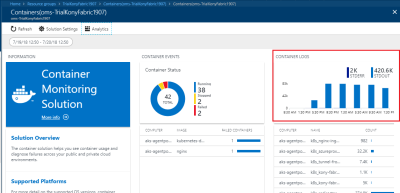

  3. Select Containers solution.

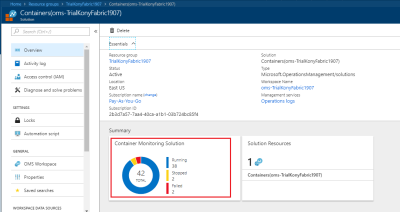

  4. Select Container Monitoring Solution.

  5. Select CONTAINER LOGS.

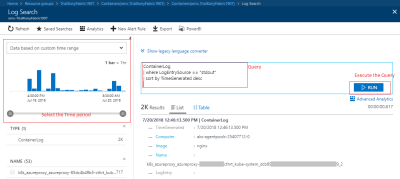

  6. In the Log Search page, you need to execute the following queries to fetch the logs.

    • ContainerLog | where LogEntrySource == "stdout" | sort by TimeGenerated desc - To fetch all the logs.
    • ContainerLog | where LogEntrySource == "stderr" | sort by TimeGenerated desc - To fetch all the error logs.

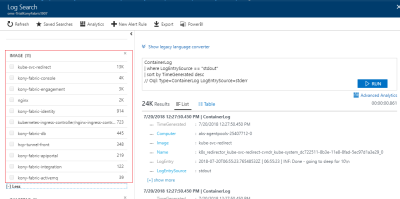

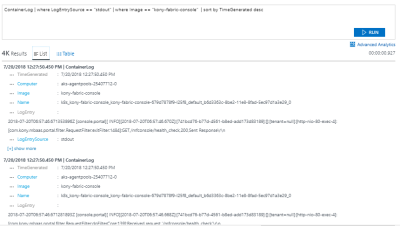

  • Using Docker Image Name:

    • If you want to view feature specific (console, identity, integration, engagement, API Portal) logs, select the respective image.

    Feature Docker image
    Console Kony-fabric-console
    Identity Kony-fabric-identity
    Integration Kony-fabric-integration
    Engagement Kony-fabric-engagement
    API Portal Kony-fabric-apiportal



    The image name gets appended to the query when you select the image. Execute the new query to get logs specific to the image.

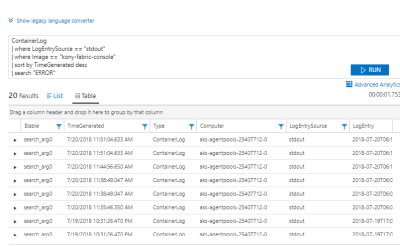

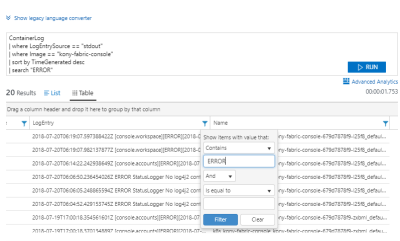

  • Using content

    • When you want to search specific key word in the logs execute the following query:

    ContainerLog | where LogEntrySource == "stdout" | where Image == "<image-name>" | sort by TimeGenerated desc | search "<keyword>"

    You can also apply filters to the logs. Filters can be applied to any column.

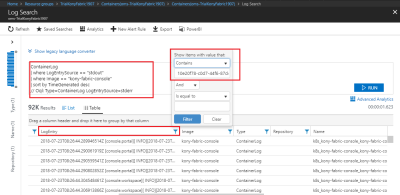

  • Using request ID

    • To view the logs based on request id, you need to apply a filter on the Log Entry column.

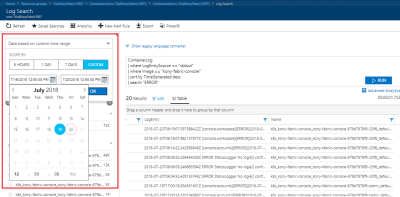

  • Using date range

    • You can select custom date range to access the logs.

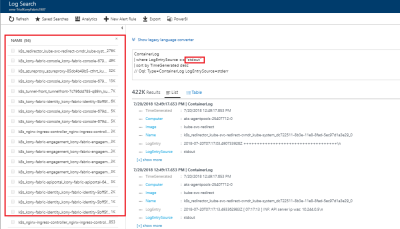

  • By pod name

    • You can fetch the logs specific to a pod in the kubernetes cluster.

    Feature Pod name prefix
    Console K8s_Kony-fabric-console
    Identity K8s_Kony-fabric-identity
    Integration K8s_Kony-fabric-integration
    Engagement K8s_Kony-fabric-engagement
    Api Portal K8s_Kony-fabric-apiportal

New Relic Monitoring

New Relic is a monitoring system that enables you to understand the performance of the application, dependencies, bottlenecks, and also increases the efficiency and accuracy. New Relic enables you to:

  • Get a complete overview of the application and the operating environment.
  • Manage your application's performance.
  • Identify and troubleshoot bottlenecks.
  • Analyze data about customers' usage and experience.
  • Monitor your technical resources and ecosystem.

Monitoring of Quantum Fabric on Azure using New Relic is performed at two levels:

  • Infrastructure Monitoring
  • Application Performance Monitoring

Infrastructure Monitoring enables you to monitor node-level metrics like CPU, Memory, Disk Usage, Average load, and I/O metrics.

Application Performance Monitoring enables you to view application performance trends like page load times, error rates, slow transactions, and a list of servers running the application in the real-time. It helps in identifying and troubleshooting the issues and metrics of Transactions, Databases, JVM's, Error analytics of each pod individually.

You must have a New Relic license key to enable New Relic Monitoring in Microsoft Azure cloud. For more information, refer license key.

Follow these steps to enable New Relic Monitoring in Microsoft Azure cloud:

  • To enable New Relic Infrastructure Monitoring, change the value of NEW_RELIC_INFRA_MONITORING_ENABLED to true in the  trial.properties  or  enterprise.properties file.
  • To enable New Relic Application Performance Monitoring, change the value of NEW_RELIC_APP_PERF_MONITORING_ENABLED to true in the  trial.properties  or  enterprise.properties file.
  • Provide the New Relic Authorized license key for the NEW_RELIC_LICENSE_KEY parameter in the  trial.properties  or   enterprise.properties  file.

Follow these steps to view the business insights or application performance results:

  1. Create a New Relic account to get the required NEW_RELIC_LICENSE_KEY to enable the New Relic Monitoring feature.

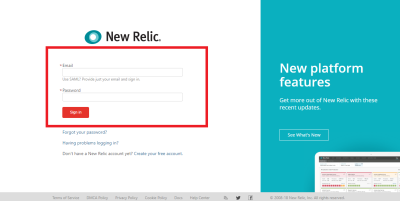

  2. Sign in to the New Relic portal by providing your credentials at https://rpm.newrelic.com/accounts/2056095/applications.

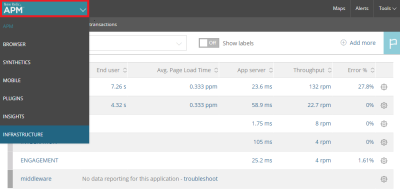

  3. Choose the required monitoring option in the upper left corner of the New Relic portal. Select APM for Application Performance Monitoring and INFRASTRUCTURE for Infrastructure Monitoring.

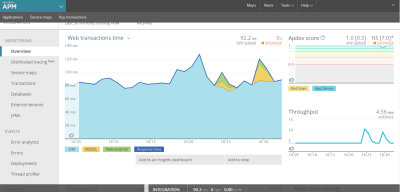

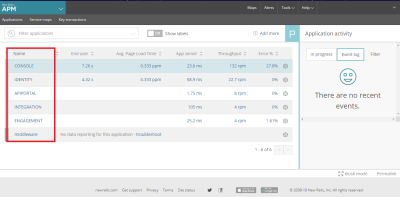

In APM, you can view the metrics of Quantum Fabric Kubernetes pods deployed on Microsoft Azure Kubernetes cluster.

Select a specific pod to view the performance metrics of that pod.

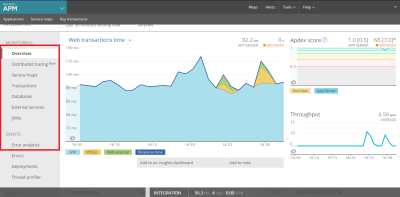

You can view various application performance metrics by selecting the options from theleft navigation pane.

  • Distributed tracing lets you trace the path of a single request in a complex system. You can understand the entire chain of events, discover the latency of that complete request, and know which step in the path is creating a bottleneck.
  • Service maps show the connections and dependencies of your app, including databases and external services.
    Health indicators and performance metrics show you the current operational status for every part of your architecture.

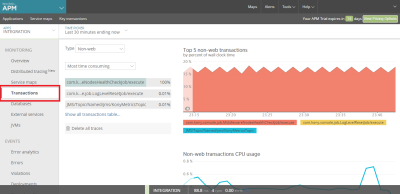

  • The Transactions screen provides an overview of the throughput metrics and the top five time-consuming transactions.

    • A transaction trace gives a detailed snapshot of a single transaction in your application. It records the available function calls, database calls, and external calls. You can use transaction traces to troubleshoot performance issues and get detailed low-level insight into how your app is working.

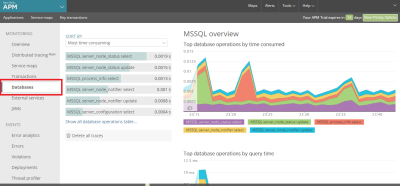

  • The Databases screen provides a detailed overview of the performance of your database - pointing out critical errors that are slowing down your application. The database overview provides a stack ranking of the most time-consuming database calls along with aggregated metrics around response times, throughput, and slow SQL traces.

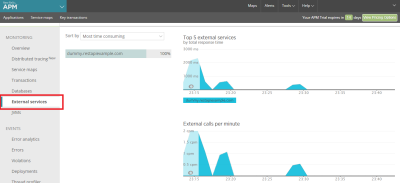

  • The External services screen captures calls to out-of-process services such as web services, resources in the cloud, and any other network calls. The external services dashboard provides charts with your top five external services by response time and external calls per minute.

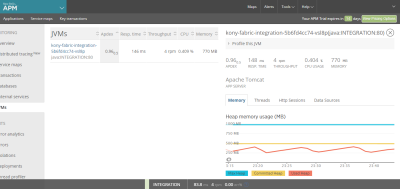

  • The JVMs screen captures metrics that include thread activity, HTTP session data, connection pool metrics, class load (or) unload counts, and so on.

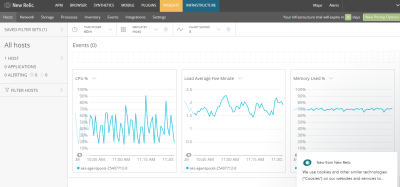

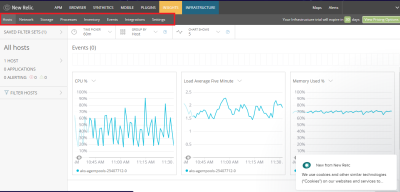

In the Infrastructure portal of New Relic Monitoring, you can view the Infrastructure metrics of Quantum Fabric.

You can view various infrastructure level metrics by selecting different options from the top navigation pane.

  • The Hosts screen helps you understand the performance metrics such as CPU usage, load average, and memory used.

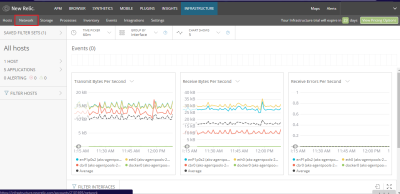

  • The Network screen provides real-time visibility into the health and performance of individual hosts, web servers, or other groups of resources across your network. Charts include bandwidth metrics by packet, bandwidth by bytes, and errors per second.

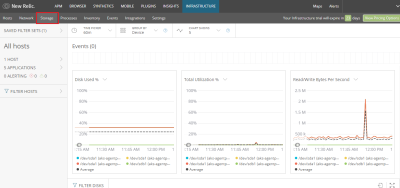

  • The Storage screen allows you to monitor the capacity and efficiency of your resources, overall utilization, disk usage, or I/O operations.

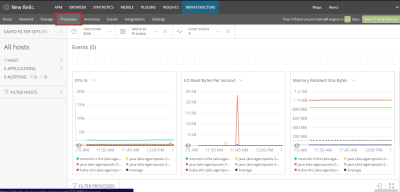

  • The Processes screen lets you view information about the processes running on your infrastructure and set alerts on process metrics.

  • The Inventory screen provides a real-time view to filter and search the inventories in each host's configuration
  • The Events screen is a live feed of important system and host activity; including inventory change events, configuration changes, and log analytics events. The event feed helps you understand the correlations between the events and the performance of your system. You can search and filter your events to decrease the mean time to detect and repair the infrastructure issues.

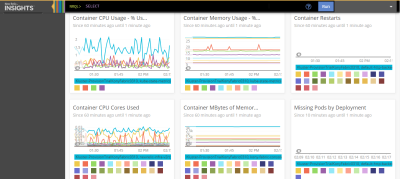

The INSIGHTS tab leverages the data from New Relic's other products to allow you to analyze user behavior, business transactions, customer insights, and more. Using the Insights interface, you can quickly and easily build dashboards to identify problems with your apps and hosts in real-time or to track ongoing data trends.

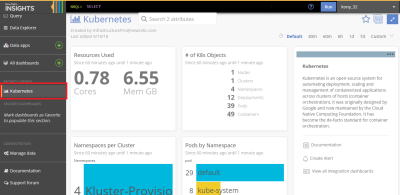

Select a Dashboard from Kubernetes insights window to view the data about container CPU usage, container memory usage, container restarts, resources used etc.

Rolling Updates

Microsoft Azure provides rolling updates feature to update the deployment with zero downtime by incrementally updating the pod instances with new pods.

Using the rolling updates feature, you can perform the following actions:

  • Update kubernetes pod configuration.
    • Update the properties in the deployment section.
    • Update the -d parameters.
  • Increase or decrease the pod count.
  • Update the docker image of the container present in the pod.
  • Linux machine with Ubuntu 16.04 installed.
  • Unzipped directory of the Quantum Fabric installation zip (Use the same unzipped directory of the Quantum Fabric installation which was used for the initial Quantum Fabric setup).
NOTE: You can update the following Quantum Fabric pods by using the rolling update feature:
  • kony-fabric-apiportal
  • kony-fabric-console
  • kony-fabric-engagement
  • kony-fabric-identity
  • kony-fabric-integration
  1. Log on to the Linux machine.
  2. Perform the following actions in the unzipped directory of the Quantum Fabric on Azure setup.
    1. Provide the inputs in the properties file.
    2. Execute the kf_setup.sh script.
    3. Execute kubectl commands to check the latest status of pods.

NOTE: Upgrade one pod at a time for smooth roll out of upgrade process.
Modify the properties file for the specific pod you want to upgrade, and execute the script.
Once the new pod is created, repeat the process for other pods.

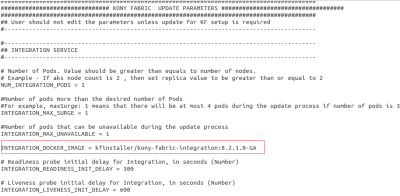

Provide Inputs in Properties File

NOTE: Use the same properties file that was used to create the cluster.

  • Make sure that all the values (AZURE_RESOURCE_GROUP, AZURE_SUBSCRIPTION_ID, SERVICE_PRINCIPAL_CLIENT_ID, SERVICE_PRINCIPAL_CLIENT_SECRET, AZURE_LOCATION, SSH_PUBLIC_KEY, SERVER_DOMAIN_NAME, NEW_RELIC_LICENSE_KEY, Azure DB service parameters, Azure Redis cache details) match with the existing cluster.
  • For Non-SSL cloud, SERVER_DOMAIN_NAME must be the Domain Name of the Azure Application Gateway. For example, <random_value>.cloudapp.net.
    You can find the Domain Name in Azure console using the following path:
    Home > resource group > application gateway > Frontend public IP address
  • For SSL Cloud, SERVER_DOMAIN_NAME must be the External Domain Name.

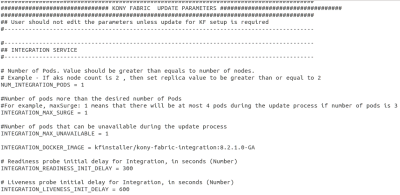

  • To execute the rolling update for a pod, set the values of the following parameters in the properties file:
    • MAX_SURGE - The number of pods that are created in addition to the desired number of pods during rolling update. Once the roll out is complete, the number of pods are reduced to the desired number of pods. MAX_SURGE is set to one in the properties file, by default.
      For example, if the number of pods is three, and maxSurge= 1, then there are at most four pods during the update process. Once the roll out is complete, the number of pods will be three.
    • MAX_UNAVAILABLE - The maximum number of pods that can be unavailable during the update process. MAX_UNAVAILABLE is set to one in the properties file, by default.
      For example, If the number of pods is three, and maxUnavailable=1, then there will be at least two pods in service during the update process. Once the roll out is complete, the number of pods will be three.

NOTE: The values of MAX_SURGE and MAX_UNAVAILABLE must not be zero simultaneously.

Execute the kf_setup.sh Script

  1. Make sure the current directory is /azure.
  2. Execute the kf_setup.sh script using the $bash kf_setup.sh command.
  3. Select the installation mode of the cloud that you want to upgrade (If the setup was done in enterprise mode, then select enterprise; otherwise, select trial mode).
  4. Select the execution mode. For rolling updates, select Update.
  5. If a database upgrade is required, choose to execute flyway migration. Otherwise, skip the flyway migration.

Execute kubectl Commands to Check Latest Status of Pods

Execute the following actions to check the latest status of the pods

  • Open a new terminal instance on the Linux machine.
  • While the rolling update is in progress, execute the following command in the terminal to view the current state of the pod:
    • $kubectl get pods
    $kubectl get deployments

    Wait till the desired and available counts for the specific pod are equal.

    If you want to upgrade other pods, repeat the process.

Modify the Properties in Deployment Section

The kubernetes rolling update allows you to update the values in the deployment object for every deployment of the Quantum Fabric pod.

You can update the following values in the kubernetes cluster:

  • Number of Pods
  • Docker image
  • Readiness init delay
  • Liveness probe init delay

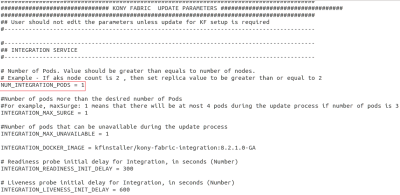

Update the values in the properties file based on your requirement. The image displays the options available to upgrade the Integration pod:

Modify -d parameters for the Pod

Perform the following actions to modify other parameter values for the pod:

  • Edit the required values in the properties file.
  • Increase the value of readiness_init_delay (or) liveness_init_delay of the pod by one second so that the kubernetes rolling update for the pod will get triggered.

IMPORTANT: The kubernetes rolling update starts only when the parameter values in the deployment object are modified. To modify the -d parameters in the configmap section, edit the liveness (or) readiness probe delay to perform the rolling update.

NOTE:

Consider a scenario where your Quantum Fabric setup does not contain New Relic Monitoring enabled, and you obtain the license key later. You can enable new relic on your Quantum Fabric setup by setting the following values  to true.

  • NEW_RELIC_INFRA_MONITORING_ENABLED = true
  • NEW_RELIC_APP_PERF_MONITORING_ENABLED = true

Provide the license key value in the properties file NEW_RELIC_LICENSE_KEY = <value>

You must increase the value of readiness (or) liveness probe by one second for a pod to trigger the rolling update and enable the new relic agent in the pod.

Perform the rolling update.

To increase the pod count, make sure that the kubernetes worker nodes (Azure VM’s) are scaled properly, and the number of pods is equal to the number of worker nodes.

For example, if you want to increase the integration pod count to three, then the number of worker nodes must be three.

Increasing kubernetes Worker Nodes in Azure

  1. Sign In to Microsoft Azure Console.
  2. Select the resource group in which the AKS Cluster is created.
  3. Select the Scale option on the cluster home page, increase (or) decrease the count of worker nodes based on your requirement. Save the configuration.

Increase (or) Decrease the Number of Pods

After increasing (or) decreasing the number of worker nodes (Azure VM’s), you can modify the pod count by following the given steps:

  1. Modify the node count of the pod in the properties file.
  2. Execute the kf_setup.sh file as described in the earlier section.

Modify the docker image in the properties file.

Execute the kf_setup.sh file as described in the earlier section.

Kubernetes Dashboard

You can access the Kubernetes dashboard in the Azure portal to view the information related to an application deployed in Azure Kuberntes cluster. Using the kubernetes dashboard, you can also view pod metrics such as CPU Usage, Memory Consumption, as well as Kubernetes objects like deployments, configmaps etc.

  • Linux machine with Ubuntu 16.04 installed
  • A valid Azure account
  • AKS Cluster deployed in Azure

  1. Access the Kubernetes dashboard in a browser by following these steps:

    1. Sign in to the Azure portal.
    2. Select the Resource Group in which the Kubernetes cluster is created.
    3. In the list of resources, select the created Kubernetes cluster.
    4. From the lower-right corner, select the View Kubernetes dashboard tab.


      The configuration screen appears:

  2. Initialize the Kubernetes dashboard by following these steps:

    1. Copy the code from the Open the Kubernetes dashboard by running the following command step. The code is as follows:


$az aks browse --resource-group <resource group name> --name <aks cluster name>
    2. On the upper-right corner, on the navigation bar, click the Power Shell icon.


      The bash terminal opens.
    3. In the Bash terminal, execute the command that you copied.

    4. Copy the response URL and open it in a browser to display the Kubernetes Dashboard for the requested resource group.

      The Kubernetes Dashboard is displayed on the browser.

You can view the summary of Kubernetes objects of a deployed application , such as daemon sets, jobs, pods, CPU usage, and memory usage.

Select options from the left navigation pane to view the detailed information of various Kubernetes objects. For example, select Daemon Sets to view the analytics specific to daemon sets.

  • Select Pods from the left pane to view the information about each pod.

  • Click Services from the left pane to get the IP address of the application.

You can also view more information about daemon sets, replica sets, replication controllers, jobs, deployments, pods, and stateful sets.

Pod Anti-Affinity

Pod anti-affinity is used to handle the creation of pods in worker nodes in Azure Kubernetes cluster for deploying a resilient application in the Kubernetes cluster. Certain rules are defined in a pod configuration which allows pod to be deployed only on a particular node when the required conditions are satisfied. No two pods of same kind will be deployed on a single node. Pod anti-affinity helps in distributing the pods across the cluster nodes and helps in creating resilient applications.

AKS Autoscaling

AKS autoscaling feature helps to scale the service in case of a spike or a drop in application traffic. Incase of a spike in traffic new pods need to be created and the cluster should create new worker nodes to deploy additional pods to serve the incoming traffic. Similarly, when there is a drop in traffic, nodes and pods need to scale down. This ability to automatically scale up or down the number of nodes in the AKS cluster helps in running an efficient and cost-effective cluster.

There are two components involved in auto scaling of AKS cluster.

  • Cluster Autoscaler: Scale the nodes in the cluster based on the pending pods which need to be deployed.
  • Horizontal Pod Autoscaler: Monitors the resource demand of pods. If a service needs more resources, the number of pods is automatically increased to meet the demand. You must give inputs of memory, CPU limit, and the min and max number of pods that can be scaled.

    • You can check the runtime usage of memory and CPU by using the following command (hpa is horizontal pod autoscaler):

    "kubectl get hpa"

    Whenever the usage of either the memory or the CPU exceeds the limit given for that particular pod, the Horizontal Pod Autoscaler is triggered and it starts scaling up the pod.

    As pod anti-affinity is implemented, multiple nodes of same component can’t be scheduled on a node to take care of fault-tolerance of deployed application.

    When the traffic goes down and the memory and CPU usage falls below the threshold values, newly created pods are terminated. This also results in scaling down of newly created nodes to the minimum number of nodes specified by the user.

For the details about user inputs, refer to the Configuration section.

Azure Resource Group Role Based Access Control (RBAC)

The way to control access to resources using RBAC is to create role assignments.
A role assignment is the process of binding a role definition to a user, group, or service principal at a particular scope for the purpose of granting access. You can create Role assignments using the Azure portal, Azure CLI, Azure PowerShell, Azure SDKs, or REST APIs.

The creation of Role Assignments has the following three elements:

  • Security Principal: An object that represents a user, group, or service principal that requests access to Azure resources.
  • Role Definition: A collection of permissions such as read, write, and delete. Roles can be generic, like owner; or specific, like virtual machine reader. you can either use the built-in roles or create custom roles for assigning.
  • Scope: A boundary that the access applies to. It can be specified at multiple levels such as management group, subscription, resource group or resource.

To create and remove role assignments, you must have Microsoft.Authorization/ roleAssignments/ * permission. The Owner or User Access Administrator roles can grant this permission.

  1. In the navigation list, select Resource groups.
  2. Select a resource group.
  3. Select Access control (IAM) to see the current list of role assignments at the resource group scope.

  4. Select Add to open the Add Permissions pane.
  5. The Add option is visible only if you have the permission to assign roles.

  6. In the Role drop-down list, select a role such as Virtual Machine Contributor.
  7. In the Select list, select a user, group, or application. If you don't see the security principal in the list, you can type in the Select box to search the directory for display names, email addresses, and object identifiers.
  8. Click Save to assign the role.
  9. After a few moments, the security principal is assigned the role at the resource group scope.

You can use the same process to assign a role at the subscription level, management group level.

NOTE: If the built-in roles do not meet the specific needs of your organization, you can create custom roles. Just like built-in roles, you can assign custom roles to users, groups, and service principals at subscription, resource group, and resource scopes. Custom roles are stored in an Azure Active Directory (Azure AD) directory and can be shared across subscriptions. Each directory can have up to 2000 custom roles. You can create custom roles with Azure PowerShell, Azure CLI, or the REST API.

NOTE: When planning the access control strategy, it is a best practice to grant users the least privilege to get their work done.

Block IP addresses in the Azure Web Application Firewall

Follow these steps to block IP addresses in the Azure Web Application Firewall:

  1. Log on to the Azure portal (portal.azure.com) using your Microsoft account credentials.

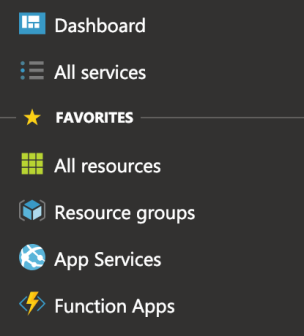

  2. Select the Resource group in which WAF is created.
  3. Select the Web Application Firewall resource.
  4. Select the subnet which has the WAF attached.

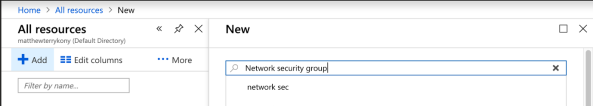

  5. Create a new Network Security Group (NSG).
  6. By default, NSG is not created for AppGateway.

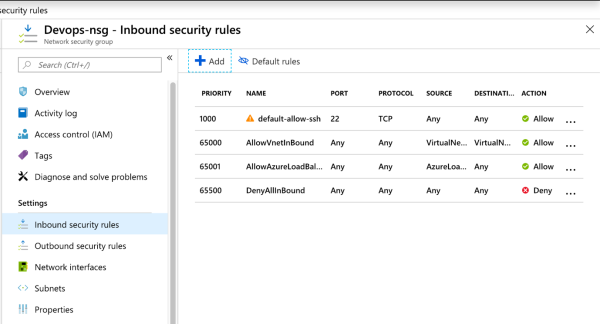

  7. Configure inbound rules in the Network Security Group.

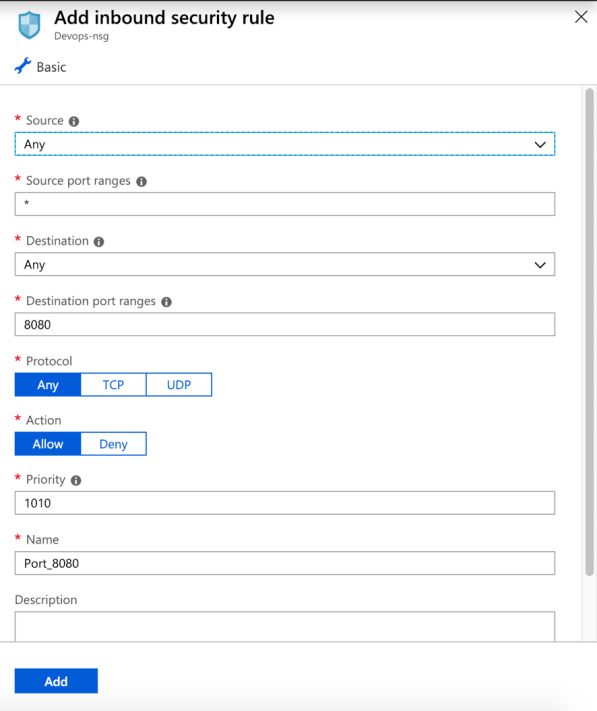

  8. Add new rules in the Network Security Group.

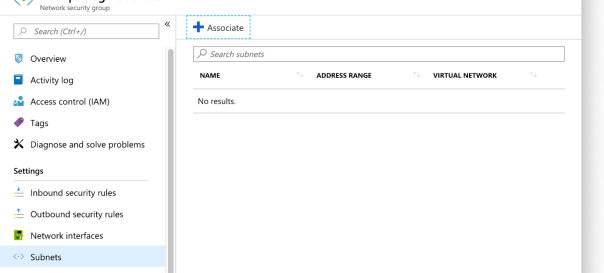

  9. Associate the AppGateway subnet with the Network Security Group.

Block IP addresses in the Azure CDN

Follow these steps to block IP addresses in the Azure Content Delivery Network (CDN):

  1. Log on to the Azure portal (portal.azure.com) using your Microsoft account credentials.
  2. Select the Resource group in which CDN is created.
  3. Go to CDN profile from the list of resources available in the Azure Resource Group.
  4. Click Manage from the top navigation bar.
  5. From the HTTP Large list, select Rules Engine.

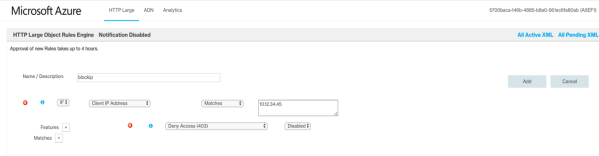

  6. Configure the new Rule.

Whitelist IP Address in Azure CDN

Automation of rules configuration is not supported by az-cli, therefore we need to access CDN manage portal to configure rules.

Follow these steps to whitelist IP addresses in the Azure Content Delivery Network (CDN):

  1. Log on to the Azure portal (portal.azure.com) using your Microsoft account credentials.
  2. Select the Resource group in which CDN is created.
  3. Go to CDN profile from the list of resources available in the Azure Resource Group.
  4. Click on the Manage from the top navigation bar to access CDN Manage Portal.
  5. Configure the new Rule.
  6. Set Deny Access (403) to Enabled.

    This determines whether all requests are rejected with a 403 Forbidden response or not.

    You can set Deny Access (403) to the values shown in the following table:

    ValueResult
    EnabledCauses all requests that satisfy the matching criteria to be rejected with a 403 Forbidden response.
    DisabledAllow the origin server to determine the type of response that will be returned.

NOTE: It takes some time for the rule to be propagated to the CDN edge nodes. Check the status of rule in CDN Manage Portal.

Configure Email Alerts for ClamAV and OSSEC

  1. Select OMS workspace from the list of resources available in the resource group, .

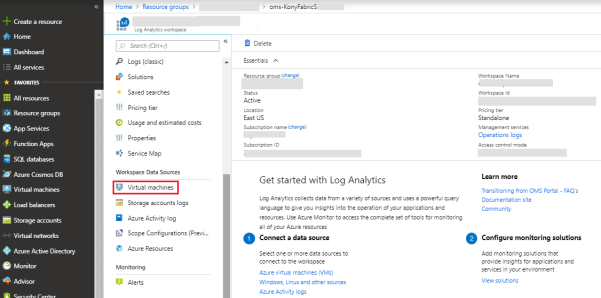

  2. Select virtual machines from the left navigation pane.

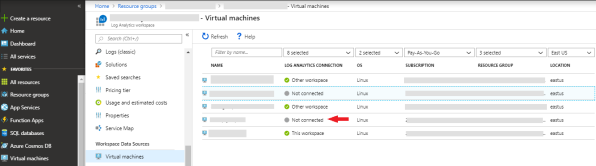

  3. From the list of available virtual machines, select the virtual machine from the required resource group.

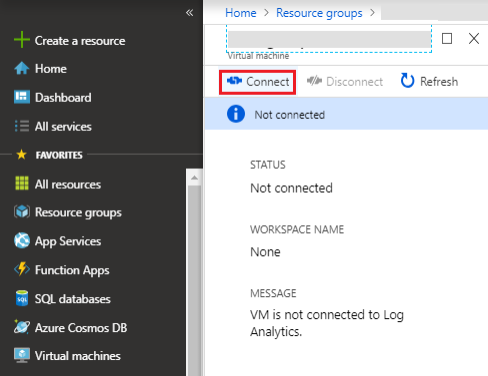

  4. Click Connect to install OMS agent on the selected virtual machine.

  1. Log on to the Azure portal (portal.azure.com) using your Microsoft account credentials.

  2. Select Resource Groups from the left navigation pane.

    All existing resource groups appear.
    Select the resource group in which the Log Analytics workspace is created.

  3. Click on Log Analytics Workspace.

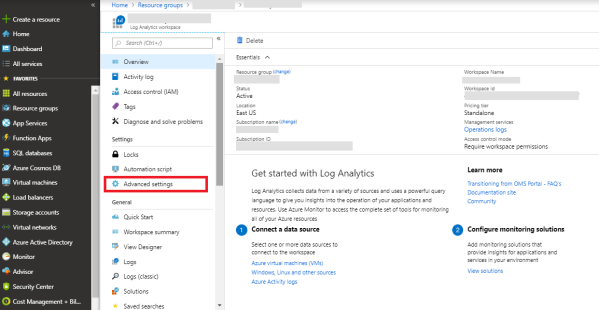

  4. Select Advance settings from the left navigation pane.

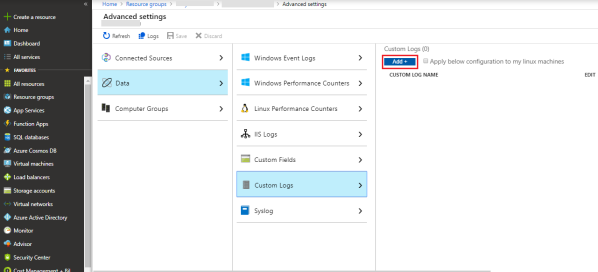

  5. Navigate to Data -> Custom Logs -> and click Add+ to create a new custom log.

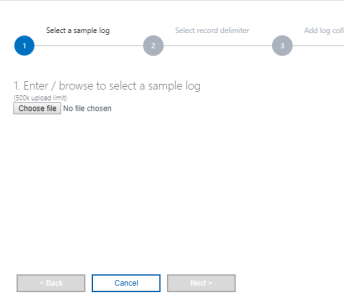

  6. Upload a sample log file which is of the same format as that of the logs to be collected.

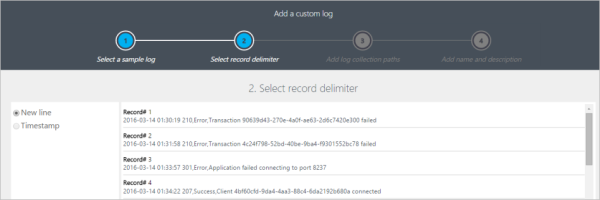

  7. Select the delimiter (newline/timestamp) based on which the logs are to be separated.

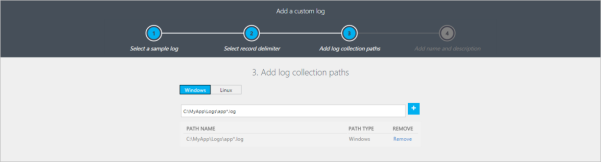

  8. Give the path from where the logs are to be fetched.

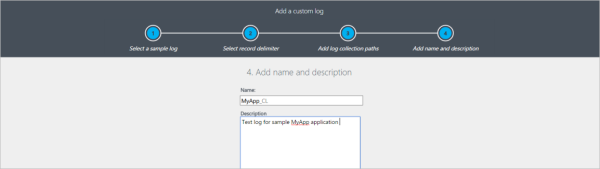

  9. Give a Name and Description for the custom log created and click OK.

  1. Log on to the Azure portal (portal.azure.com) using your Microsoft account credentials.

  2. Select Resource Groups from the left navigation pane.

    All existing resource groups appear.
    Select the resource group in which the Log Analytics workspace is created.

  3. Click on Log Analytics Workspace.

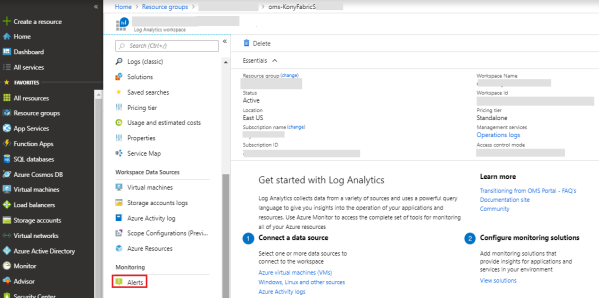

  4. Click Alerts on Monitoring.

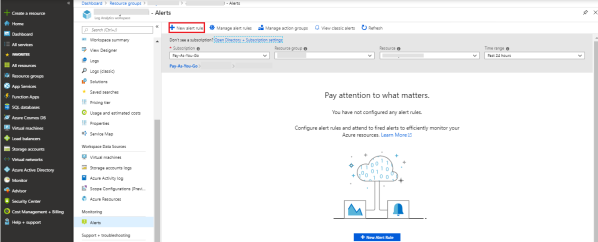

  5. Click New Alert Rule.

  6. Creation of an Alert rule consists of 3 steps.

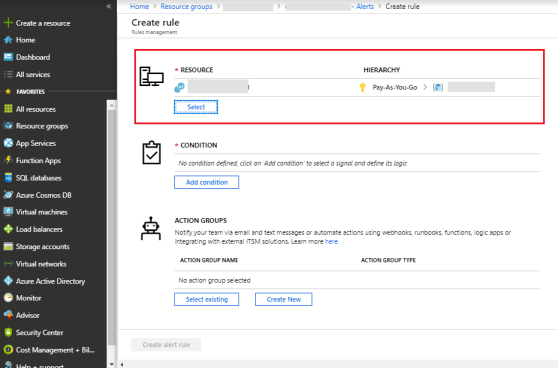

    • Select the resource for which you want to configure the alert.

    • Configure the condition on which the alert should be triggered.

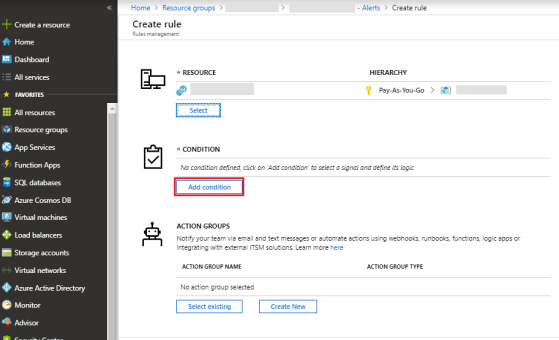

      Click Add condition.

    • Select the type of log on which the condition must be configured.

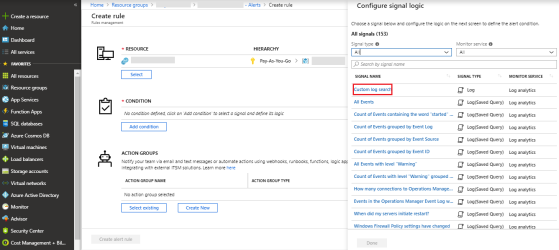

      Select Custom log search.

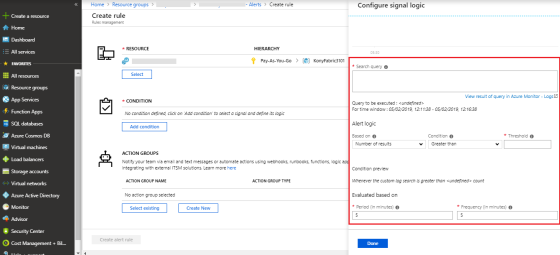

    • Write the query for which the alert should be triggered.

      Set the Alert logic, Condition, Threshold, Period and Frequency values.

      Click Done.

  7. Set the action group which must trigger or intimate the alert.

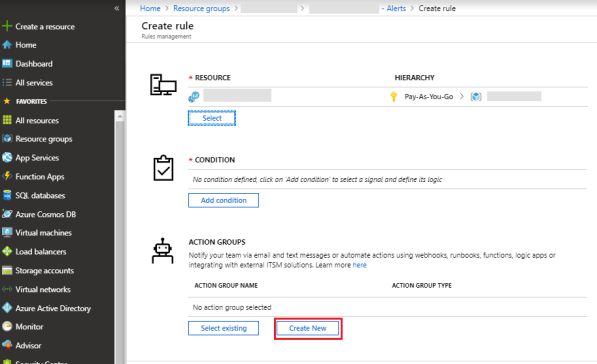

    Click Create new.

  8. Configure all the details.

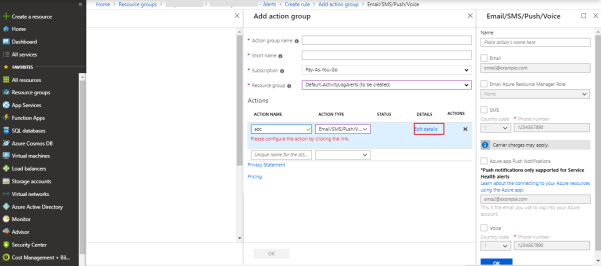

    Select action type as Email/SMS/Push/Voice.

    Give the mail id and other details to create the action group.
    Click Ok.

  9. Set the alert rule details such as Name and Description to be shown in the triggered mail.

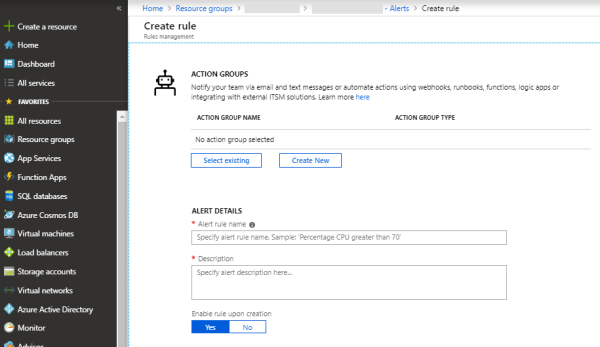

    Select yes for Enable rule upon creation.

VPN Reference Implementation

NOTE: VPN Reference Implementation is documented assuming that the FortiGate Firewall is used on the On-Premise setup. If you are using any other firewall, contact your system administrator for setting up the incoming policies from Quantum Fabric set up on Microsoft Azure Cloud.

A Site-to-Site VPN gateway connection is used to connect your on-premises network to an Azure virtual network over an IPsec or IKE (IKEv1 or IKEv2) VPN tunnel. This type of connection requires an on-premises VPN device that has an externally facing public IP address assigned to it. Follow the steps described here to setup a site-to-site VPN.

Configure Backup and Restore for Azure File Share

An Azure file share is a convenient place for cloud applications to write their logs, metrics, and crash dumps. Logs can be written by the application instances via the File REST API, and developers can access them by mounting the file share on their local machine. To understand how to create a file share on Azure, refer to Create a file share in Azure Files.

Before you back up an Azure file share, you must ensure that it is present in one of the supported Storage Account types.

  1. Create a Recovery Services Vault in the same region as your file share.
  2. After creating a vault or if you already have a vault, open your vault’s Overview page and click Backup.
  3. In the Backup Goal menu, from What do you want to back up?, choose Azure FileShare.
  4. Click Backup to configure the backup of Azure FileShare to your Recovery Services vault.

    A Select Storage Account window appears. A list of all the supported Storage Accounts in the region where your vault exists is displayed.

  5. From the given list of Storage accounts, you should select an account and click OK.

    Azure searches for the storage account for file shares that can be backed up. If you have recently added your file shares and do not see them in the list, allow a little time for the file shares to appear.

  6. From the list of File Shares that appear, select one or more of the file shares you want to back up and click OK.
  7. After choosing your file shares, the Backup menu switches to the Backup policy. From this menu either select an existing backup policy, or create a new one, and then click Enable Backup.

    8. After establishing a backup policy, a snapshot of the file shares will be taken at the scheduled time, and the recovery point is retained for the chosen period.

    You can also create an on-demand backup of file shares. For more information on this feature, refer to Create an on-demand backup.

If you need to restore an entire file share or individual files or folders from a Restore Point, do the following in the Backup Items menu.

  1. Open the Recovery Services Vault that contains the file share recovery points and click Backup Items. The list of Backup Item types appears.
  2. From the list, select Azure Storage (Azure Files). The list of Azure file shares appears.
  3. From the list of Azure file shares, select the desired file share. The Backup Item details appears.
  4. From the Backup Item menu, choose Restore Share to restore an entire file share from a desired Point-in-time.
  5. From the list of Restore Points that are displayed, select one. The selected restore point will be used to Overwrite your current file share or Restore it to an alternate file share in the same region.

Azure Files provides the capability to take share snapshots of file shares. Share snapshots capture the share state at that point in time.

Snapshots can be of the following types, based on the operating system in which they're being captured.

  • Logical Volume Manager (LVM) snapshots for Linux systems
  • Apple File System (APFS) snapshots for MacOS
  • Volume Shadow Copy Service (VSS) for Windows file systems. NTFS and ReFS are examples of VSS.

The az storage share snapshot command must be used to create a snapshot of an existing share under the specified account.

Command



az storage share snapshot --name [--account-key] [--account-name] [--connection-string] [–metadata] [–quota] [--sas-token] [–subscription] [–timeout]

Example



SNAPSHOT=$(az storage share snapshot --account-name $STORAGEACCT  --account-key $STORAGEKEY  --name "myshare"  --query "snapshot" | tr -d '"')

The az storage file copy start command can be used to restore a file. Perform the following steps to restore from a share snapshot:

  1. Delete the sample file (for example: SampleUpload.txt) that you have uploaded earlier, so you can restore it from the snapshot.
    2.

az storage file delete --account-name $STORAGEACCT --account-key $STORAGEKEY --share-name "myshare" --path "myDirectory/SampleUpload.txt"
  2. Build the source URI for a snapshot restore.
    3.

URI=$(az storage account show --resource-group "myResourceGroup" --name $STORAGEACCT --query "primaryEndpoints.file" | tr -d '"')


URI=$URI"myshare/myDirectory/SampleUpload.txt?sharesnapshot="$SNAPSHOT
  3. Restore SampleUpload.txt from the share snapshot.
    4.

az storage file copy start --account-name $STORAGEACCT --account-key $STORAGEKEY --source-uri $URI --destination-share "myshare" --destination-path "myDirectory/SampleUpload.txt"

Setting custom VNet and Subnet ranges

Steps to use custom VNet and Subnet ranges for Azure Quantum setup:

For Azure installation, we use the 10.X.X.X/8 VNet and Subnet ranges. In a few cases where Quantum Fabric must connect to the customer backend network which also has IP ranges in the same private address space, you can use a different private address range for Azure Quantum installation. Perform the following steps to use a different private IP address range.

  1. Open the input properties file <Installation Directory>/conf/enterprise.properties.
  2. Find properties related to vnet and subnet ranges starting from the VNET_ADDRESS_SPACE property.
  3. Update all the properties to use the preferred private address range. For example: 192.168.X.X.
  4. Also, update the network.properties file located under <Installation Directory>/conf/ to use address ranges matching the custom private address range.

Features and Supported Regions

Following is the list of features and their supported regions. If the region specified by the user’s input(AZURE_LOCATION property) does not support a specific feature, then that feature is skipped and an alternate option is installed.

  • Regions where WAF v2 is not supported:

    australiacentral,southafricanorth,uaenorth,westcentralus

  • Regions where CDN is supported:

    australiaeast, australiasoutheast, brazilsouth, canadacentral, canadaeast,
centralindia, centralus, eastasia, eastus, eastus2, japaneast, japanwest,
northcentralus, northeurope, southcentralus, southindia, southeastasia, westeurope,
westindia, westus, westcentralus

  • Regions where multiple availability zones are supported for AKS:

    centralus, eastus2, eastus, francecentral, japaneast, northeurope,
southeastasia, uksouth, westeurope, westus2

  • Regions where multiple availability zones are supported for Application Gateway:

    centralus,eastus,eastus2,westus2,francecentral,
northeurope,uksouth,westeurope,japaneast,southeastasia

  • Regions where ZRS is not supported for Storage account:

    westus2,eastus,eastus2,northeurope,westeurope,southeastasia,
francecentral,japaneast,centralus,uksouth,australiaeast,southafricanorth
