ComboBox Properties

---

Enables you to control accessibility behavior and alternative text for the widget.

For more information on using accessibility features in your app, refer Accessibility appendix.

Syntax

accessibilityConfig

Type

Object

Read/Write

Read + Write

Remarks

The accessibilityConfig property is enabled for all the widgets which are supported under the Flex Layout.

The accessibilityConfig property is a JavaScript object which can contain the following key-value pairs.

a11yLabel [String]

Optional. Specifies alternate text to identify the widget. Generally the label should be the text that is displayed on the screen.

a11yValue [String]

Optional. Specifies the current state/value associated with the widget so that the user can perform an action. For example, a checkbox is in selected state or unselected state. On the Android platform, the text specified for a11yLabel is prefixed to the a11yValue.

a11yHint [String]

Optional. Specifies the descriptive text that explains the action associated with the widget. On the Android platform, the text specified for a11yValue is prefixed to the a11yHint.

a11yHidden [Boolean]

Optional. Specifies if the widget should be ignored by assistive technology. The default option is set to false. This option is supported on iOS 5.0 and above, Android 4.1 and above, and SPA

Android limitations

• If the results of the concatenation of a11y fields result in an empty string, then accessibilityConfig is ignored and the text that is on widget is read out.
• The soft keypad does not gain accessibility focus during the right/left swipe gesture when the keypad appears.

SPA/Desktop Web limitations

• The behavior of accessibility depends on the Web browser, Web browser version, Voice Over Assistant, and Voice Over Assistant version.
• Currently SPA/Desktop web applications support only a few ARIA tags. To achieve more accessibility features, use the attribute a11yARIA. The corresponding tags will be added to the DOM as per these configurations.

Example

This example uses the button widget, but the principle remains the same for all widgets that have an accessibilityConfig property.



//This is a generic property that is applicable for various widgets.
//Here, we have shown how to use the accessibilityConfig Property for button widget.
/*You need to make a corresponding use of the accessibilityConfig property for other applicable widgets.*/

Form1.myButton.accessibilityConfig = {
    "a11yLabel": "Label",
    "a11yValue": "Value",
    "a11yHint": "Hint"
};

Platform Availability

• Available in the IDE
• iOS, Android, SPA, and Desktop Web

---

---

Specifies the anchor point of the widget bounds rectangle using the widget's coordinate space.

Syntax

anchorPoint

Type

JSObject

Read/Write

Read + Write

Remarks

The value for this property is a JavaScript dictionary object with the keys "x" and "y". The values for the "x" and "y" keys are floating-point numbers ranging from 0 to 1. All geometric manipulations to the widget occur about the specified point. For example, applying a rotation transform to a widget with the default anchor point causes the widget to rotate around its center.

The default value for this property is center ( {"x":0.5, "y":0.5} ), that represents the center of the widgets bounds rectangle. The behavior is undefined if the values are outside the range zero (0) to one (1).

Example

Form1.widget1.anchorPoint = {
    "x": 0.5,
    "y": 0.5
};

Platform Availability

• iOS, Android, Windows, and SPA

---

---

Specifies the skin that must be used to block the interface until the action in progress (for example, a service call) is completed.

Syntax

blockedUISkin

Type

String

Read/Write

Read + Write

Remarks

The default value for this property is none. That means no skin is applied. To specify a skin, select a skin from the list.

Note: For the skin to be available in the list, you must add a skin for Blocked UI under Widget Skins.

Example

//Sample code to set the blockedUISkin property for a ComboBox Widget.
frmCombobox.myCombobox.blockedUISkin="blockUiSkn";

Platform Availability

• Available in the IDE
• SPA (iPhone/Android/BlackBerry/Windows NTH)

---

---

This property specifies the alignment of the text on the widget with respect to its boundaries.

Syntax

contentAlignment

Type

Number

Read/Write

Read+Write

Remarks

The default value for the property is CONTENT_ALIGN_CENTER.

The following are the available options:

• constants.CONTENT_ALIGN_TOP_LEFT
• constants.CONTENT_ALIGN_TOP_CENTER
• constants.CONTENT_ALIGN_TOP_RIGHT
• constants.CONTENT_ALIGN_MIDDLE_LEFT
• constants.CONTENT_ALIGN_CENTER
• constants.CONTENT_ALIGN_MIDDLE_RIGHT
• constants.CONTENT_ALIGN_BOTTOM_LEFT
• constants.CONTENT_ALIGN_BOTTOM_CENTER
• constants.CONTENT_ALIGN_BOTTOM_RIGHT

Limitations

Desktop Web/ SPA platforms do not support contentAlignment property in Camera widget, ComboBox widget and ListBox widget.

Example

/*Sample code to set the contentAlignment property of the widgetID Button widget in frmHome Form.*/

frmHome.widgetID.contentAlignment=constants.CONTENT_ALIGN_TOP_LEFT;

Platform Availability

• Available in IDE
• Available on all platforms

---

---

Specifies the image to be used for the drop-down box indicator. This is an inverted triangle by default. If you do not specify an image, the drop-down box displays the default image.

Syntax

dropDownImage

Type

String/image object

Read/Write

No

Remarks

For iOS platform, the drop down image should be 20px * 33px for non retina devices and for retina devices the image size should be 40px * 66px.

Example

Using a locally defined image:

//Sample code to set the dropDownImage property for a ComboBox Widget.
frmCombobox.myCombobox.dropDownImage="ddimage.png";

Using a Kony image object (kony.image):

//Sample code to set the dropDownImage property for a ComboBox Widget using Image Object

var imgObjRef = kony.image.createImage("local.png");
frmCombobox.myCombobox.dropDownImage=imgObjRef;

Platform Availability

• Available in the IDE
• iOS
• BlackBerry

---

---

The property enables you to improve the performance of Positional Dimension Animations.

Syntax

enableCache

Type

Boolean

Read/Write

Read + Write

Remarks

The default value for this property is true.

Note: When the property is used, application consumes more memory. The usage of the property enables tradeoff between performance and visual quality of the content. Use the property cautiously.

Example

Form1.widgetID.enableCache = true;

Platform Availability

• Available in the IDE.
• Windows

---

---

Specifies the look and feel of the ComboBox when in focus.

Syntax

focusSkin

Type

String

Read/Write

Read + Write

Remarks

In Desktop Web platform, Chrome browser does not support if the properties defined in font tab are different for skin and focusSkin.

Note: You must be aware of the following:
1. On J2ME non-touch devices, if you do not specify the focusSkin, it is not possible to identify the focus change between the widgets.
2. Mobile Web does not support this property, instead browser specific focus will be applied.
3. On Windows Platform, focusSkin is applied only to the selected item, but not to the entire widget when in focus.

Example

//Sample code to set the focusSkin property for a ComboBox Widget.

frmCombobox.myCombobox.focusSkin="comboFSkin";

Platform Availability

• Available in the IDE
• Available on all platforms

---

---

Specifies if the group cells style must be applied.

Syntax

groupCells

Type

Boolean

Read/Write

No

Remarks

The default value for this property is false. This property is applicable only when viewType is set as COMBOBOX_VIEW_TYPE_TABLEVIEW.

Example

//Sample code to enable the groupCells property for a ComboBox Widget.

frmCombobox.myCombobox.groupCells=true;

Platform Availability

• Available in the IDE
• iPad
• iPhone

---

---

Specifies the look and feel of a widget when the cursor hovers on the widget.

Syntax

hoverSkin

Type

String

Read/Write

Read + Write

Example

Setting the hoverSkin property on an existing widget

FormHover.widgetID.hoverSkin="theHoverSkin";
//theHoverSkin is a hover skin created under Skins tab

Note: To apply hoverSkin for dynamically created widgets or cloned widgets, assign hoverSkin dynamically after adding the widget to the form hierarchy. This is applicable for the Desktop web platform.

formid.widgetid.hoverSkin = "skinname";

Platform Availability

• Available in the IDE
• This property is available on Windows Tablet

---

---

id is a unique identifier of button consisting of alpha numeric characters. Every ComboBox should have a unique id within an Form.

Syntax

id

Type

String - [Mandatory]

Read/Write

Read + Write

Example

//Defining the properties for ComboBox with the id:"combobox1"
var comboBasic = {
    id: "combobox1",
    isVisible: true
};

var comboLayout = {
    containerWeight: 100
};

var comboPSP = {};

//Creating the ComboBox.
combo = new kony.ui.ComboBox(comboBasic, comboLayout, comboPSP);

//Reading the id of the ComboBox
alert("ComboBox ID is ::" + combo.id);

Platform Availability

• Available in the IDE
• Available on all platforms

---

---

A custom JSObject with the key value pairs that a developer can use to store the context with the widget. This will help in avoiding the globals to most part of the programming.

Syntax

info

Type

JSObject

Read/Write

Read + Write

Remarks

This is a non-Constructor property. You cannot set this property through widget constructor. But you can read and write data to it.

Info property can hold any JSObject. After assigning the JSObject to info property, the JSObject should not be modified. For example,

var inf = {
    a: 'hello'
};
widget.info = inf;

//works
widget.info.a = 'hello world';

/*This will not update the widget info a property to Hello world.
widget.info.a will have old value as hello.*/

Example

//Sample code to set info property for a ComboBox widget

frmCombobox.myCombobox.info = {
    key: "comboboxitems"
};

//Reading the info of the CollectionView widget.
kony.print("Combobox widget info:" +frmCombobox.myCombobox.info);

Platform Availability

• Not available in the IDE
• Available on all platforms

---

---

While building iPhone applications that support or provide text input, it is necessary to create some extra buttons (or other controls) beyond the ones provided by the default keyboard interface. Kony AppPlatform by default, adds the Previous, Next, and Done buttons to the applicable input controls. These buttons allow specific operations needed by your application, such as moving to the next or previous text field, making the keyboard disappear and so on. The area above the keyboard is known as Input Accessory View.

Syntax

inputAccessoryViewType

Type

Number

Read/Write

Yes

Remarks

The default value for this property is COMBOBOX_INPUTACCESSORYVIEW_DEFAULT.

This property, allows you to specify the type of accessory view that will be shown for all the input controls for Combobox widget.

Note: For iOS, a header with 'Prev' and Next' buttons is added to the keypad by default. You can turn off this header at three levels: application-level, form-level, and widget-level.

To know more about how to set inputAccessoryViewType property at application-level and form-level, you can refer the inputAccessoryViewType property under Flexform widget.

To turn on/off the header at widget-level, assign any of the following constants to the inputAccessoryViewType property. You must specify each constant with the ‘constants.xx’ prefix.

• COMBOBOX_INPUTACCESSORYVIEW_NONE: Use this option if you do not want to specify the toolbar. This option should be used carefully, as setting this option for widgets like calendar leaves the user with no option to select and drop-down like a wheel calendar.
• COMBOBOX_INPUTACCESSORYVIEW_DEFAULT:Specifies that the toolbar that is defined in the Application level settings. To set the Application level settings, right-click on the project and navigate to Properties> Native App>iPhone/iPad.
• COMBOBOX_INPUTACCESSORYVIEW_NEXTPREV: Specifies the navigation options as Next, Previous, and Done for a form.

• COMBOBOX_INPUTACCESSORYVIEW_CANCEL: Specifies that the input accessory view has a Cancel button. This constant does not trigger any events.

Example

//Sample code to set the inputAccessoryViewType property for a ComboBox Widget.

frmCbox.myCbox.inputAccessoryViewType=constants.COMBOBOX_INPUTACCESSORYVIEWTYPE_DEFAULT;

Platform Availability

• Available in the IDE
• iPhone
• iPad

---

---

This property controls the visibility of a widget on the form.

Syntax

isVisible

Type

Boolean

Read/Write

Read + Write

Remarks

The default value for this property is true.

You can set the visibility of a widget dynamically from code using the setVisibility method.

Example

//Sample code to set the isVisible property for a ComboBox Widget.

frmCombobox.myCombobox.isVisible=true;

Platform Availability

• Available in the IDE
• Available on all platforms

---

---

This property allows you to enable/disable the horizontal scrolling for the selected item in the ComboBox Widget.

Syntax

lockTextScroll

Type

Boolean

Read/Write

Read + Write

Remarks

The default value for this property is false.

If set to true, the scrolling for the selected item is disabled. If set to false, the scrolling for the selected item is enabled.

Example

//Sample code to enable the lockTextScroll property for a ComboBox Widget.

frmCombobox.myCombobox.lockTextScroll=true;

Platform Availability

• Not available in the IDE
• This property is available on Windows Phone 8/8/1 platforms

---

---

Specifies the set of values that must be displayed for the user to make a selection from the available choices.

Syntax

masterData

Type

Array

Read/Write

Read + Write

Remarks

The default value for this property is user defined. You must specify the key and the display value

To specify the set of values, click the Ellipsis () button against the property to open the MasterData for ComboBox window.

In the Master Data window, you can specify the Key, Display Value, i18n Key, and the Accessibility Config. You can use the Selected column to specify the choice to be shown as selected when rendered. You can do this by selecting true against the choice that you wish to show as selected.

If the key or the display value is nil, the value will not be listed as one of the available choices.

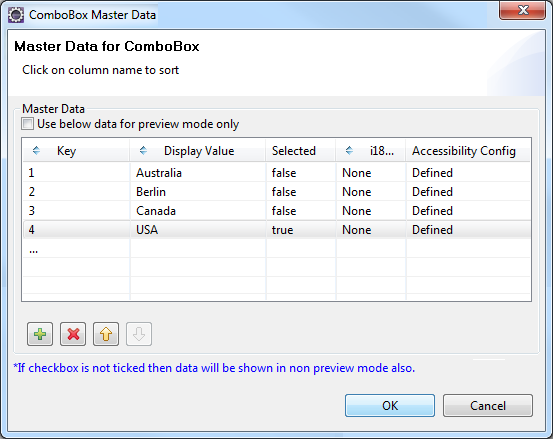

The following image illustrates the MasterData for ComboBox window:

Note: Select the Use as test data in preview mode option if you want to see the data you enter in the Master Data when you use the quick preview feature of the IDE. (For more information on Quick Preview, see the Kony Visualizer User Guide.

Note: The accessibilityConfigObject is optional and the object should contain the keys as defined in the accessibilityConfig property.

//Format of the masterData property

[
	["key1","value1",accessibilityConfigObject],
	["key2","value2",accessibilityConfigObject],
	["keyn","valuen",accessibilityConfigObject]
]

Example

//Sample code to set the masterData property for a ComboBox Widget.

frmCombobox.myCombobox.masterData = [
 ["A", "Asia", accessibilityConfigObject],
 ["E", "Europe", accessibilityConfigObject],
 ["AU", "Australia", accessibilityConfigObject],
 ["NA", "North America", accessibilityConfigObject]
];

Platform Availability

• Available in the IDE
• Available on all platforms

Specifies the set of values from which you can make a selection. You must set the values from the code.

Syntax

masterDataMap

Type

Array

Read/Write

Read + Write

Remarks

This is a non-Constructor property. You cannot set this property through widget constructor. But you can read and write data to it.

This property is applicable only if the masterData is not set. You must use either the masterData or the masterDataMap property to set data for the ComboBox.

You must specify a key, value, and the accessibilityConfig in a master data map.

//Format of the masterDataMap property
[
    [{
            "mykey": "item1",
            "myvalue": "Item One",
            "accessibilityConfig": acObject
        }, {
            "mykey": "item2",
            "myvalue": "Item Two",
            "accessibilityConfig": acObject
        }, ..., ["mykey": "itemn", "myvalue": "Item N", "accessibilityConfig": "acObject}
	],

	"
            mykey ",
	"
            myvalue "
]

Note: The accessibilityConfig is the standard key expected in each items data array. It is optional and the object should contain the keys as defined in the accessibilityConfig property.

Note: If the key or the value is null/nil, the value will not be listed as one of the available choices.

Example

//Sample code to set the masterDataMap property for a ComboBox Widget.

frmCombobox.myCombobox.masterDataMap = [
 [{
  "mykey": "key1",
  "myvalue": "value1",
  "accessibilityConfig": acObject
 }, {
  "mykey": "key2",
  "myvalue": "value2",
  "accessibilityConfig": acObject
 }, {
  "mykey": "key3",
  "myvalue": "value3",
  "accessibilityConfig": acObject
 }], "mykey", "myvalue"
];

Availability

• Not available in the IDE
• Available on all platforms

---

---

Specifies the opacity of the widget. The value of this property must be in the range 0.0 (transparent) to 1.0 (opaque). Any values outside this range are fixed to the nearest minimum or maximum value.

Specifies the opacity of the widget. Valid opacity values range from 0.0 (transparent), to 1.0 (opaque). Values set to less than zero will default to zero. Values more than 1.0 will default to 1. Interaction events set on a transparent widget will still be fired. To disable the events, also set the “isVisible” property to “false”.

Syntax

opacity

Type

Number

Read/Write

Read + Write

Remarks

Note: This property has more priority compared to the values coming from the configured skin.

Example

//Sample code to make the widget transparent by using the opacity property.
frmHome.widgetID.opacity = 0;

//Sample code to make the widget opaque by using the opacity property.
frmHome.widgetID.opacity = 1;

Platform Availability

• Not available in the IDE.
• iOS, Android, Windows, SPA, and Desktop Web

---

---

Helps you access the parent of the widget. If the widget is not part of the widget hierarchy, the parent property returns null.

Syntax

parent

Read/Write

Read only

Remarks

Note: The property works for all the widgets whether they are placed inside a FlexContainer, a Form, or an HBox.

Example

function func() {

    kony.print("The parent of the widget" + JSON.stringify(Form1.widgetID.parent));

}

Platform Availability

• Not available in the IDE
• iOS, Android, Windows, SPA, and Desktop Web

---

---

Specifies the temporary or substitute text (a hint provided as a word or phrase) that must be displayed on the ComboBox until the actual selection is made. If you do not specify the placeholder text, the first option in the list is shown as the selected value.

Syntax

placeholder

Type

String

Read/Write

Read + Write

Remarks

On iPhone platform, placeholder is supported only when the viewType is set as COMBOBOX_VIEW_TYPE_LISTVIEW.

Example

If you specify a value for the placeholder property and set selectedkey=nil or selectedkeyvalue=nil, then the specified placeholder is displayed to the user when the Combo Box is rendered.

//Sample code to set the placeholder property for a ComboBox Widget.

frmCombobox.myCombobox.placeholder= "Please select a value";

Platform Availability

• Available in the IDE
• iPad
• iPhone
• BlackBerry
• Windows Phone
• J2ME

---

---

Specifies the skin that is applied to each item in the native popup (list of options available) that appears when you select the ComboBox.

Syntax

popupFocusSkin

Type

String

Read/Write

Read + Write

Example

//Sample code to set the popupFocusSkin property for a ComboBox Widget.

frmCombobox.myCombobox.popupFocusSkin= "popFSkn";

Platform Availability

• Available in the IDE
• This property is available on BlackBerry platform only

---

---

Specifies the skin that is applied to each item in the native popup (list of options available) that appears when you select the ComboBox.

Syntax

popupSkin

Type

String

Read/Write

Read + Write

Example

//Sample code to set the popupSkin property for a ComboBox Widget.

frmCombobox.myCombobox.popupSkin= "popSkn";

Platform Availability

• Available in the IDE
• This property is available on BlackBerry platform only.

---

---

Specifies the title text to be displayed for the ComboBox.

Syntax

popupTitle

Type

String

Read/Write

Read + Write

Remarks

The default value for this property is Please Select.

Example

//Sample code to set the popupTitle property for a ComboBox Widget.

frmCombobox.myCombobox.popupTitle="ComboPopUp";

Platform Availability

• Available in the IDE.
• Android

---

---

This property is used to retain the content alignment property value, as it was defined.

Note: Locale-level configurations take priority when invalid values are given to this property, or if it is not defined.

The mirroring widget layout properties should be defined as follows.

function getIsFlexPositionalShouldMirror(widgetRetainFlexPositionPropertiesValue) {
    return (isI18nLayoutConfigEnabled &&
    localeLayoutConfig[defaultLocale]
    ["mirrorFlexPositionalProperties"] == true &&
    !widgetRetainFlexPositionPropertiesValue);
}

The following table illustrates how widgets consider Local flag and Widget flag values.

Properties	Local Flag Value	Widget Flag Value	Action
Mirror/retain FlexPositionProperties	true	true	Use the designed layout from widget for all locales. Widget layout overrides everything else.
Mirror/retain FlexPositionProperties	true	false	Use Mirror FlexPositionProperties since locale-level Mirror is true.
Mirror/retain FlexPositionProperties	true	not specified	Use Mirror FlexPositionProperties since locale-level Mirror is true.
Mirror/retain FlexPositionProperties	false	true	Use the designed layout from widget for all locales. Widget layout overrides everything else.
Mirror/retain FlexPositionProperties	false	false	Use the Design/Model-specific default layout.
Mirror/retain FlexPositionProperties	false	not specified	Use the Design/Model-specific default layout.
Mirror/retain FlexPositionProperties	not specified	true	Use the designed layout from widget for all locales. Widget layout overrides everything else.
Mirror/retain FlexPositionProperties	not specified	false	Use the Design/Model-specific default layout.
Mirror/retain FlexPositionProperties	not specified	not specified	Use the Design/Model-specific default layout.



Syntax

retainContentAlignment

Type

Boolean

Read/Write

No (only during widget-construction time)

Example

//This is a generic property that is applicable for various widgets.
//Here, we have shown how to use the retainContentAlignment property for Button widget.
/*You need to make a corresponding use of the
retainContentAlignment property for other applicable widgets.*/
var btn = new kony.ui.Button({
    "focusSkin": "defBtnFocus",
    "height": "50dp",
    "id": "myButton",
    "isVisible": true,
    "left": "0dp",
    "skin": "defBtnNormal",
    "text": "text always from top left",
    "top": "0dp",
    "width": "260dp",
    "zIndex": 1
}, {
    "contentAlignment": constants.CONTENT_ALIGN_TOP_LEFT,
    "displayText": true,
    "padding": [0, 0, 0, 0],
    "paddingInPixel": false,
    "retainFlexPositionProperties": false,
    "retainContentAlignment": true
}, {});

Platform Availability

• Available in IDE
• Windows 10, iOS, Android, and SPA

---

---

This property is used to retain flex positional property values as they were defined. The flex positional properties are left, right, and padding.

Note: Locale-level configurations take priority when invalid values are given to this property, or if it is not defined.

The mirroring widget layout properties should be defined as follows.

function getIsFlexPositionalShouldMirror(widgetRetainFlexPositionPropertiesValue) {
    return (isI18nLayoutConfigEnabled &&
    localeLayoutConfig[defaultLocale]
    ["mirrorFlexPositionalProperties"] == true &&
    !widgetRetainFlexPositionPropertiesValue);
}

The following table illustrates how widgets consider Local flag and Widget flag values.

Properties	Local Flag Value	Widget Flag Value	Action
Mirror/retain FlexPositionProperties	true	true	Use the designed layout from widget for all locales. Widget layout overrides everything else.
Mirror/retain FlexPositionProperties	true	false	Use Mirror FlexPositionProperties since locale-level Mirror is true.
Mirror/retain FlexPositionProperties	true	not specified	Use Mirror FlexPositionProperties since locale-level Mirror is true.
Mirror/retain FlexPositionProperties	false	true	Use the designed layout from widget for all locales. Widget layout overrides everything else.
Mirror/retain FlexPositionProperties	false	false	Use the Design/Model-specific default layout.
Mirror/retain FlexPositionProperties	false	not specified	Use the Design/Model-specific default layout.
Mirror/retain FlexPositionProperties	not specified	true	Use the designed layout from widget for all locales. Widget layout overrides everything else.
Mirror/retain FlexPositionProperties	not specified	false	Use the Design/Model-specific default layout.
Mirror/retain FlexPositionProperties	not specified	not specified	Use the Design/Model-specific default layout.



Syntax

retainFlexPositionProperties

Type

Boolean

Read/Write

No (only during widget-construction time)

Example

//This is a generic property that is applicable for various widgets.
//Here, we have shown how to use the retainFlexPositionProperties property for Button widget.
/*You need to make a corresponding use of the
retainFlexPositionProperties property for other applicable widgets.*/
var btn = new kony.ui.Button({
    "focusSkin": "defBtnFocus",
    "height": "50dp",
    "id": "myButton",
    "isVisible": true,
    "left": "0dp",
    "skin": "defBtnNormal",
    "text": "always left",
    "top": "0dp",
    "width": "260dp",
    "zIndex": 1
}, {
    "contentAlignment": constants.CONTENT_ALIGN_CENTER,
    "displayText": true,
    "padding": [0, 0, 0, 0],
    "paddingInPixel": false,
    "retainFlexPositionProperties": true,
    "retainContentAlignment": false
}, {});

Platform Availability

• Available in IDE
• Windows 10, iOS, Android, and SPA

---

---

This property is used to convert Flow Horizontal Left to Flow Horizontal Right.

Note: Locale-level configurations take priority when invalid values are given to this property, or if it is not defined.

The mirroring widget layout properties should be defined as follows.

function getIsFlexPositionalShouldMirror(widgetRetainFlexPositionPropertiesValue) {
    return (isI18nLayoutConfigEnabled &&
    localeLayoutConfig[defaultLocale]
    ["mirrorFlexPositionalProperties"] == true &&
    !widgetRetainFlexPositionPropertiesValue);
}

The following table illustrates how widgets consider Local flag and Widget flag values.

Properties	Local Flag Value	Widget Flag Value	Action
Mirror/retain FlexPositionProperties	true	true	Use the designed layout from widget for all locales. Widget layout overrides everything else.
Mirror/retain FlexPositionProperties	true	false	Use Mirror FlexPositionProperties since locale-level Mirror is true.
Mirror/retain FlexPositionProperties	true	not specified	Use Mirror FlexPositionProperties since locale-level Mirror is true.
Mirror/retain FlexPositionProperties	false	true	Use the designed layout from widget for all locales. Widget layout overrides everything else.
Mirror/retain FlexPositionProperties	false	false	Use the Design/Model-specific default layout.
Mirror/retain FlexPositionProperties	false	not specified	Use the Design/Model-specific default layout.
Mirror/retain FlexPositionProperties	not specified	true	Use the designed layout from widget for all locales. Widget layout overrides everything else.
Mirror/retain FlexPositionProperties	not specified	false	Use the Design/Model-specific default layout.
Mirror/retain FlexPositionProperties	not specified	not specified	Use the Design/Model-specific default layout.



Syntax

retainFlowHorizontalAlignment

Type

Boolean

Read/Write

No (only during widget-construction time)

Example

//This is a generic property that is applicable for various widgets.
//Here, we have shown how to use the retainFlowHorizontalAlignment property for Button widget.
/*You need to make a corresponding use of the
retainFlowHorizontalAlignment property for other applicable widgets. */
var btn = new kony.ui.Button({
 "focusSkin": "defBtnFocus",
 "height": "50dp",
 "id": "myButton",
 "isVisible": true,
 "left": "0dp",
 "skin": "defBtnNormal",
 "text": "always left",
 "top": "0dp",
 "width": "260dp",
 "zIndex": 1
}, {
 "contentAlignment": constants.CONTENT_ALIGN_CENTER,
 "displayText": true,
 "padding": [0, 0, 0, 0],
 "paddingInPixel": false,
 "retainFlexPositionProperties": true,
 "retainContentAlignment": false,
 "retainFlowHorizontalAlignment ": false
}, {});

Platform Availability

• Available in IDE
• Windows 10, iOS, Android, and SPA

---

---

Specifies the value to be shown as selected. If you do not select a value, the return value is null/nil.

Syntax

selectedKey

Type

String

Read/Write

Read + Write

Remarks

On Android platform, if you do not select a value, the first item in the ComboBox is selected.

If you create a ComboBox with multiple values, you can choose to show a specific value as selected when the ComboBox is rendered.

Example

//Sample code to set the selectedKey property for a ComboBox Widget with the key:key1.

frmCombobox.myCombobox.selectedKey="key1";
//Sample code to read the selectedKey property of the ComboBox widget.
alert("ComboBox selectedKey is ::" + frmCombobox.myCombobox.selectedKey);

Availability

• Not available in the IDE
• Available on all platforms.

---

---

Returns the array of selected key-value pair. If you do not select a value, the return value is null/nil.

Syntax

selectedKeyValue

Type

Array

Read/Write

Read + Write

Example

//Sample code to set the selectedKeyValue property for a ComboBox Widget.

frmCombobox.myCombobox.selectedKeyValue = [
 ["key1", "value1"],
 ["key2", "value2"]
];
//Sample code to read the selectedKey property of the ComboBox widget.
alert("ComboBox selectedKey is ::" + frmCombobox.myCombobox.selectedKeyValue);

Availability

Not available in the IDE.

• Not available in the IDE
• Available on all platforms.

---

---

This property provides you to show or hide the app menu when the dialog is open.

Syntax

showAppMenu

Type

Boolean

Read/Write

Read + Write

Remarks

The default value for this property true.

When this property is set to true, the app menu is visible.

When this property is set to false, the app menu is hidden.

Example

//Sample code to enable the showAppMenu property for a ComboBox Widget.

frmCombobox.myCombobox.showAppMenu=true;

Platform Availability

• Not available in the IDE
• This property is available on Windows 8.1 platform only.

---

---

If the length of the text is more than the space available, the selected options text will be displayed truncated, in a single line with (...) ellipses. The position of the ellipses is controlled by textTruncatePosition property. The default ellipses position is at the end of the line if textTruncatePosition property is not set.

Syntax

singleLineText

Type

Boolean

Read/Write

Read + Write

Remarks

The default value for this property is false.

Example

//Sample code to enable the singleLineText property for a ComboBox Widget.

frmCombobox.myCombobox.singleLineText=true;

Platform Availability

• Not available in the IDE
• This property is available on Android/Android Tablet platform

---

---

If the length of the text is more than the space available, the popup options text will be displayed truncated, in a single line with (...) ellipses. The position of the ellipses is controlled by textTruncatePositionInPopup property. The default ellipses position is at the end of the line if textTruncatePositionInPopup property is not set.

Syntax

singleLineTextInPopup

Type

Boolean

Read/Write

Read + Write

Remarks

The default value for this property false.

Example

//Sample code to enable the singleLineTextInPopup property for a ComboBox Widget.

frmCombobox.myCombobox.singleLineTextInPopup=true;

Platform Availability

• Not available in the IDE
• This property is available on Android/Android Tablet platform

---

---

Specifies the look and feel of the ComboBox when not in focus.

Syntax

skin

Type

String

Read/Write

Read + Write

Remarks

In Desktop Web platform, Chrome browser does not support if the properties defined in font tab are different for skin and focusSkin.

In Android platform, you can apply skin only to the dropdown list that displays when ComboBox is clicked.

Example

//Sample code to set the skin property for a ComboBox Widget.

frmCombobox.myCombobox.skin="comboSkin";

Platform Availability

• Available in the IDE
• Available on all platforms

---

---

When the property singleLineText is set to true, this property controls the position of the ellipses (...), in the selected option text.

Syntax

textTruncatePosition

Type

Number

Read/Write

Read + Write

Remarks

The options are:

• constants.TEXT_TRUNCATE_START
• constants.TEXT_TRUNCATE_MIDDLE
• constants.TEXT_TRUNCATE_END (Default)

Example

/*Sample code to set the textTruncatePosition property for a ComboBox Widget to TEXT_TRUNCATE_MIDDLE.*/

frmCombobox.myCombobox.textTruncatePosition=constants.TEXT_TRUNCATE_MIDDLE;

Platform Availability

• Not available in the IDE
• This property is available on Android/Android Tablet platform

---

---

When the property singleLineTextInPopup is set to true, this property controls the position of the ellipses (...), in the popup options text.

Syntax

textTruncatePositionInPopup

Type

Number

Read/Write

Read + Write

Remarks

The options are:

• constants.TEXT_TRUNCATE_START
• constants.TEXT_TRUNCATE_MIDDLE
• constants.TEXT_TRUNCATE_END (Default)

Example

/*Sample code to set the textTruncatePositionInPopup property for a ComboBox Widget to TEXT_TRUNCATE_MIDDLE.*/

frmCombobox.myCombobox.textTruncatePositionInPopup=constants.TEXT_TRUNCATE_MIDDLE;

Platform Availability

• Not available in the IDE
• This property is available on Android/Android Tablet platform.

---

---

Specifies the image to be displayed when you make a selection.

Syntax

tickedImage

Type

String

Read/Write

No

Remarks

If you specify a tickedImage, ensure that you also specify an unTickedImage. If not specified, the behavior will be undefined.

Example

/*Sample code to set the tickedImage property for a ComboBox Widget with "tickedImg.png".*/

frmCombobox.myCombobox.tickedImage="tickedImg.png";

Platform Availability

• Available in the IDE
• iPad
• iPhone

---

---

Specifies the hint text when the cursor hovers over a widget, without clicking it. The text entered in the tooltip appears as a small box when the cursor hovers over a widget.

Syntax

toolTip

Type

String

Read/Write

Read + Write

Example

//Sample code to set the toolTip property for a ComboBox Widget.

frmCombobox.myCombobox.toolTip="Sample text";

Platform Availability

• Available in the IDE
• This property is available on Windows Tablet

---

---

Contains an animation transformation that can be used to animate the widget.

Syntax

transform

Type

JSObject

Read/Write

Read + Write

Remarks

This property is set to the identify transform by default. Any transformations applied to the widget occur relative to the widget's anchor point. The transformation contained in this property must be created using the kony.ui.makeAffineTransform function.

Example

This example uses the button widget, but the principle remains the same for all widgets that have a transform property.

//Animation sample
var newTransform = kony.ui.makeAffineTransform();
newTransform.translate3D(223, 12, 56);

//translates by 223 xAxis,12 in yAxis,56 in zAxis
widget.transform = newTransform;

Platform Availability

• iOS, Android, Windows, and SPA

---

---

Specifies the image to be displayed when a selection is cleared.

Syntax

unTickedImage

Type

String

Read/Write

No

Remarks

If you specify an unTickedImage, ensure that you also specify a tickedImage. If not specified, the behavior will be undefined.

Example

//Sample code to set the unTickedImage property for a ComboBox Widget.

frmCombobox.myCombobox.unTickedImage="unTickedImg.png";

Platform Availability

• Available in the IDE
• iPad
• iPhone

---

---

Specifies the view configuration for different viewtypes.

Syntax

viewConfig

Type

JSObject

Read/Write

Read + Write

Remarks

You can set the configuration for toggle view.

toggleViewConfig: The property to configure the properties of COMBOBOX_VIEW_TYPE_TOGGLEVIEW.

viewStyle: Accepts the view style. This property is not supported in iOS7 and above versions. Following are the available options:

• COMBOBOX_TOGGLE_VIEW_STYLE_PLAIN
• COMBOBOX_TOGGLE_VIEW_STYLE_BORDERED
• COMBOBOX_TOGGLE_VIEW_STYLE_BAR

equalSegments: Specifies the boolean value which indicates if the segments must be equal.

enableTint: Specifies the boolean value to enable tintColor property. When this property is set to true, tintColor property is displayed.

tintColor: Specifies the tint color in RGB format. The default color is blue.

Note: Below are the view configuration properties in Desktop Web when the viewType is set as COMBOBOX_VIEW_TYPE_EDITVIEW.

autoSuggest: Enables the users to quickly find and select from a pre-populated list of values as they type, leveraging searching and filtering.

Type: Boolean

Default:false

editableAreaSkin: This property is displayed only when the autoSuggest is set to true. This property specifies the skin to be applied to the editor area of the ComboBox.

Type: String

Example

/*Sample code to set the viewConfig property for a ComboBox Widget when the viewType property is set as COMBOBOX_VIEW_TYPE_EDITVIEW.*/

frmCombobox.myCombobox.viewConfig = {
 autoSuggest: true,
 editableAreaSkin: "editareaskin"
};

Platform Availability

• Available in the IDE
• iPad
• iPhone

---

---

Specifies the view mode of the ComboBox.

Syntax

viewType

Type

Number

Read/Write

Read + Write

Remarks

The default option for this property is COMBOBOX_VIEW_TYPE_LISTVIEW.

In the Desktop Web platform, if the viewType is set as COMBOBOX_VIEW_TYPE_EDITVIEW, then autoSuggest property is displayed.

Following are the available options on different platforms:

• COMBOBOX_VIEW_TYPE_LISTVIEW (applicable on all platforms)
• COMBOBOX_VIEW_TYPE_EDITVIEW (applicable on Desktop Web only)
• COMBOBOX_VIEW_TYPE_TABLEVIEW (applicable on iPhone and iPad platforms)
• COMBOBOX_VIEW_TYPE_TOGGLEVIEW (applicable on iPhone and iPad platforms)
• COMBOBOX_VIEW_TYPE_ONSCREENWHEEL (applicable on iPhone and iPad platforms)
• COMBOBOX_VIEW_TYPE_SPINNER (applicable on Android/Android Tablet only)

For toggleView you can further select the View Style as plain, bordered, or bar.

The following images illustrate the modes:

listView

Note: If you select the listView and do not specify a selection in the masterData, the default behavior of the platform is to select the first entry on the list.

tableView

toggleView

onscreenwheel

The below image illustrate the nextprevtoolbar set to a Combo Box. The highlighted toolbar is achieved on setting the Mode as onscreenwheel to the Combo Box and Input Accessory View Type as nextprevtoolbar to the Form.

Example

//Sample code to set the viewType property for a ComboBox Widget as Editview.

frmCombobox.myCombobox.viewType=constants.COMBOBOX_VIEW_TYPE_EDITVIEW;

Platform Availability

• Available in the IDE
• iPad
• iPhone
• Android/Android Tablet ( only Spinner view is available for the platform)
• Windows Tablet

---

---

Specifies the background color for the wheel that is displayed when you click the ComboBox. This property is applicable only when you set the viewType as COMBOBOX_VIEW_TYPE_ONSCREENWHEEL.

Syntax

wheelBackgroundColor

Type

JSObject

Read/Write

Read + Write

Example

//Sample code to set the wheelBackgroundColor property for a ComboBox Widget.

frmCombobox.myCombobox.wheelBackgroundColor="0000ff00";

Platform Availability

• Not available in the IDE
• iPad
• iPhone

---

This property is used to enable and configure left or right swipe actions for a widget. The widgetSwipeMove Property can be used for all widgets . The most common use case is for implementing swipe action for individual rows in Segment.

Syntax

widgetSwipeMove

Type

String

Read/Write

Read + Write

Input Parameters

Parameter Name	Type	Default Value	Description
translate	Boolean	true	This is an optional parameter. When the value of this parameter is set as true, the widget moves along with the swipe in the same direction.
Xboundaries	Array	Size of the current widget	This is an optional parameter and it defines the boundaries of the swipe in the X-axis.
swipeLeft/swipeRight	JS Object		This is an optional parameter and it is used to define the configuration of the widget while swiping to the left/ right. Each swipeLeft or swipeRightparameter is an array of configuration attributes containing translateRange , callback , translatePos , and translate. This JS Object defines the behavior of the widget during the swipe action.
translateRange	Array	Size of the current widget	This is an optional parameter and it defines the sub-boundaries for the action when the swipe action ends.
translatePos	Array	Previous position of the widget	This is an optional parameter and it determines the final translation position to be applied to the widget when the widget swipe reaches the translateRange value.
callback	JS Object	null	This is an optional parameter and it defines the callback which needs to be triggered when the finger swipe reaches the sub boundary defined in translateRange. The attributes inside this parameter are described in the following table.



The following table consists of the parameters of the callback parameter:

Parameter Name	Type	Description
widgetHandle		This parameter consists of the widget handle or ID of the widget on which the swipe action has been performed.
context	JS Object	This is applicable only for widgets inside the Segment with row templates. Each context parameter consists of rowIndex, sectionIndex and widgetref
rowIndex	Number	This parameter stores the row index of the Segment containing the swiped widget.
sectionIndex	Number	This parameter stores the section index of the Segment containing the swiped widget.
widgetref	widgetHandle	This parameter stores the handle of the Segment containing the swiped widget.



Remarks

• For a Segment, the widgetSwipeMove Property is configured while setting the data of the Segment.

Note: It is not recommended to assign the widgetSwipeMove property on a top Flex container of the segment template widget.

Limitations

• When a translation animation is applied to the same widget that has widgetSwipeMove already configured, the action which has been performed last takes precedence. For example, if you have set a translation animation on a FlexContainer and then set the widgetSwipeMove property, the actions set in widgetSwipeMove take precedence over the translation animation.
• The state of the swipe transition of the widget is not retained.
• In a Segment, the widgetSwipeMove Property must be configured for the rows so that they reset to the previous position.

• If the widgetSwipeMove property is configured on a top level Flex container of a segment template, the onRowClick event will not be triggered. - Applicable on iOS, Android, and SPA.
• Android limitation: On Android devices, when the user lifts their finger, the transition occurs immediately.

Example

Following is a code snippet for a mail app. Here we have used a Segment for listing the mail and the widgetSwipeMove Property has been configured for the SwipeFlex FlexContainer.

//This is a generic property that is applicable for various widgets.
//Here, we have shown how to use the widetSwipeMove property for Button widget.
/*You need to make a corresponding use of the
widgetSwipeMove property for other applicable widgets.*/
//Example of a swipe move configuration.

var swipeMoveConfig = {
 "translate": true,
 "Xboundaries": ["-60%", "60%"],
 "swipeLeft": [{
  "translateRange": ["-60%", "0%"],
  "callback": null,
  "translatePos": "-60%",
  "translate": true
 }, {
  "translateRange": ["0%", "60%"],
  "callback": null,
  "translatePos": "0%",
  "translate": true
 }],
 "swipeRight": [{
  "translateRange": ["-60%", "0%"],
  "callback": null,
  "translatePos": "0%",
  "translate": true
 }, {
  "translateRange": ["0%", "60%"],
  "callback": this.onCallback1,
  "translatePos": "60%",
  "translate": true
 }]
};

this.view.myButton.widgetSwipeMove=swipeMoveConfig;

Platform Availability

• Android, iOS, and SPA

---
