Invoke Sublime Text from Kony Visualizer

From V8 SP4 onwards, you can invoke the latest version of Sublime Text (a third-party source code editor) from within Kony Visualizer. This feature ensures that developers have the option to use an alternative tool to write and modify code within Visualizer, in addition to Visualizer's in-built code editor. You can also make use of the auto-complete Intellisense feature for Kony UI, API, and SDK functions while working with Sublime Text.

Sublime Text is a proprietary cross-platform source code editor with a Python API. This source code editor natively supports various programming and markup languages. You can use Sublime Text to add functions with plugins, which are typically community-built and maintained under free-software licenses.

Prerequisites

Before you can start using Sublime Text from Visualizer, you must meet the following prerequisites:

• Use Kony Visualizer V8 SP4
• Install the latest version of Sublime Text
• Install Package Control
• Install Ternjs for Sublime Text (to add Intellisense for Kony APIs)

Enable Sublime Text

After you have met the prerequisites mentioned previously, you must enable the feature to invoke Sublime Text from Visualizer.

Note: By default, Visualizer will recognize Sublime Text if it is installed at a default location.

For Kony Visualizer Enterprise

To enable the feature for Kony Visualizer Enterprise, follow these steps:

1. In Kony Visualizer Enterprise, do the following:
   • For Windows: On the main menu, click Window and then click Preferences.
   • For Mac: On the main menu, click Kony Visualizer and then click Preferences.

   The Preferences window appears.

2. From the left pane, expand Kony Visualizer and click Code Editor. The Code Editor section appears.
3. Under the Sublime section, click Browse and select the absolute file path where you installed Sublime Text in your local system.
   For example, C:\Program Files\Sublime Text 3\sublime_text.exe.
   For more information, click the Using Sublime Text with Visualizer link. You will be navigated to the Kony Basecamp article on using Sublime Text.


4. Click OK. The Sublime Text feature is enabled.

For Kony Visualizer

To enable the feature for Kony Visualizer, follow these steps:

1. In Kony Visualizer, do the following:
   • For Windows: On the main menu, click Edit and then click Preferences.
   • For Mac: On the main menu, click Kony Visualizer and then click Preferences.

   The Visualizer Preferences window appears.


2. From the left pane, click Code Editor. The Code Editor section appears.
3. Under the Sublime section, click Browse and select the absolute file path where you installed Sublime Text in your local system.
   For example, C:\Program Files\Sublime Text 3\sublime_text.exe.
   For more information, click the Using Sublime Text with Visualizer link. You will be navigated to the Kony Basecamp article on using Sublime Text.


4. Click Done. The Sublime Text feature is enabled.

Open a JavaScript File with Sublime Text

Now that you have enabled the required option, you can open any JavaScript file in Sublime Text from Visualizer.

To do so, follow these steps:

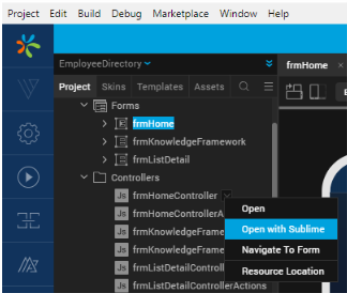

1. In your Kony Visualizer project, in the Project Explorer, right-click a JavaScript file/folder. A context menu appears.


2. Click Open with Sublime. The Sublime Text source code editor appears with the code snippet of that particular JavaScript file/folder.



You can make any changes to the code in any JavaScript file/folder by using Sublime Text.

Add Intellisense for Kony APIs

You can add the auto-complete Intellisense feature for Kony UI, API, and SDK functions while working with Sublime Text from Visualizer. You must install the Ternjs for Sublime package to enable this feature. Ternjs is a package for Sublime Text that provides JavaScript auto-fill intelligence.

To install Ternjs, follow these steps:

1. Install the Ternjs for Sublime package from GitHub.

2. Check out the following code into a sub-directory of your Sublime Text's Packages directory.

cd /path/to/sublime-text-N/Packages
git clone https://github.com/ternjs/tern_for_sublime.git

3. Ensure that you have installed node.js and npm (Tern is a JavaScript program), and then install the dependencies of the package.

cd tern_for_sublime
npm install

Note: On OS X, you might also need to install the Fix Mac Path Sublime plugin to help Sublime Text to locate your node binary.

Once you successfully install the Ternjs for Sublime package, the Kony JavaScript auto-complete feature appears as you start typing in the Sublime Text editor.

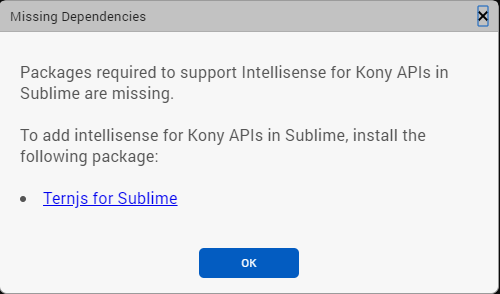

Note: If you have not installed the Ternjs for Sublime package, the Missing Dependencies window appears asking you to install that package.
