Kony Fabric console User Guide: Integration > Configure the Integration Service > Kony Customer 360

Kony Customer 360 Adapter

Kony Customer 360 Adapter is an identity connector that you can use in the Kony DBX application suite. This adapter supports multi-factor authentication (MFA) (if enabled), and it fetches profile and security attributes of users from the configured DBX server.

To configure an Identity service by using Kony Customer 360 adapter, follow these steps:

  1. On the Identity service Design screen, in the Name box, type a name for the service.

  2. From the Type of Identity list, select Kony Customer 360.

  3. In the Kony Customer 360 Identity Service Endpoint box, type the URL to which the Identity service must navigate to get the meta data.

  4. The Enable MFA check box is selected by default. This helps you in the test login flow to test the status of the short-lived known_user token (whether it is issued or not). This setting has no impact on the DBX server, as the server's adaptive algorithm decides the MFA status, and then responds accordingly in the login flow.

  5. In the Pre-MFA Token Timeout (in Minutes) box, type the required value. It determines the timeout value for the short-lived known_user token.

  6. In the Provider Settings (Optional) section, do the following:

    • In the Enter Parameter Key box, type the parameter that you want to configure as an additional attribute. For example, <Backend-config-key>.

    • In the Enter Parameter Valuebox, type the necessary parameter value. For example, <backend-config-key-value>.

  7. In the Provider Headers (Optional) section, type the header parameters from the login request.

  8. In Advanced > Post Authentication URL, type the URL that you want to invoke after an Identity session is created. After this URL is invoked, the Identity response is returned to the client.

  9. Click Test Login to verify the credentials. The Test Login dialog box appears.

    • Type the required details in the Header and Body boxes for the custom Identity provider.

    • The entries for the Header and Body boxes are auto-inserted to the login request. You can delete an entry by clicking the Delete beside it.

    • Click Sign In. The test results are displayed in the Identity Response dialog.

  10. Click Save. Kony Fabric displays the Identity screen, and the custom Identity service is configured.

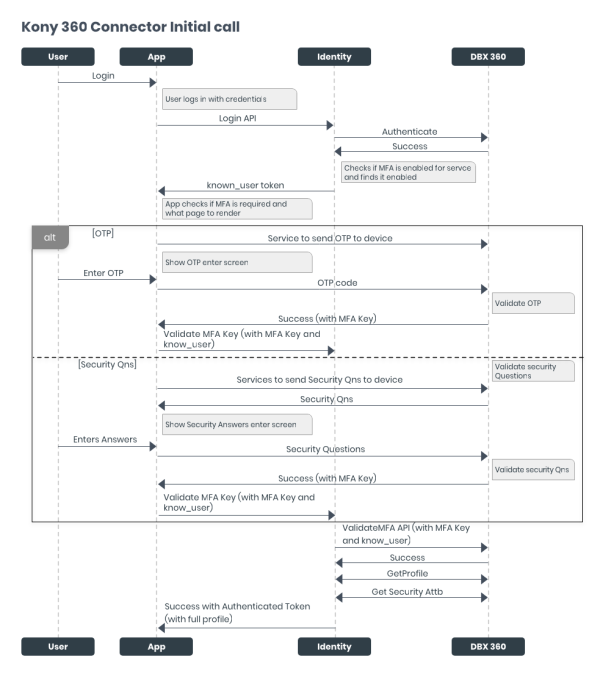

Initial Call Process by using Kony Customer 360 Adapter

When a user signs in to the DBX application for the first time, the following calls occur among the DBX app, Identity service, and DBX server:

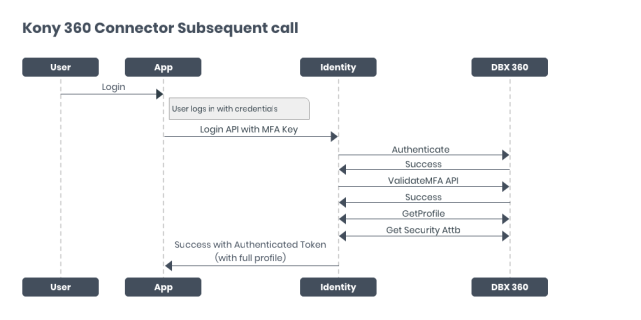

Subsequent Call Process by using Kony Customer 360 Connector

On subsequent logins, the following calls occur among the DBX app, Identity service, and DBX server:

Important: This document contains the information about the intended implementation for the connector. As the actual implementation can vary, kindly refer the DBX documentation (DBX > Digital Banking Platform > Feature Description and Specification - Digital Banking Platform > Infrastructure Services > Local Services > Local Services - API Reference > Login Local Services > dbxUserLogin (Orchestration Service)) to know the actual implementation.

SDKs

Note: These APIs are valid from V8 SP4 Fix Pack 14 onwards.

getMfaDetails

The getMfaDetails function helps you to identify whether multi factor authentication (MFA) is enabled or disabled in the Identity service. If MFA is enabled, this function also lets you know the type of MFA that is active.

Signature

<IdentityObj>.getMfaDetails()

Parameters

None

Return Type

JSON - containing enablement flag and metadata

Example

var serviceName = "identity_service_name";
// Get an instance of SDK
var client = kony.sdk.getCurrentInstance();
var identitySvc = client.getIdentityService(serviceName);
var mfaDetails = idenidentitySvc.getMfaDetails();
if(mfaDetails["is_mfa_enabled"] == true){
     kony.print(“mfa is enabled and mfa meta information is -“+JSON.stringify(mfaDetails["mfa_meta"]));
}

validateMfa

The validateMfa function validates the MFA parameters. On successful validation, this function allows you to access the client use cases that were restricted which were restricted by multi-factor authentication.

Signature

< IdentityObj >.validateMfa(mfaParams , successCallback, errorCallback)

Parameters

Parameter Type Description Required
mfaParams JSON

These parameters must match with the getMfaDetails() response parameters.

 Yes
successCallback Function This function is invoked on successful MFA validation. Yes
errorCallback Function This function is invoked when there is an error while MFA validation with the cause of failure as an argument. Yes

Return Type

None

Example


var serviceName = "identity_service_name";
// Get an instance of SDK
var client = kony.sdk.getCurrentInstance();
var identitySvc = client.getIdentityService(serviceName);
var mfaParams = {"mfa_Key" : "mfa value"};
function successCallback(){
  kony.print("validation successful");
}
function errorCallback(err){
  kony.print("validation unsuccessful with error - "+ JSON.stringify(err));
}
idenidentitySvc.validateMfa(mfaParams , successCallback, errorCallback);
