Kony Fabric console User Guide: How to Add an Environment

Environments - On-Premises

You need to create an environment to publish your apps. Environments can include at least one server or a combination of all servers, such as Kony Fabric Integration, Kony Fabric Engagement, Kony Fabric Sync, and Kony Fabric Management.

Important: As a user, you must be an admin or owner to access the Environments page and perform different tasks based on your role.

Important: Ensure that your environments include all required servers that are part of an app.

For example, if your environment contains only Kony Fabric Sync, and you try to publish an app with Kony Fabric Engagement, the system throws an error.

How to Add an Environment

You can add environments with different combinations of servers.

To add an environment, follow these steps:

In your Kony Fabric account, in the left-pane, click Environments. The Environments page appears.

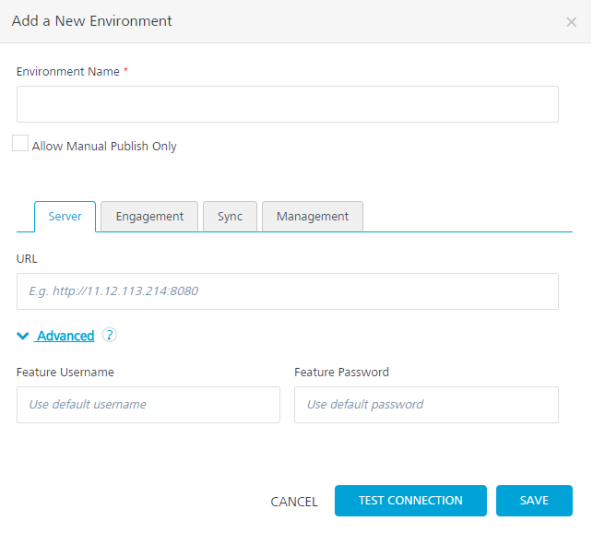

Click the ADD NEW button. The Add a New Environment dialog appears.
In the Environment Name text box, enter an environment name.
Note: Your Environment name can only contain letters, numbers, and hyphens (-). A hyphen cannot appear at the beginning or at the end of a name. A number cannot appear at the beginning of a name. A name should be a minimum of three characters and a maximum of 20 characters long.
Select the Allow Manual Publish Only check box for not publishing the .war file if you have uploaded it for Web platform under the Manage Client App Assets tab. By default, the Allow Manual Publish Only check box is cleared.
In the services section, follow these steps.
The Add a New Environment dialog contains the Server, Engagement, Sync, and Management tabs. The input values are URL, username, and password. By default, the system will display the Server tab.
1. In the Server tab, provide the following details:
  - URL: Enter the URL for your Kony Fabric Integration.
    The URL format is: <http or https>://<server_host>:<server_port>
    For example, a sample URL: http://mbaastest30.konylabs.net:53504
  - Under Advanced:
    - Feature Username: By default, this field shows the default username of Kony Fabric Integration. You can modify the username, if required.
    - Feature Password: By default, this field shows the default password of Kony Fabric Integration. You can modify the password, if required.
  Note: You need to modify the username and password only if these credentials are changed via Kony Fabric Server Console.
Click here to configure other environments such as Engagement, Sync, or Management.
Once you enter details, click TEST CONNECTION.

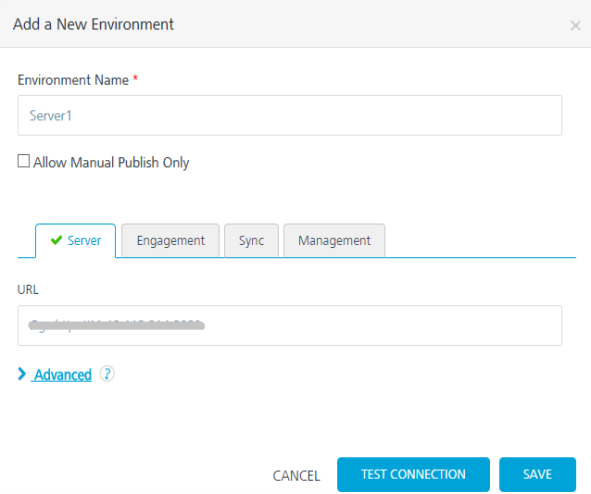

If the server details are correct, the system displays a check mark next to a service, shown below:
Important: The system allows you to add a unique server URL to only one environment.
If a server is already configured with an environment and you try to add the same server to another environment, the system will throw an error, shown below:

Click OK to confirm.

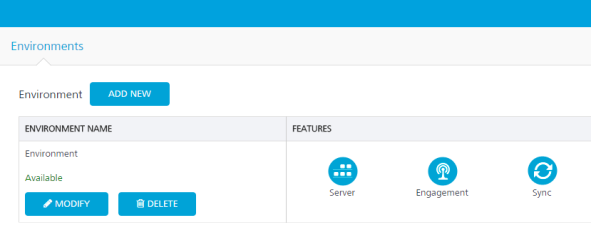

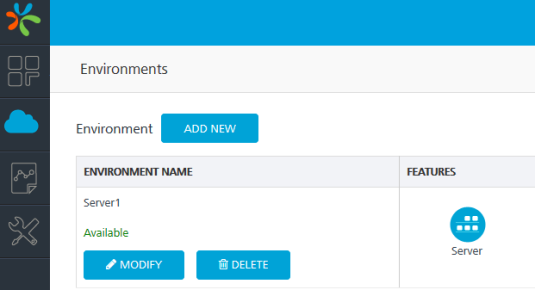

Click SAVE to apply the environment capabilities. The environment is created in the Environments page.
The Environment list view displays the following columns:
- Environment Name: Displays the name of the environments.
- Administration: Displays servers configured for an environment such as Kony Fabric Integration, Kony Fabric Engagement, Kony Fabric Sync, and Kony Fabric Management.

How to Modify an Environment

The Kony Fabric Console allows you to view as well as add servers to an environment.

To modify an environment, follow these steps:

In your Kony Fabric account, click Environments. The Environments page appears.
Click MODIFY for an environment.
The Modify Environment page appears, shown below:
You cannot edit the Environment Name and URL fields.
You can modify the environment, if required. Select the Allow Manual Publish Only check box for not publishing the .war file if you have uploaded it for Web platform under the Manage Client App Assets tab.
Click other tabs to add servers.
Click TEST CONNECTION to validate the details.
Click SAVE.

Note: You can view all the applications published to a Runtime Environment. Refer to Applications Published to a Runtime Environment.

How to Delete an Environment

When an environment is deleted, the system deletes the environment and its data from the console.

In your Kony Fabric account, click Environments. The Environments page appears.
In the Environment Name column, select an environment, and then click DELETE.
The Delete confirmation dialog appears, shown below:
Note: The DELETE button dims when you have not selected any check boxes for an environment. When you select a check box for an environment, only then the DELETE button is available.
Select the check box for each of the listed environments and click DELETE.
The system deletes the environment from the grid. If you delete this environment, all apps published to the environment may be lost forever. This may also include apps published before Kony Fabric registration.
Note: You can view all the applications published to a Runtime Environment. Refer to Applications Published to a Runtime Environment.
